Connecting Antennas; Fm Indoor Antenna - Teac T-R670 Mode D'emploi

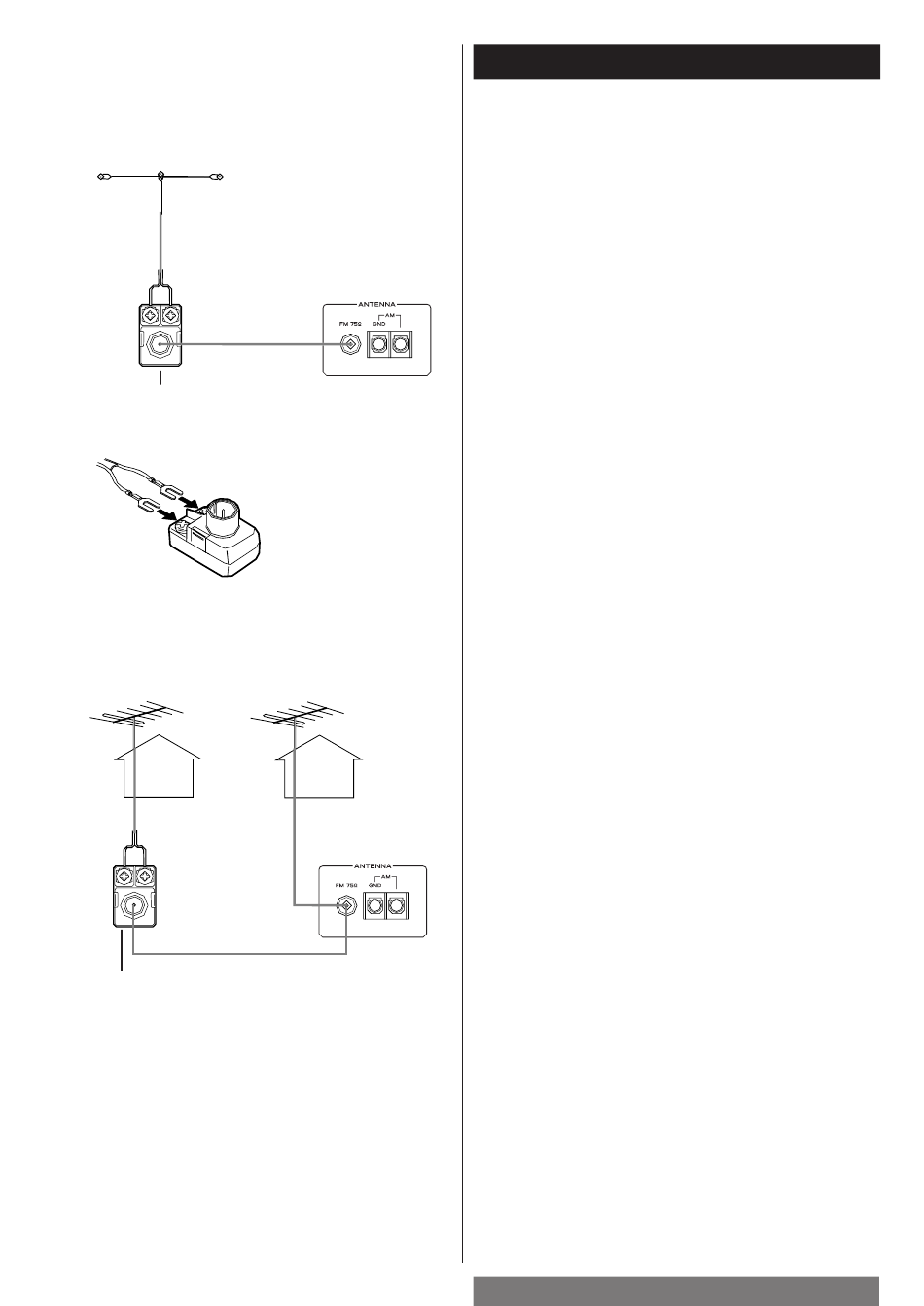

"T"-type FM Antenna (300Ω)(provided)
Antenne FM type "T" (300Ω) (fournie)
Antena FM tipo "T" (300Ω) (incluida)
Matching Transformer(provided)
Transformateur d'adaptation (fournie)
Transformador de adaptación (incluido)
Outdoor FM Antenna (300Ω)
Antenne FM extérieure (300Ω)
Antena Externa de FM (300Ω)
Matching Transformer(provided)
Transformateur d'adaptation (fournie)
Transformador de adaptación (incluido)
8
Outdoor FM Antenna (75Ω)
Antenne FM extérieure (75Ω)
Antena Externa de FM (75Ω)

Connecting Antennas (1)

FM Indoor Antenna

In an area with strong FM signals, the "T"-type FM antenna
provided is sufficient.
Extend this into a "T" shape and connect the two wires at the
base of the "T" to the provided matching transformer, as shown.
After completing connection, plug the transformer into the "FM
75Ω" socket. Extend the top of the "T" and fix with thumb tacks, or
the like, to a wall or window frame for the best possible
reception.
FM Outdoor Antenna
In an area where FM signals are weak, it will be necessary to
use an outdoor antenna with 3 or more elements. If you are using
a 300-ohm antenna, connect it to the tuner via the supplied
matching transformer. (No need for it in connecting a 75-ohm
antenna.)
