2.4 Weight and Dimensions

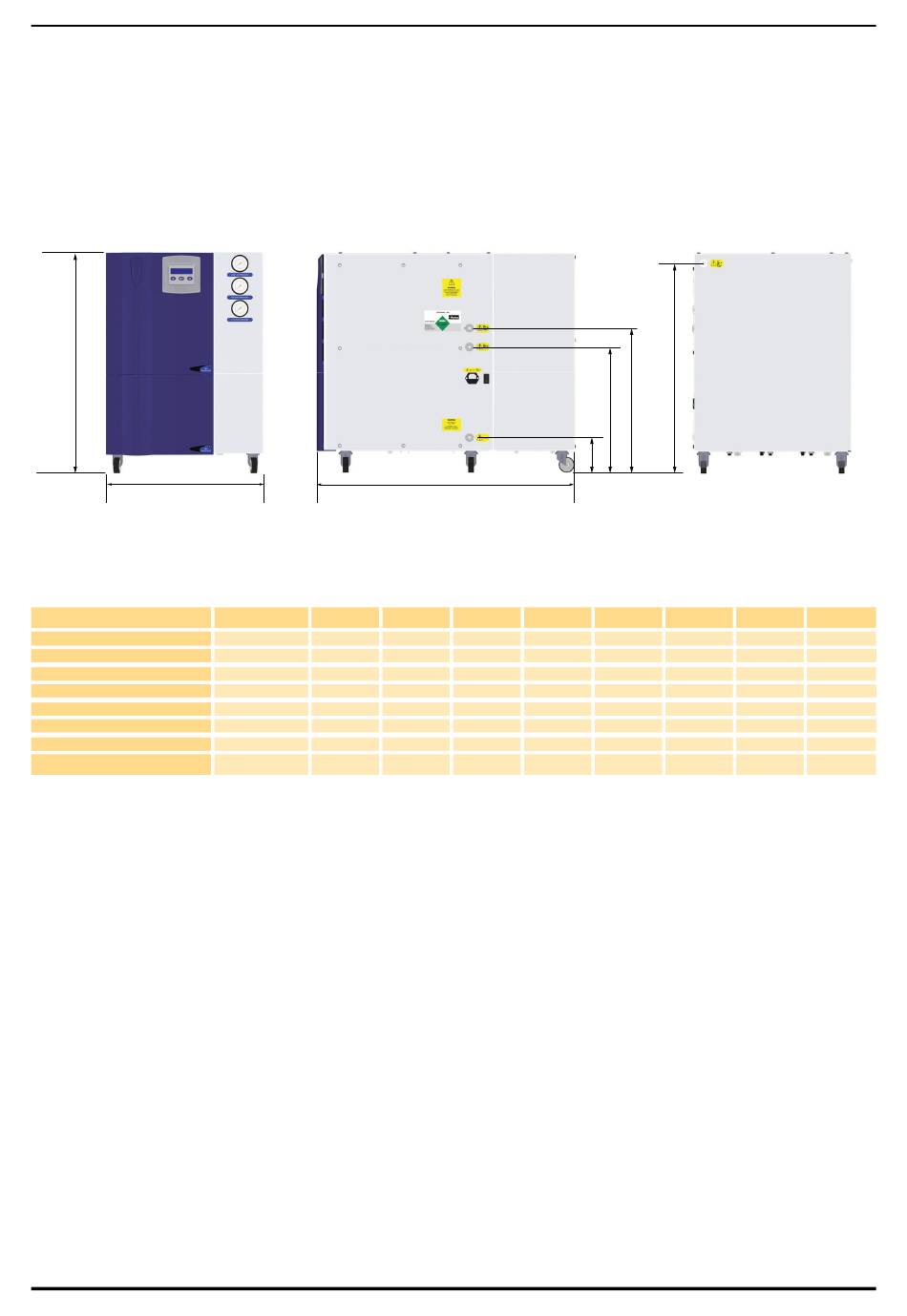

The dimensions and weight of the equipment are specified below.
H
W
Dimension
H
W
D
(a)
(b)
(c)
(d)
Weight
Units LCMS15-0 LCMS15-1
mm (in) 705 (27.8) 705 (27.8)
mm (in) 510 (20.1) 510 (20.1)
mm (in) 559 (22.0) 826 (32.5)
mm (in) 112 (4.4) 112 (4.4)
mm (in) 402 (15.8) 402 (15.8)
mm (in) 462 (18.2) 462 (18.2)
mm (in) 670 (26.4) N/A
Kg (lb) 89 (196) 129 (284)
Table 2.2 Weight and Dimensions
(b)
(a)
D
LCMS20-0 LCMS20-1 LCMS30-0
705 (27.8) 705 (27.8) 705 (27.8)
510 (20.1) 510 (20.1) 510 (20.1)
559 (22.0) 826 (32.5) 760 (29.9)
112 (4.4) 112 (4.4) 112 (4.4)
402 (15.8) 402 (15.8) 402 (15.8)
462 (18.2) 462 (18.2) 462 (18.2)
670 (26.4) N/A 670 (26.4)
89 (196) 129 (284) 135 (298)
(d)
(c)
LCMS30-1 LCMS40-0
705 (27.8) 705 (27.8)
510 (20.1) 510 (20.1)
826 (32.5) 760 (29.9)
112 (4.4) 112 (4.4)
402 (15.8) 402 (15.8)
462 (18.2) 462 (18.2)
N/A 670 (26.4)
129 (284) 135 (298)
LCMS50-0
705 (27.8)
510 (20.1)
760 (29.9)
112 (4.4)
402 (15.8)
462 (18.2)
670 (26.4)
135 (298)
