Chapter 2 - System Overview

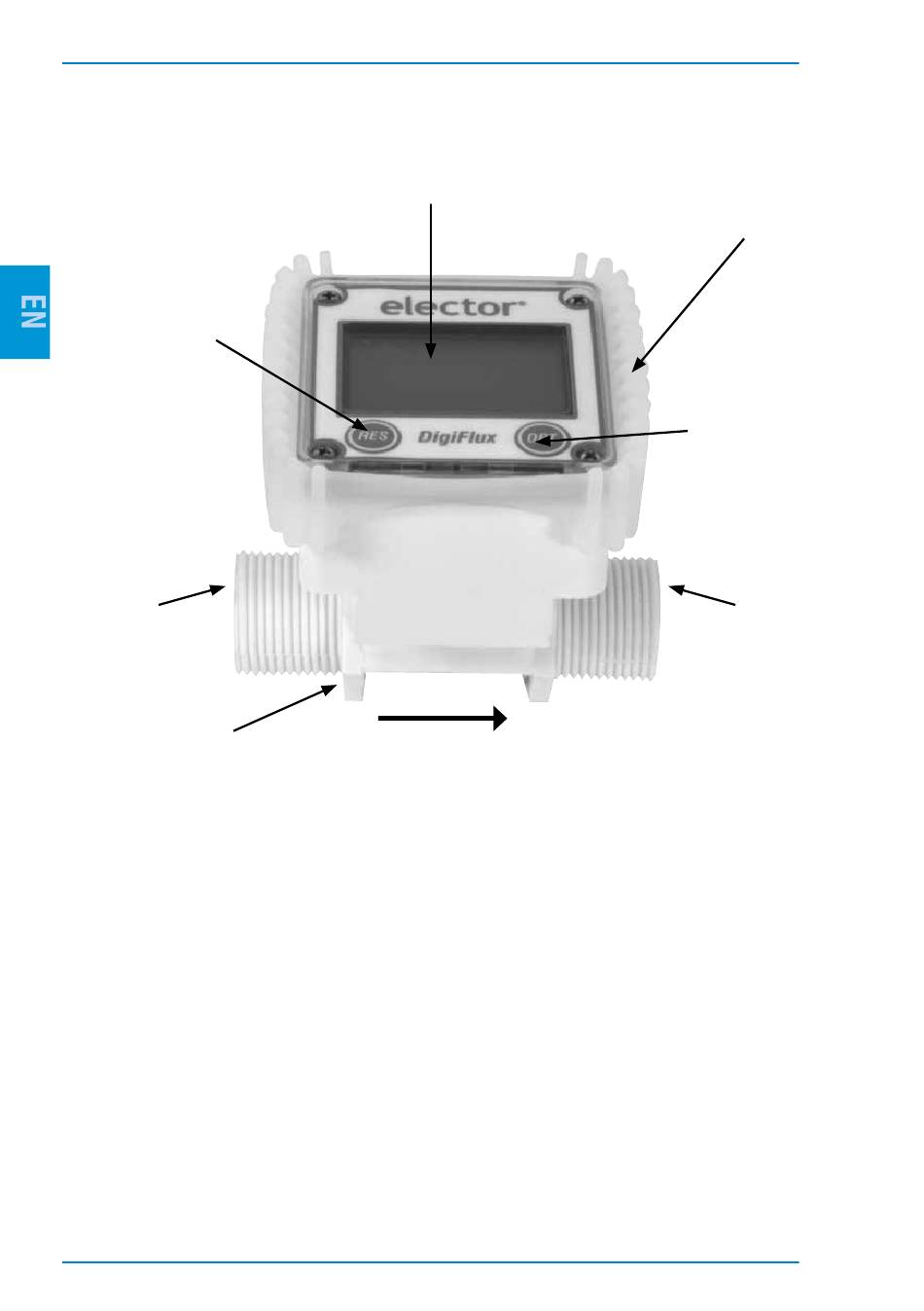

2.1 Construction of the device

Display to show the flow rate
and flow rate
Electronics housing
with protective rubber
Button „Reset"
Button „Option"
Inlet 3/4" Outlet 3/4"
Flow cell with
Direction of flow
turbine sensor

2.2 Technical data

Power supply: .........................................................3V DC (2 x battery type AAA, 1.5V)
Housing protection class: ........................................IP64
Flow rate: ................................................................50 - 5000 l / h
Partial quantity counter: ..........................................0.00 - 9999.9
Total quantity counter: .............................................0.00 - 99999.9
Units: ......................................................................liter (L), gallon (GAL), quart (QTS),
Pint (PTS)
Measurement accuracy: ..........................................± 1%
Operating temperature: ............................................0 - 80 ° C
Operating pressure: .................................................max. 10 bar
Housing material: ....................................................PA66 + GF
Turbine material: .....................................................PA66
Turbine shaft material: .............................................stainless steel 1.4404 (316L)
