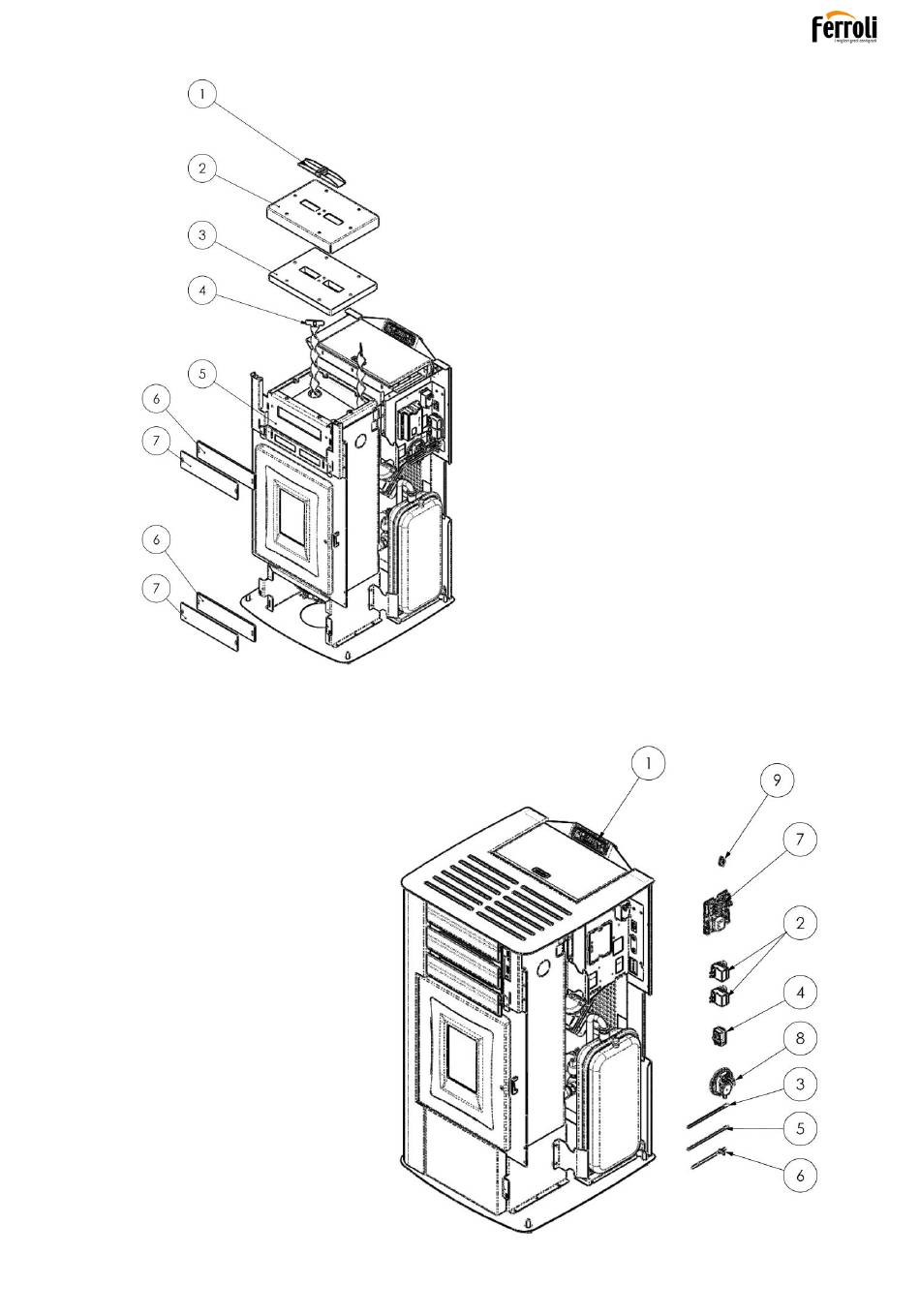

6.3 Stove internal parts

6.4 Electrical components

Key :
1 - Control panel
2 - Safety thermostat
3 - Room probe
4 - ON-OFF switch with fuses
5 - Water probe
6 - Fume probe
7 - Electronic card
8 - Vacuum switch
9 - Serial port
Key:
1 - Safety valve
2 - Heating chamber cover
3 - Vermiculite protection
4 - Turbulators
5 - Heating chamber
6 - Gasket
7 - Inspection cover
