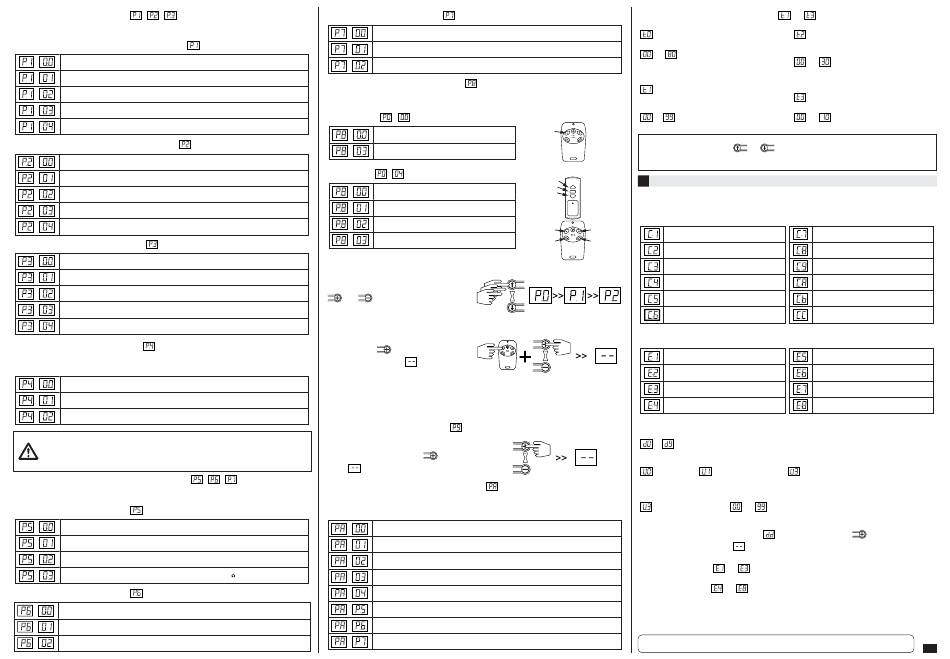

4.2 Safety input function: parameters
When using a resistive sensor bar, the latter must be wired onto safety input 1. The opening safety device
stops then recloses partially (non configurable action).
Configuration of safety input 1 (sensor bar*): parameter
No accessories connected to safety input 1 (default mode)
Accessory connected to safety input 1 enabled when opening the door
Accessory connected to safety input 1 enabled when closing the door
ADMAP** safety: active upon closing + forbids starting at opening
Contact for connecting an emergency stop device
Configuration of safety input 2 (photocell*): parameter
No accessories connected to safety input 2 (default mode)
Accessory connected to safety input 2 enabled when opening the door
Accessory connected to safety input 2 enabled when closing the door
ADMAP** safety: active upon closing + forbids starting at opening
Contact for connecting an emergency stop device
Configuration of safety input 3: parameter
(plant value = 00)
No accessories connected to safety input 3 (default mode)
Accessory connected to safety input 3 enabled when opening the door
Accessory connected to safety input 3 enabled when closing the door
ADMAP** safety: active upon closing + forbids starting at opening
Contact for connecting an emergency stop device
4.3 Safety action upon closing: parameter
(plant value = 01)
The safety action at opening (P1, P2, or P3 = 01) is not configurable (stopage followed with partial door reo-
pening). However, safety actions upon closing (P1, P2, or P3 = 02) can be configured:
Stop the door
Stop, then total reopening of the door (default mode)
Stop then partial reopening of the door(2 seconds operation)
Ensure you configure the safety input used for the appropriate self-test:
safety 1: P1+P5, safety 2: P2+P6, safety 3: P3+P7
Once the safety accessories are connected and the safety inputs configured, check manually the
proper operation of the accessories before the final start up of the facility.
4.4 Configuration of the self-testing function: parameters
The self-test function is used to check proper operation of the safety accessories automatically at the end of
closing..
Self-testing safety input 1: parameter
(plant value = 03)
No self-test of the accessory connected (default mode)
Self-test for photocells by power supply cutting. Caution : The transmitting cell
must be supplied on terminals 10/12 and the receiver cells on terminals 10/11).
Self-test for accessory fitted with a TEST input (cells or sensor bar).
ASelf-test for resistive sensor bar (value comprised between 4 and 12 K
Self-testing safety input 2: parameter
(plant value = 00)
No self-test of the accessory connected (default mode)
Self-test for photocells by power supply cutting. Caution : the transmitting cell
must be supplied on terminals 10/12 and the receiver cells on terminals 10/11).
Self-test for accessory fitted with a TEST input (cells or sensor bar).
Self-testing safety input 3: parameter
(plant value = 00)
4.5 Programming remote controls: parameter
According to the type of operation chosen in chapter 3.1, the value of the P8 parameter does not produce
the same effects.
Sequential mode
(plant value = 00)
3-button mode
1. Choose the remote control key's function to program.
DIsplay the value of the function to program using
and
2. Save the code (RSA Hz can save maximum 32 channels)
Press simultaneously the remote control key to pro-
gram and the key
seconds until dashes appear
The RSA Hz can be controlled in the three-button mode using a reverter with three keys wired onto the
START,SEC2, and SEC3 inputs (if the latter are configured "non wired": chapter 4.2).
4.6 Clearing remote controls: parameter
Clearing all remote controls is performed by pressing
and holding for 3 seconds the key
appear
4.7 Configuration of auxiliary accessories: paramete
The auxiliary contact is a dry contact. A single accessory can be connected and power supplied according to
the use configured.
(default mode)
((plant value = 00)
No self-test of the accessory connected (default mode)
Self-test for photocells by power supply cutting. Caution : the transmitting cell
must be supplied on terminals 10/12 and the receiver cells on terminals 10/11) :
Self-test for accessory fitted with a TEST input (cells or sensor bar).
Openning
Stop
Opening / Closing Command (default mode).
Closing
Auxiliary output control (driving the accessory
connected to the AUX output).
Openning
Stop
Open command
Closing
Close command
Stop command
Openning
Auxiliary output control (driving the accessory
Closing
connected to the AUX output).
keys on the RSA Hz.
on the RSA Hz for three
(plant value = 04)
until dashes
3s.
(plant value = 04)
Contact to drive an electric latch
(The latch must be supplied with an outside power supply)
Contact to drive an electromagnetic latch
Contact to drive an Orange flashlight without notice
(only during the door's operation)
Contact to drive an Orange flashlight with notice
(before starting and during the door's operation)
Contact to drive a zone lighting
(default mode, automatic switch off after timeout T3 - §4.8)
Contact to drive an open door indicator
Contact of the stable mono relay type to drive an automation system
Contact of the bi-stable relay type to drive an automation system
Configuring the operating mode: parameters
Motor operating time (default value 80)
to
(Increment of 1 sec.)
Adjust a time slightly longer than the actual opera-
ting time.
Time for reclosing the door
(default value 05)
à
(Increment of 1 sec.)
Enabled in automatic operating modes (§ 4.1).
To return to the menu, press the
the product's operation: see § 5) or after a one-minute waiting time.
5
Operating information
List of operating information displayed by RSA Hz used to view and an easy diagnostic of the facility's status.
Event codes
Stop
RSA Hz waiting for a command
Auxilliary
Opening door
Opening door
Closing door
Open cell hidden
Close cell hidden
Default codes
Safety fault at opening
(contact always open)
3s.
Safety fault at closing
(contact always open)
ADMAP* safety fault
ADMAP* safety fault
Self-test failed on safety input 1
Log of the last 10 faults
...
See fault code above.
Cycles counter
Tens and units.
Thousands and hundreds.
Accessories consumption
power consumed in Watts
Reinitialise the RSA Hz after a fault
To clear the fault codes, select the parameter
for 3 seconds until dashes appear
- For the fault codes from
to
Once the fault is corrected, it is not required to clear the fault code of the log to return to normal operation.
- For the fault codes from
to
Once the fault is corrected, you must clear the defect code for the log to return to normal operation.
* If the connection of accessories matches the diagram in chapter 1.
**Area Dangerous forMovement Accessible to the Public.
to
Delay time before motor reversion
(default value 01)
to
(Increment of 1 sec.)
Particular case of motors not accepting reversion of
the rotation direction without stopping phase.
Area lighting time after cycle end
(default value 02)
to
(Increment of 1 min.)
or
jkeys to return to value C1 (or any other value indicating
ADMAP* cell hidden
Door movement forced by keypad
Emergency stop triggered
Self-testing safety
Permanent contact on "START" input
Wait before motor reversion
Self-test failed on safety input 2
Self-test failed on safety input 3
Intensity exceeded on 24V power supply
(too many accessories connected)
Operating time "T0" too short
or motor endstop not reached
Hundred and tens of thousands.
to
.
and press and holding the
pendant 3 secondes key
:
:
