5.2 Electrical connection

Wire in the apparatus according to the electrical supply required by the actuator (see label on product), following
the table below.
0 Yellow/Green
1 Blue or Gray
2 Black
3 Brown

5.3 Operating test

Press the control button and close the window, checking that:
a. The window is completely closed. If it is not, check that the gap between the window and the frame is bigger than or
equal to 0 mm. If necessary, insert spacers so as to obtain the correct gap.
b. The spindle is perfectly perpendicular to the window frame. If necessary adjust the fixing bracket by using the
screws and slots.
Having reached the correct closing position, press the control button and open the window in order to check that the
actuator runs freely over the full travel set up.
Having achieved the required opening run, press the control button again to close the window. Once the window
has completely closed, check that the screws, supports and fixings are tightened correctly, and that the seals are
sufficiently compressed.
26
230VAC supply
Earth
Neutral / Common
Phase / Open
Phase /Closed

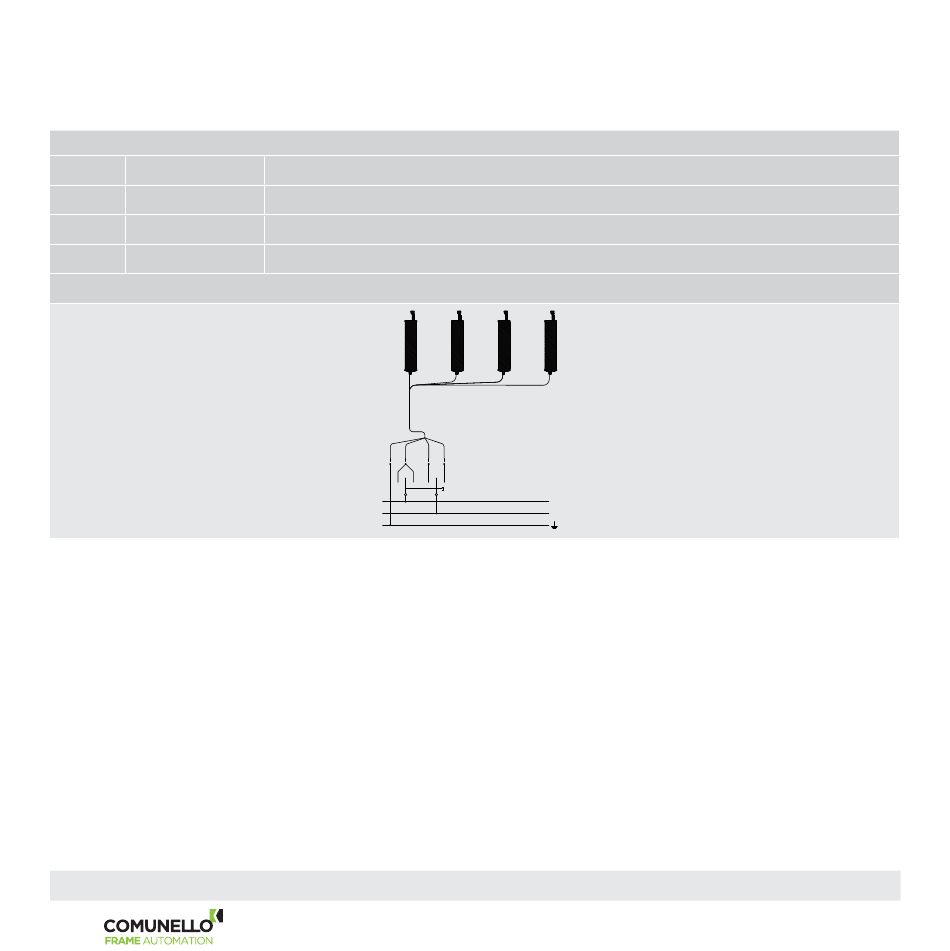

Electric 230VAC wiring
0 1 2 3
Installation completed
N
110/230V~ 50/60Hz F
