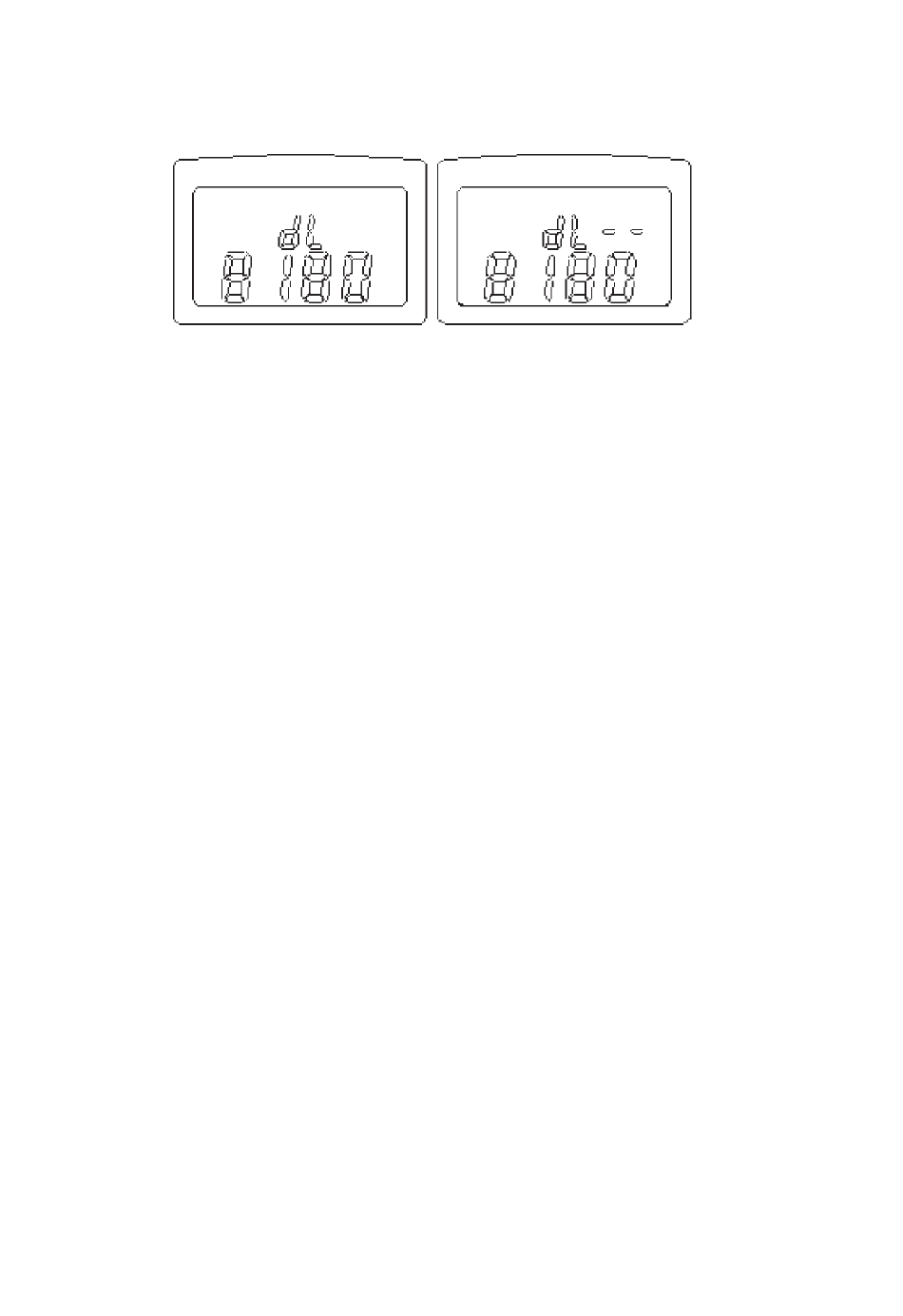

Format of Down Loaded Data (DET20C only)

The data is down loaded to the PC in ASCII format. In addition to data readings information includes
status of jaws open, noise, HI alarm, LO alarm, and low battery. Below is a list of abbreviations for each
condition and an example of data down loaded to the PC:
List of abbreviations:
Abbreviation
OPEN Jaws open NS
LO Low alarm HD
Example of down loaded data:
0001 (sampling time)
10.00 ohm
10.02 ohm
5.200 ohm LO
1.000 ohm NS
1.500 mA
9.00 A
NOTE: Each record is ended by <CR> and <LF>. The corresponding ASCII codes for <CR> and
<LF> are 13 and 10.

Reading the Data Stored in Memory

This function allows users to read the data stored directly from the instrument display.
1. Press the FUNC button until the symbol "NO." is shown on the LCD. The current record number is
shown on the upper row of the LCD, the data is shown in the lower row of LCD.
2. Press the L button to read the next data record.
3. Holding down the L button accelerates the rate of increment. The record number will roll over to 1
when the last record is reached.
9
Abbreviation
HI
Noise
LB
Data Hold
Abbreviation
Hi alarm
Battery low
