III. PRESENTATION
Functioning
In alarm
=>
By default, the alarm is alternatively on and off 4'only for
the relay.
IV. INSTALLATION
a)

Installation recommendations

Place the devices at ~2m high and around 30 to 40cm from the ceiling to avoid obstacles and moving persons.
If possible, place the Spy RF in central position regarding the Spy RF recorders.
Try to place them preferably at sight of each other.
On the wall, it is preferable to them aside by using the special bracket (ref 08512) of the catalog.
Place the antenna above the top the monitored unit (fridge, incubator, oven, cold rooms...),.
Never place the Spy RF horizontally.
If some difficulties persist, it is possible to use Spy Rf RelaY (repeaters) or to connect another Spy RF ModeM to
the Ethernet network (LAN).
b)

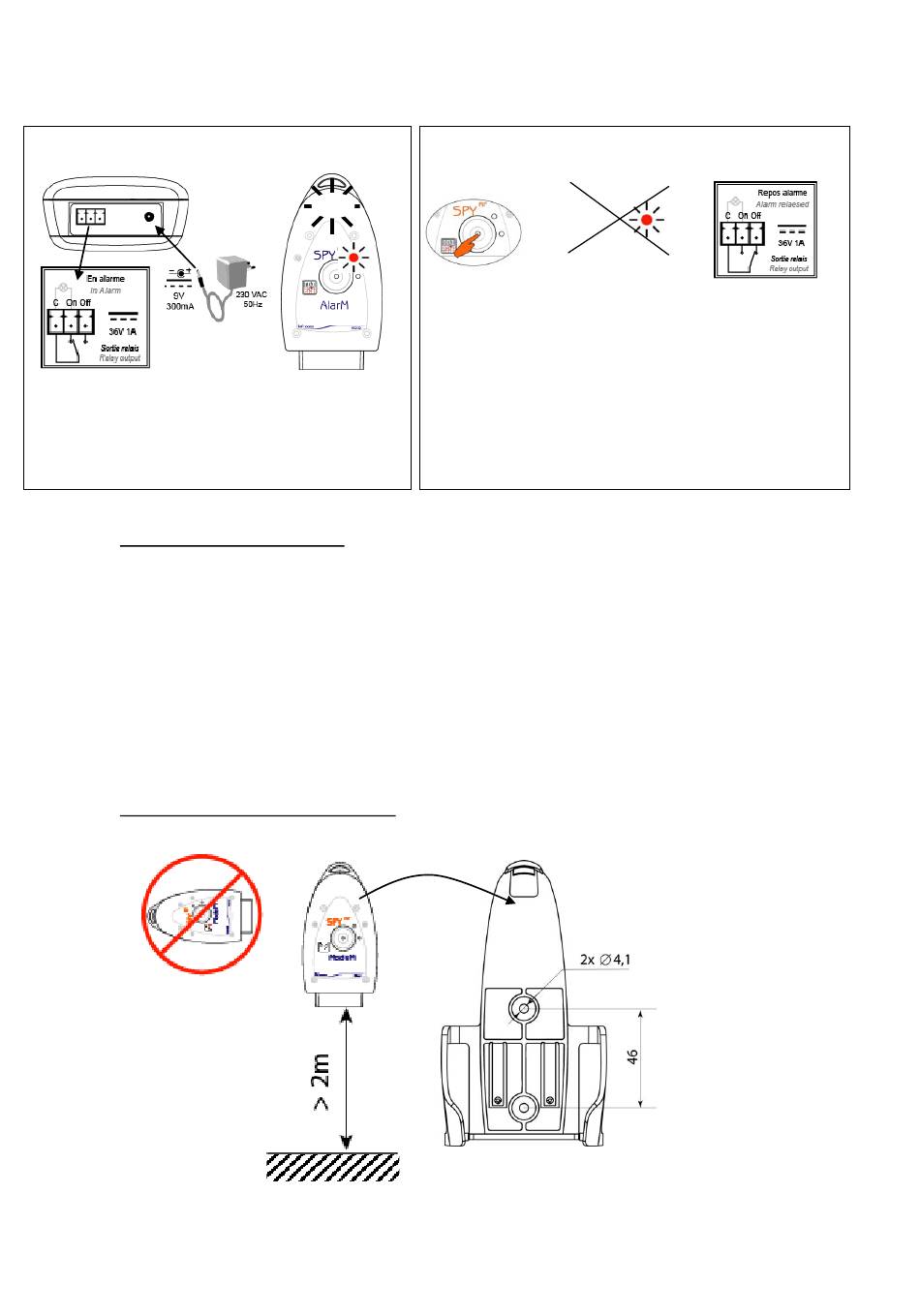

Installation of wall-mounting bracket

©JRI Maxant
Stop alarm
BIP
Stop is temporary (4 min) only for the relay. The alarm will go on
again until it will be acknowledged by Sirius.
The relay will stop after a number of cycle (see p 4). The led and
buzzer will always advertise. The relay functioning will be
initialized after a Sirius acknowledgement.
BIP
11
