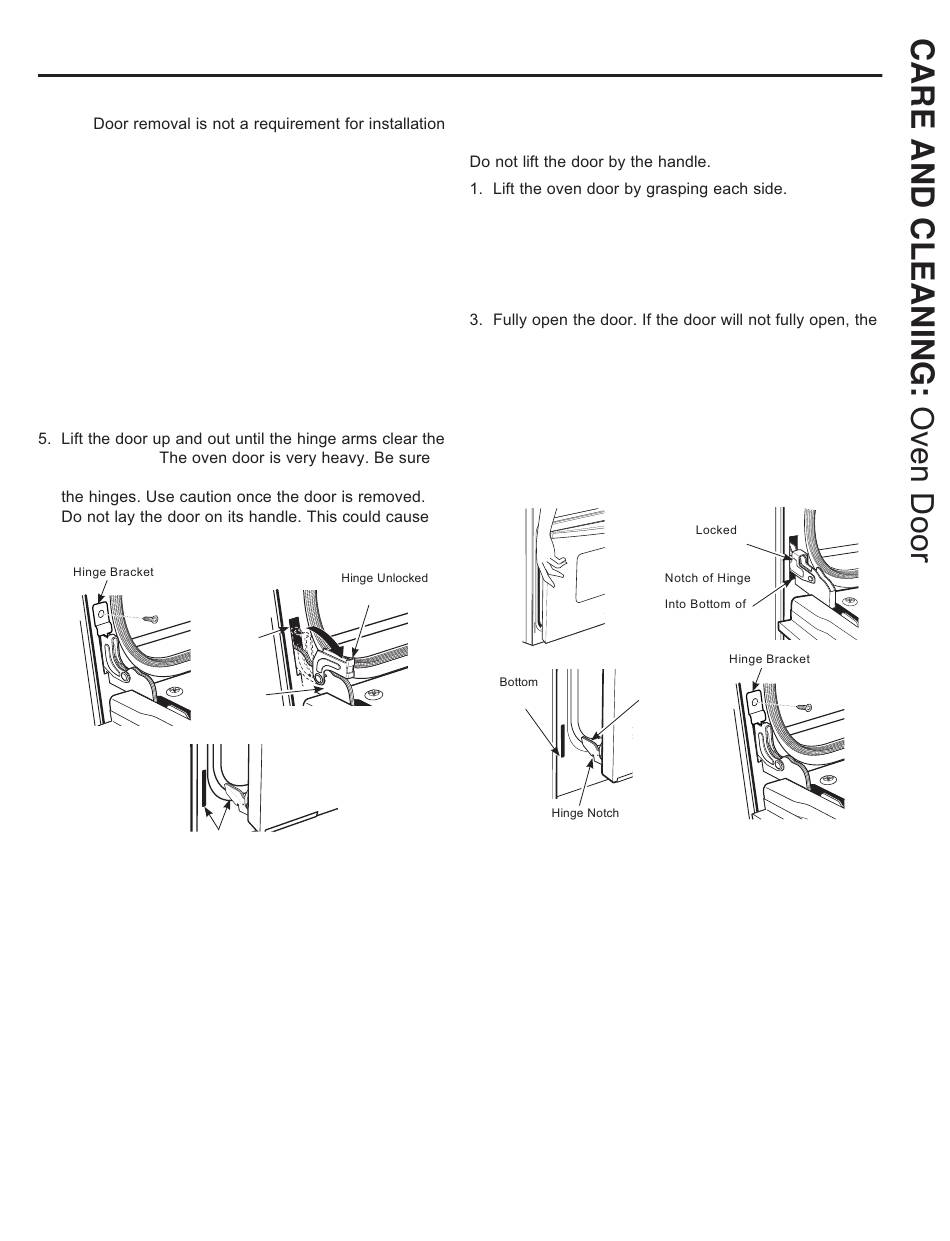

Oven Door

Oven Door Removal

NOTE:
of the product but is an added convenience.
To remove the door:
1. Open the oven door as far as it will go.
2. Remove hinge bracket (if present) from front frame
and set aside. The hinge bracket must be replaced
for proper door functionality when door is reinstalled.
3. Push both hinge locks down toward the door frame to
the unlocked position. This may require a flat-blade
screwdriver. DO NOT LIFT THE DOOR BY THE
HANDLE!
4. Place hands on both sides of the door and close the
oven door to the removal position (approximately
1"–2" [2.5 cm–5.1 cm] from the closed position).
slots. NOTE:
you have a firm grip before lifting the oven door off
dents or scratches.
Hinge Clears Slot
49-2000961 Rev. 0
Position
Hinge
Slot
Hinge
Arm

Replacing the Oven Door

NOTE: The oven door is heavy. You may need help
lifting the door high enough to slide it into the hinge slots.
2. With the door at the same angle as the removal position
(approximately 1"–2" [2.5 cm–5.1 cm] from the closed
position), seat the notch of the hinge arm into the
bottom edge of the hinge slot. The notch of the hinge
arm must be fully seated into the bottom of the slot.
indentation is not seated correctly in the bottom edge
of the slot.
4. Push the hinge locks up against the front frame of the
oven cavity, to the locked position.
5. Replace hinge bracket (if present). The hinge bracket
must be replaced for proper door functionality.
6. Close the oven door.
Hinge
Arm
Edge of
Slot
Hinge in
Position
Securely Fitted
Hinge Slot
15
