Fitting Instructions - Read instructions carefully before fitting and follow them for correct use
IN8111

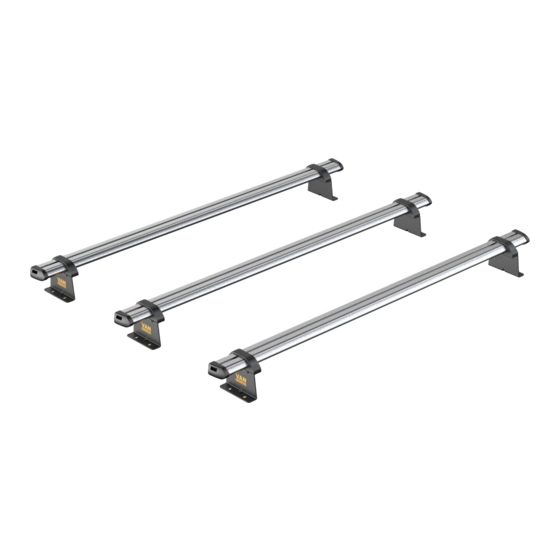

ULTI Bars - X3
FX4013
X6
FX4014
(M6)
(RUBBER)
ME0776
X2
ME0777
TOOLS REQUIRED
10MM X 1
DRILL (Ø4 & Ø6) X 1
EN - SAFETY AND PRODUCT INFORMATION
DE - SICHERHEITS- UND PRODUKTINFORMATIONEN
FR - INFORMATIONS DE SÉCURITÉ ET DU PRODUIT
NL - VEILIGHEIDS- EN PRODUCTINFORMATIE
ES - INFORMACIÓN DE SEGURIDAD Y DEL PRODUCTO
IT - INFORMAZIONI SULLA SICUREZZA E SUL PRODOTTO
10MM X 1
?
(LONG HANDELED SOCKET)
This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for
manufacturing purposes, copied nor communicated in any way to third parties without written
permission from VAN GUARD ACCESSORIES LTD.
IN8111_E
(CN:00183)
X6
FX4016
X18
FX4026
(M6)
X2
ME0778
X2
SV - SÄKERHETS- OCH PRODUKTINFORMATION
DA - SIKKERHEDS- OG PRODUKTINFORMATION
NO - SIKKERHETS- OG PRODUKTINFORMASJON
PL - INFORMACJE O BEZPIECZEŃSTWIE I PRODUKCIE
CS - INFORMACE O BEZPEČNOSTI A PRODUKTU
Customercare@van-guard.co.uk
UK +44 (0) 1392 368 351
X6
FX4042
X12
(M6X20)
(M6X16)
MA6166
ULTI Bar Trade
VG-051_02
MA6018
X6
MA6065
MA6167
X3
(Steel)
Van Guard Accessories Ltd
Fair Oak Close, Exeter Airport Business Park,
2
X6
ME0203
X6
X3
ULTI Bar+
(Aluminium)
Exeter, Devon, EX5 2UL
www.van-guard.co.uk
IN8111 - PAGE 1 OF 6
