FORM FIT TOUGH GUARD TG 5M15 Instructions D'installation page 3

Publicité

TG 5M15
Rev0.Sept 19, 2017
7.

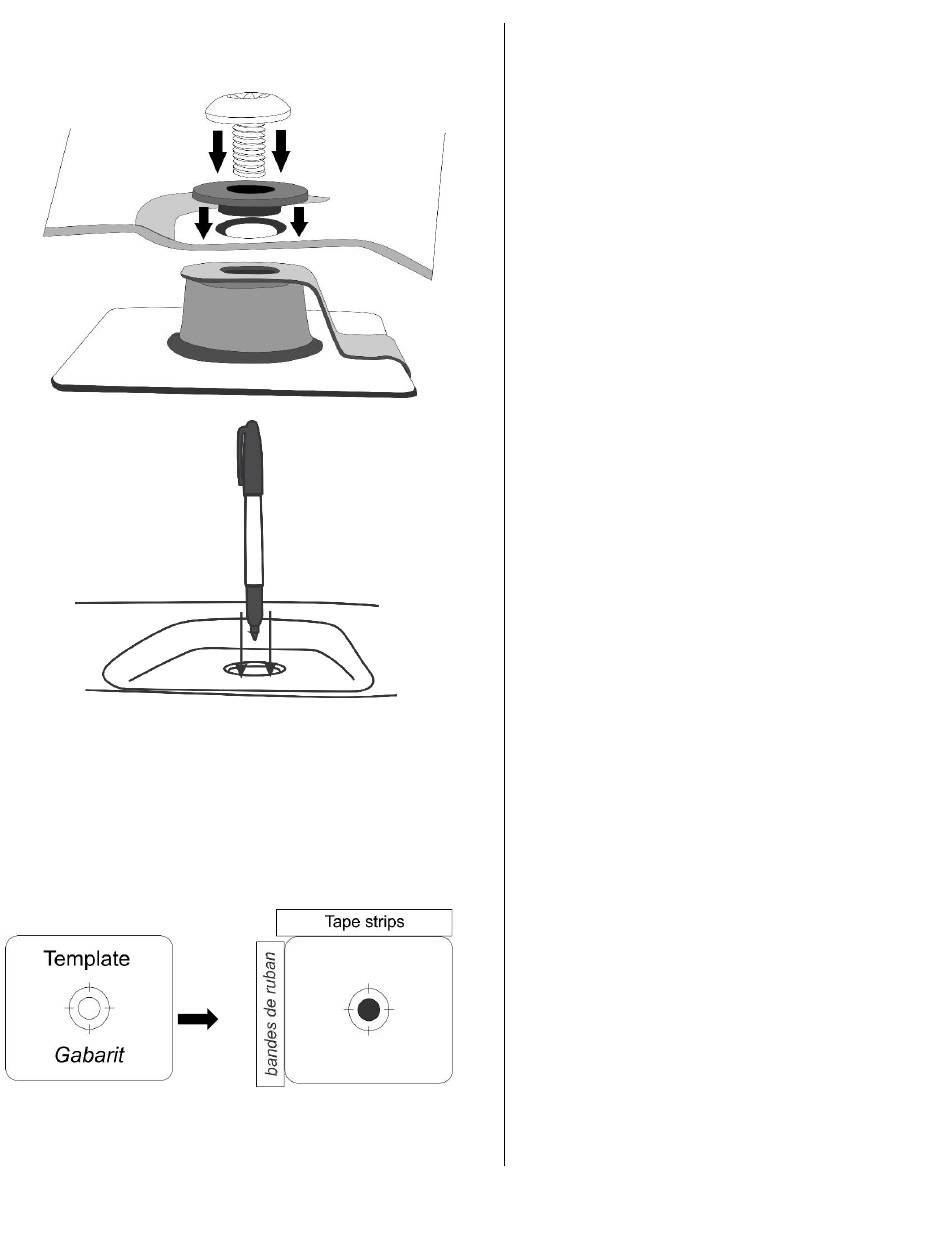

As illustrated, assemble a Torx head screw and a shoulder
washer and install them in the four positions from Step 5. Only
thread the screw in a couple of turns as this is just a temporary
step to hold the hood protector in position while other pedestal
positions are determined. You may need to adjust the position
of the mounting pedestal slightly to align with the hole in the
hood protector. Ensure the hood protector is straight and
centered on the hood.
Comme illustré, montez une vis de tête Torx et une rondelle
d'épaule et installez-les dans les quatre positions à partir de
l'étape 5. Enfoncez uniquement la vis dans quelques tours car
ceci n'est qu'une étape temporaire pour maintenir le
protecteur de capot en position tandis que d'autres Les
positions du piédestal sont déterminées. Vous devrez peut-
être ajuster légèrement la position du socle de montage pour
l'aligner avec le trou dans le protecteur de capot. Assurez-
vous que le capot est droit et centré sur le capot.
8.
Once the screws are in place, take a felt marker (a fine point
Sharpie works best) and insert it into the hole in each of the
remaining "pockets" of the hood protector. Keeping the marker
perpendicular to the hood surface, mark the hood surface with
a dot. ***NOTE- IF YOUR HOOD HAS PAINT PROTECTION
FILM, A PERMANENT MARKER MAY STAIN THE FILM.
USE A DRY-ERASE MARKER OR A GREASE PENCIL.***
Une fois que les vis sont serrées, prenez un marqueur de
feutre (un point fin Sharpie fonctionne le mieux) et insérez-le
dans le trou dans chacune des "poches" restantes du
protecteur de capot. Garder le marqueur perpendiculaire à la
surface du capot, marquer la surface du capot avec un
point.***REMARQUE - SI VOTRE CAPUCHON A UN FILM
DE PROTECTION DE PEINTURE, UN MARQUEUR
PERMANENT PEUT MANQUER LE FILM. UTILISEZ UN
MARQUEUR D'EFFACEMENT SEC OU UN LENTILLE A
GRAISSE.***
9.
Remove the Torx head screws from the mounting pedestals.
Remove the hood protector. ***Do not remove the
temporarily installed pedestals.
Desserrez les vis qui retiennent les clips et retirez le
protecteur de capot. Ne retirez pas les attaches latérales du
capot du protecteur de capot. ***Ne supprimez pas les
piédestaux temporairement installés.
10. Locate the pedestal positioning template and place the
template over a dot on the hood. Ensure the template is
square to the hood edge. Using two of the repositionable tape
strips, outline the template on two adjacent sides. Repeat for
all dots. Depending on the application, it may be necessary to
cut the tape strips in half to ensure there are enough to outline
all locations. ***Outline the temporarily installed pedestals
as well, then remove them.
Localisez le gabarit de positionnement du piédestal et placez
le gabarit sur un point du capot. Assurez-vous que le gabarit
est carré au bord du capot. En utilisant deux des bandes de
ruban repositionnables, décrire le gabarit sur deux côtés
adjacents. Répéter pour tous les points. Selon l'application, il
peut être nécessaire de couper les bandes de ruban adhésif
en deux pour s'assurer qu'elles sont suffisantes pour décrire
tous les emplacements. ***Décrivez également les socles
temporairement installés.
Page 3 of 5
