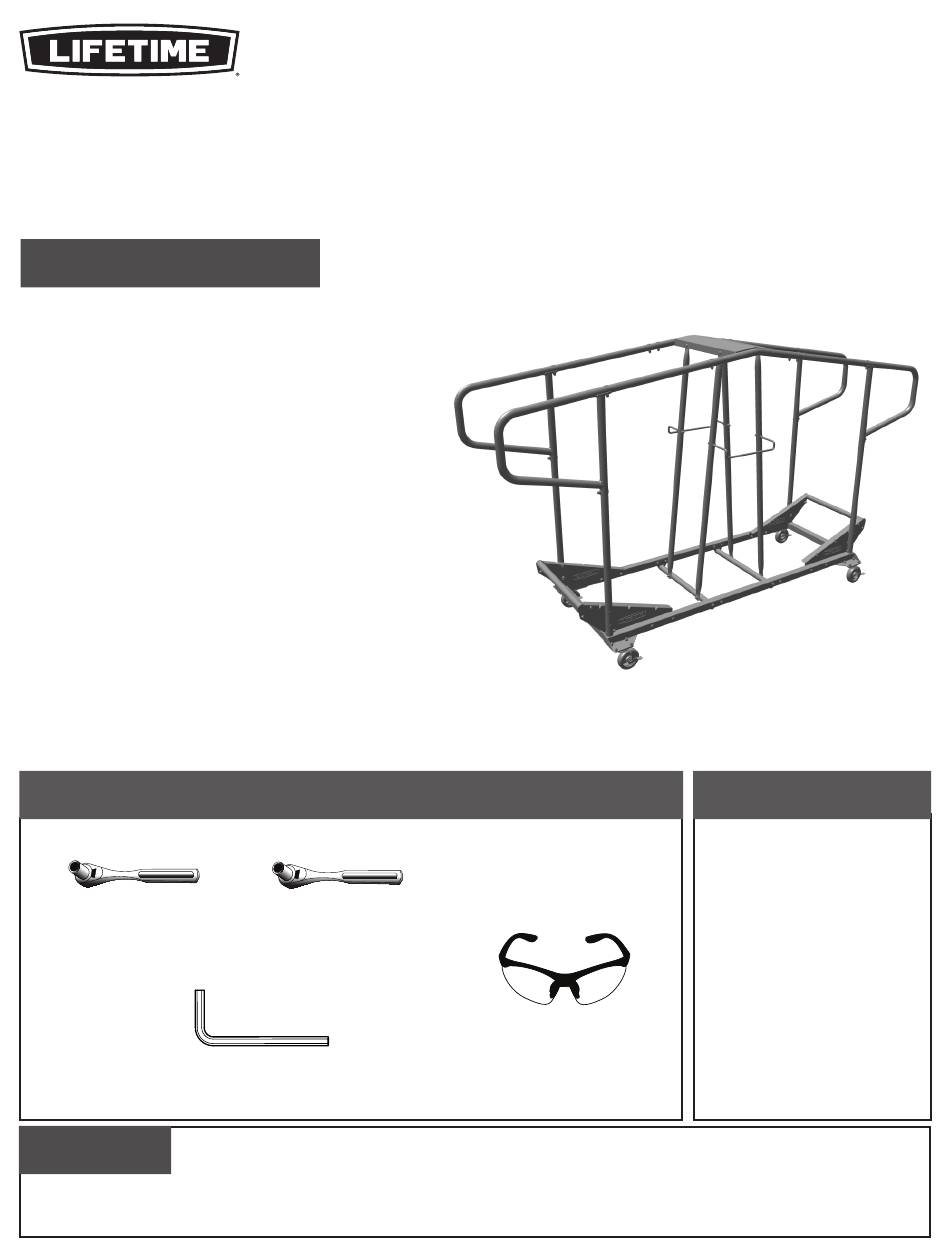

CART FOR
FOLDING CHAIRS
MODEL #60091
MODEL 80976
BEFORE ASSEMBLY:
• Assemble on a level platform
• At least 2 people for setup recommended
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED (NOT INCLUDED—UNLESS INDICATED OTHERWISE*)
9/16 in/po
(≈14 mm)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
1/2"
(≈13 mm)
CCL
(Provided)
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
TABLE OF CONTENTS
Icon Legend...................................4
Warnings & Notices.......................5
Cart Assembly...............................6
Warning...................................21
Cleaning & Care..........................22
Registration...........................23
Warranty................................24
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 80976
Product ID:
