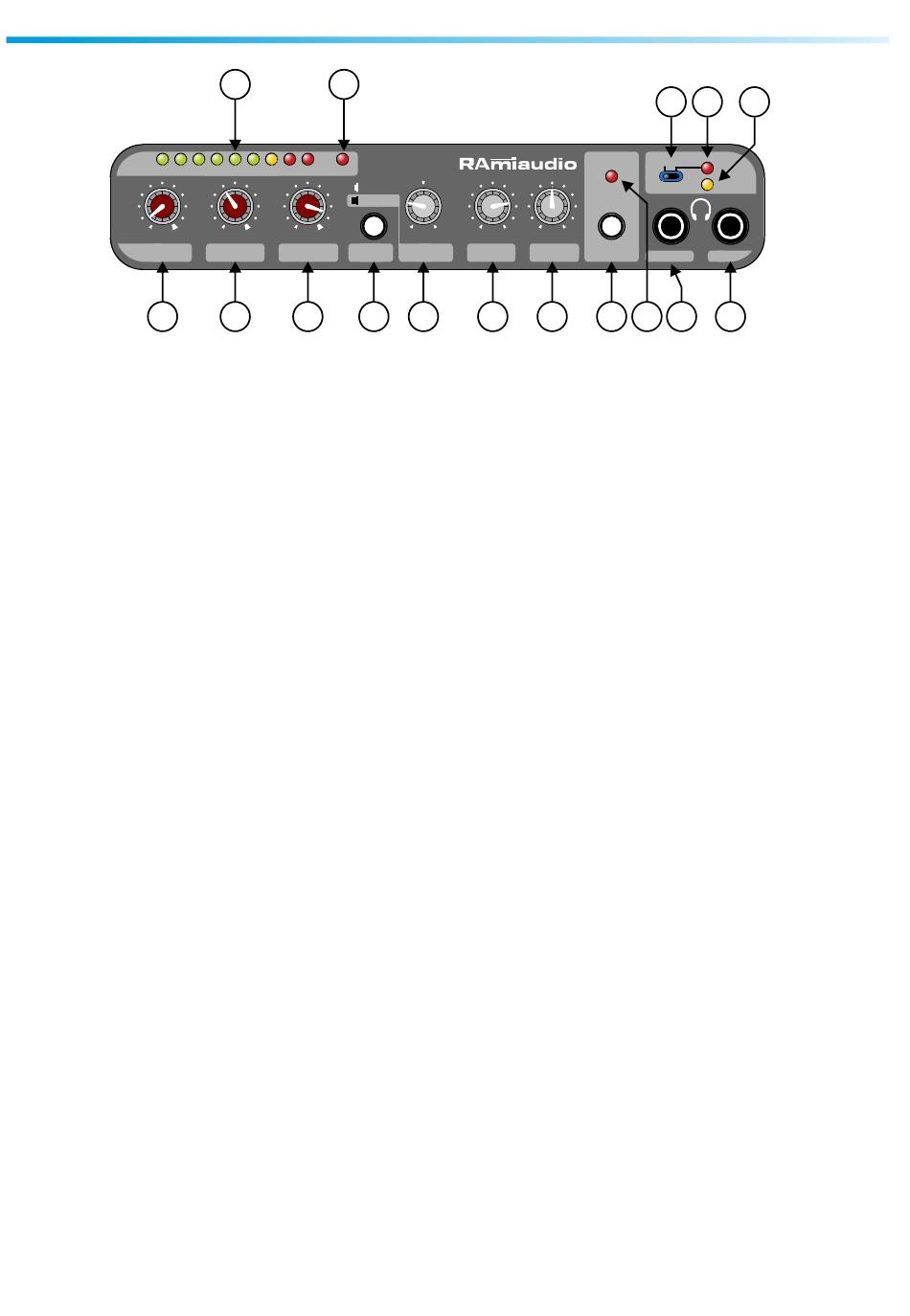

FRONT PANEL

SEND
LEVEL -18 -15 -12
0 10
VOL
MIC 1
3
1 - 8 dots Vu meter DOT/BAR.
2 - Clipper led display.
3 - Microphone 1 level pot.
4 - Microphone 2 level pot.
5 - Microphone 3 / line level pot.
6 - Key to monitor Hybrid or Tuner. Sends the Tuner (E input) or Hybrid return signal to
the headphones.
7 - Hybrid send and return /tuner return pan pot (according to 6).
8 - Headphone 1 level setting.
9 - Headphone 2 level setting.
10 - Key allowing local hook or answering a call.
11 - Light indicator showing:
incoming call  red

local hook

12 - Jack connector for headphone 1
13 - Jack connector for headphone 2.
14 - Power switch.
15 - Power on indicator.
16 - Battery filling indicator.
Rami - Porta-Report
1 2
PORTA-REPORT
Limit
-9 -6 -3 0dB +3 +6
Aux/Tuner
Hybrid
0 10 0 10
VOL VOL PHONES
MIC 2 MIC 3/LINE SELECT
4 5 6
 green
Send Return
0 10 0 10
BAL VOL VOL
PHONES 1/2
PHONES 1 PHONES 2
7 8 9
11
14 15 16
CALL OFF
ON
CHARGE
PUSH
1 2
TO INSERT
10 11 12 13
