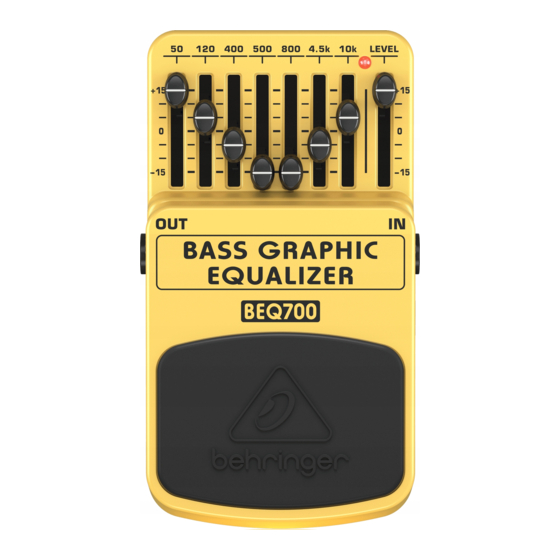

BASS GRAPHIC EQUALIZER BEQ700
Ultimate 7-Band Graphic Equalizer
Thank you for showing your confidence in us by purchasing the
Behringer BASS GRAPHIC EQUALIZER BEQ700. This ultimate effects pedal
is specifically designed to match the frequency range of bass guitars.
It allows 7-band sound shaping and feedback elimination from 50 Hz to
10 kHz. It has a powerful 15 dB boost/cut per band, ideally suited even for
5-string and 6-string bass guitars.
1. Controls
The 7-band EQ faders allow boosting/cutting single frequency
(1)
ranges from 50 Hz to 10 kHz at ±15 dB.
The LEVEL fader adjusts the output level. It can be used to achieve
(2)
effective volume "boost" or "cut."
This LED illuminates when the EQ is activated. It also serves as a
(3)
battery level indicator.
Use the footswitch to activate/deactivate the EQ.
(4)
Use this 1/4" TS IN connector to plug in the instrument cable.
(5)
The 1/4" TS OUT connector sends the signal to your amp.
(6)
Use the DC IN connection at the front of the unit to plug in a 9 V power
supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover.
To install or replace the 9 V battery, press the hinges with a ballpen and
remove the pedal cover. Be careful not to scratch the unit.
◊ ◊
The BEQ700 has no on/off switch. As soon as you insert the
jack into the in connector, the BEQ700 begins running.
When not using the BEQ700, remove the jack from the
in connector. This extends the life of the battery.
The SERIAL NUMBER is located at the bottom.
V 1.0
(1)
(2)
(6)
(3)
(5)
(4)
