Operation instruction:
menu(1): switch the interface.
UP(2): the current parameter is increased; when the main interface is pressed, it enters the direct
smoke mode.
DOWN(3): current parameter decreases; when the main interface is pressed, it enters the direct timer
mode.
ENTER(4): stop working.

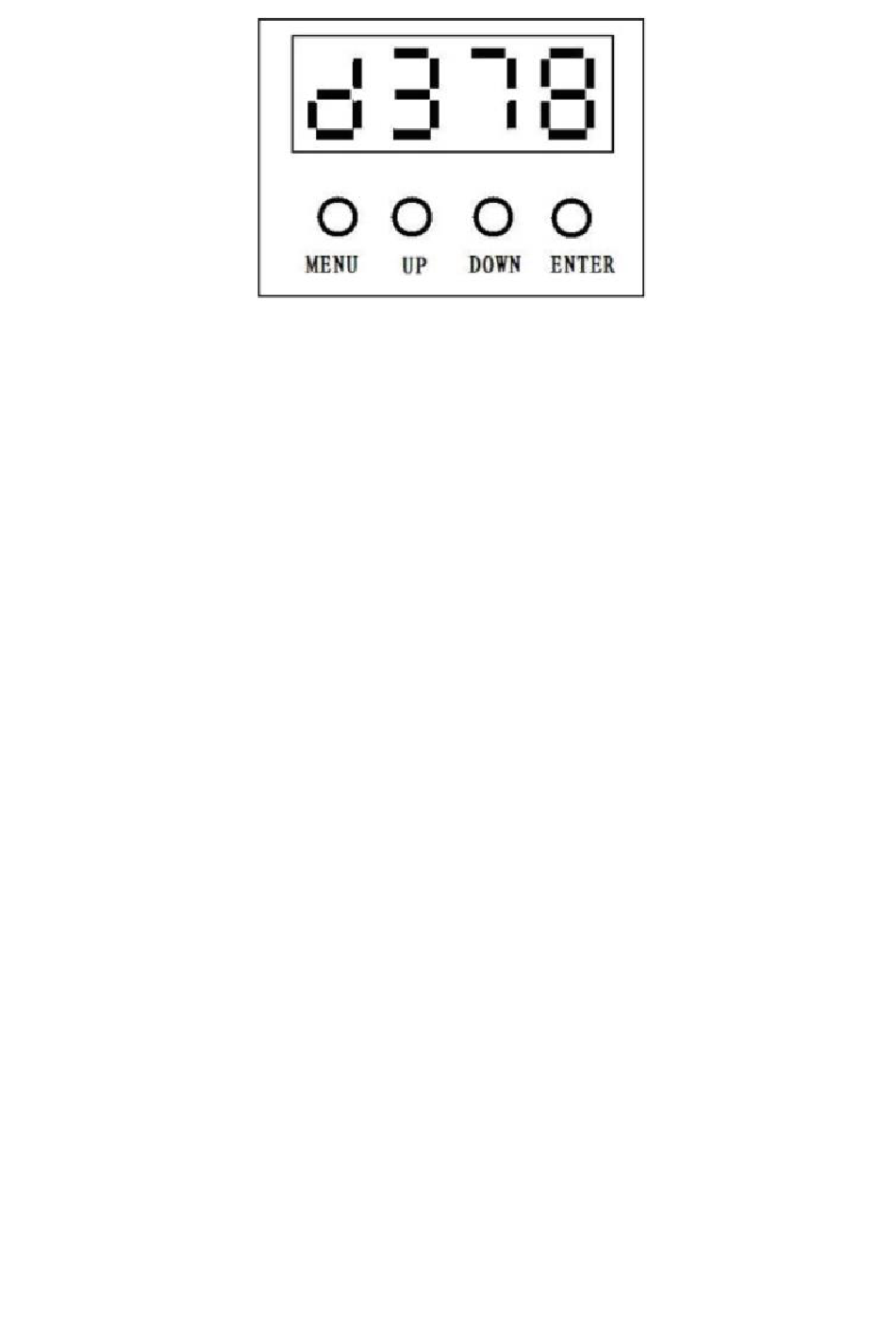

Digital tube display
A001: Address code interface, range 1-512.
P001: Smoke output size adjustment interface, range 1-100; I010: Interval output setting.
I010: Interval setting, range 3-900; D010: Continuous setting, range 3-900.
D010: Continuous smoke output setting, range 3-900.
FU 0 : without oil protection switch, 0 off, 1 on.
When you enter the without oil protection, you have to press the "ENTER" button to exit the working
state, and press the "UP" button under the homepage to work again. Or in the DMX interface. You have
to reset the fader back to start 0 position and push the data again before the machine can work again.
Remote Controls: A, B, C, D.
Press and hold to emit smoke, release to emit no smoke.
DMX Channel Table
1ch:,Smoke off(0-5),Smoke out gradually gets bigger(6-255).
