Brinno TLC 200 Manuel De L'utilisateur

User Manual

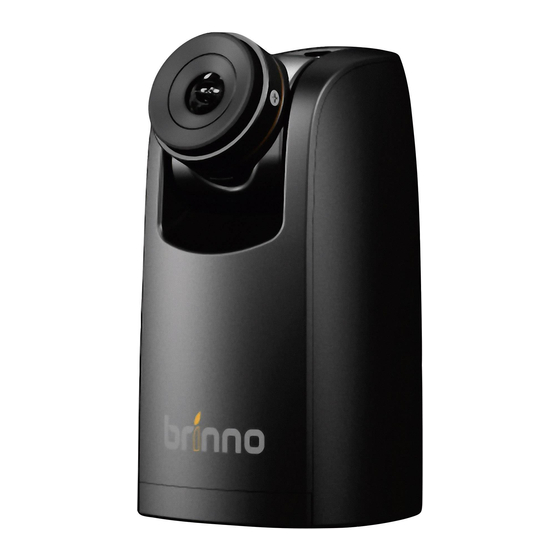

TimeLapse Camera
TLC 200 & TLC200 f1.2
Package Contents
1. TimeLapseCam 2. 4 AA Batteries 3. SD card
Parts of the Camera
6
4
1280x720
7
1
READ Y
8
MENU
9
2
10
OK
START
3
11
5
Display Icons
Set up screen
1. Capture mode: Normal: Time Lapse mode Shutter: Shutter Line
mode Motion: Motion Activated mode 2. Time interval: Select the
pre-set time interval or custom by yourself. 3. System date and time
4. Battery level 5. Scene 6. Preview image 7. Battery Empty-Please
replace battery imediately. 8. SD Card Full-Please clear up SD card
space 9. SD Card Error-Please replace SD card 10. No Card-Please
Insert SD card
About Power Saving
At Set Up Screen After 10 seconds without activity on the set up
screen, the camera will go to Preview screen automatically. You can
press the MENU or TIME button to go back to the set up screen. At
Preview Screen After 30 seconds without activity on the set up or
preview screen, the LCD screen will turn off automatically to save
power. You can press the OK button to wake up camera.
Initial Setup
1. Install Batteries and SD Card: Open battery door and insert 4 AA
batteries. Close battery door.(Be sure the battery cover is locked into
place.) Open SD card cover, insert SD card until it clicks into place.
Close SD card cover. 2. Turning the Camera on: Rotate the Power
switch to ON position. It may display other information on screen,
please refer to Display Icons. 3. Set Date and Time: Press MENU
button. Press TIME (>) to select Set Date & Time, then press OK
button. At the highlight field, press MENU (-) to decrease value, press
TIME (+) to increase value, press OK to confirm and go to next field,
when finished press OK to exit setting. 4. Set Time Interval: Press
TIME button to time interval setting. Press MENU (<) and TIME (>) to
select pre-set time interval or custom it by yourself, finally press OK
to confirm and back to setting screen.
Now, you are ready to go to Preview screen and start record your Time
Lapse Video.
w w w.b r i nn o.c o m
1.
SD Card cover
Connector for Extension
12
2.
Accessories(For ATS100, ATM100)
3.
Connector for Micro USB cable
(For extension power supplier, DC 5V)
4.
Metal Ring (for ATM100, ATL045 )
5.
Battery Door
6.
Strap Eyelet
TIME
7.
LCD Screen
8.
MENU(<)button
9.
TIME(>)button
10.
OK/START button
11.
Power Switch
13 12.
LED Indicator
13.
Tripod Screw Hole
Preview Screen
Start Recording
1. Turn on TimeLapse Camera, set time interval and press OK to Preview
GB
Screen. 2. Adjust lens angle to frame subject. 3. At Preview screen, press
OK button to start recording.
(During recording period LCD panel will turn off to save power.)
Stop Recording
1. While recording, hold the OK button until the LCD turns on and shows
the text "Processing", it means the camera is processing file closing. When
completed the processing it will display the text "Ready" This indicates the
recording session is complete.
2. Remove the SD card from the camera, and insert it into your computer
or laptop to enjoy your amazing Time Lapse Videos!
Menu Setting
AVI Frame Rate: You can change video FPS (frames per second) at this setting.
Generally, 10 FPS is better for Time Lapse video. 1 FPS: the video 1 second plays 1 frame
, so the video will look not smooth, and video length will longer. 30 FPS: the video 1
second plays 30 frame, so the video will look smooth, but video length will shorter.
Image Quality: Set the image quality for your camera. Custom Exposure: Increase or
decrease the exposure. Time Stamp: You can choose if you want to show time stamp
at bottom of video. Low Light Recording: You can choose if enable your camera keep
recording video in a low light environment ( < 5 Lux.) or not. Scene: Select the scene to
fit your Photographic needs. Timer: The Timer will allow you to pre-set a recording
period.(ONCE YOU ACTIVATE TIMER, YOUR TIME LAPSE CAMERA WILL ONLY WORK AT
THE TIMER SETTING PERIOD.) Set Date and Time: Set correct date and time for your
camera. Output Resolution: You can change video resolution at this setting. LED
Display: You can choose if the LED indicator will flash while capturing frame. Band
Filter: Select the correct lighting frequency to match your indoor lighting frequency.
None: For outdoor environment. 50 Hz: USA 60 Hz: Europe Firmware Version: Display
the current firmware version of camera. Media Statistics: In this mode, the LCD will
display the SD card capacity, so you will know how much free space remains on the SD
card. Reset: You can reset your camera back to default setting.
LED Indicator
Green LED light:
Red LED light:
Length of battery usage
Time Interval
ASAP
1 Second
5 Seconds
10 Seconds
20 Seconds
30 Seconds
1 Minute
5 Minutes
10 Minutes
30 Minutes
1 Hour
4 Hours
24 Hours
Specifications
[CAMER]Model: TLC 200 Output Format- Video Mode: AVI format, Resolution: 720P, 640x480 (The
maximum size of each single AVI file is in a range between 8,192 to 20,480 frames, it depends on
time interval setting.) Still Image Mode(Only for using Shutter Line): JPEG format, Resolution: 720P,
640x480 format Field of View: 59º Focal Length: 36mm(35mm equivalent) Focus Distance:
75cm(Minimum) Time Interval: from 1sec to 24hours Memory Storage: SD Card(Supported up to
32GB) LCD Screen: 1.44 TFT LCD Power Source: DC IN: 5V (Micro USB connector)/ Battery: 4AA
Batteries Size (DxWxH): 64x46x106mm Weight: 120g (without batteries)
[CAMER]Model: TLC 200 f1.2 LCD Screen: 1.44" TFT LCD Lens Rotating angle: 120° Waterproof:
Optional(In use with Weather Resistant housing ATH110) [CAPTURE MODE]Time Lapse Auto
generate TimeLapse Video Stop Motion Optional(In use with Shutter Line ATS100) Motion
Activated Optional(In use with Motion Sensor ATM100) [OPTICS LENS]Aperture: f1.2 Lens Type:
Aspherical Lens Field of View: 140° Focal Length: 18 mm (35mm equivalent) Focus Distance: 30
cm (Minimum) [RECORDING]Time Lapse Video Format: AVI Resolution: 1280x 720, 640x 480 Still
Image Format: JPEG (only for using Shutter Line) Resolution: 1280x 720, 640x 480 Memory
Storage: SD Card (Supported up to 32 GB) [Time Interval]ASAP 0.5~1 second Custom From 1
second to 24 hours [Power]Power source: Battery: 4 AA Batteries DC IN: 5V (Micro USB connector)
Battery Life Refer to the length of battery usage [Dimension]Size: (DxWxH) 64x 46x 106 mm
Weight: 120 g (without batteries)
Indicates Image capture in process When the
Green LED flashes, the Time Lapse Camera is
capturing photos.
Low battery level, Low recording space on your
SD card.
Capture Frames Battery Life
270000 2.2 Days
245000 2.8 Days
228000 13 Days
197800 23 Days
137400 32 Days
105200 36 Days
61800 43 Days
14300 50 Days
9180 64 Days
3700
1868
78 Days
468
78
