Aluminum Cabinet
Thank you for purchasing the Jacuzzi® Aluminum Cabinet. Please follow the installation and care guide to
ensure your aluminum cabinet is fitted safely and retains its high quality finish.
Please retain this leaflet for future reference.

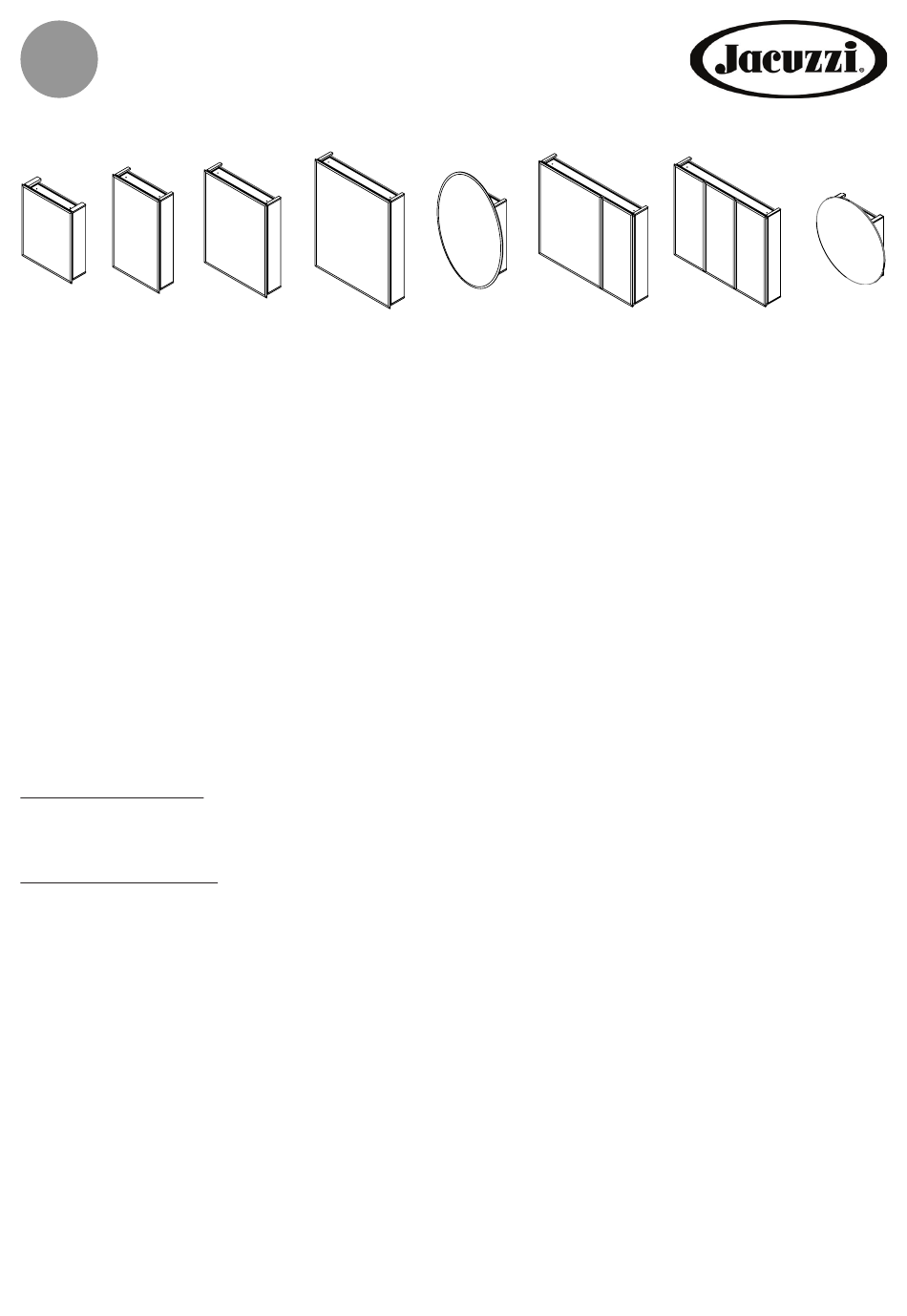

This installation guide applies to the following cabinets:
PD40000 - Aluminum Recessed & Surface Mounted Cabinet 16" x 20"
PD45000 - Aluminum Recessed & Surface Mounted Cabinet 15" x 26"
PD41000 - Aluminum Recessed & Surface Mounted Cabinet 20" x 26"
PD42000 - Aluminum Recessed & Surface Mounted Cabinet 24" x 30"
PD43000 - Aluminum Recessed & Surface Mounted Oval Cabinet 21" x 31"
PD44000 - Aluminum Recessed & Surface Mounted Bi-View Cabinet 30" x 26"
PD46000
Aluminum Recessed & Surface Mounted Tri-View Cabinet 24" x 26"
-
PD47000 - Aluminum Recessed & Surface Mounted Tri-View Cabinet 30" x 26"
PD48000 - Aluminum Recessed & Surface Mounted Tri-View Cabinet 36" x 26"
PD49000 - Aluminum Recessed & Surface Mounted Bi-View Cabinet 24" x 26"
RQ29000 - Aluminum Recessed & Surface Mounted Round Cabinet 25½" x 25½"
Tools required - not supplied
SURFACE MOUNTED
Pencil; Tape Measure; Philips Screwdriver; Flat Head Screwdriver; Adjustable Wrench ; Drill; 5/16" Drill Bit,
27/64" Drill Bit; (Ceramic drill bit optional).
RECESSED MOUNTED
Pencil;Tape Measure; Level; Hole Saw; Saw; Screwdriver; Stud and Power Cable Detector.
KEEP ALL TOOLS OUT OF THE REACH OF CHILDREN
Home Safety Advice
- It is recommended that two people install this product to ensure that it is installed safely.
- Always take care when using power tools, particularly in the bathroom.
- Always check for hidden cables and pipework before drilling and take extreme care if there is any
water in the working area.
- Always wear suitable eye protection when drilling.
- If the product is to be fitted on a ceramic tiled wall, a ceramic drill bit should be used.
- Always ensure that the drill hole passes through the central tiled area rather than through the grouted
area. To prevent damage to the tile, mask the area around the hole with tape before drilling.
- Do not strike the product with hard or sharp objects.
Product Care
To retain the best quality finish, clean product regularly with a soft damp cloth.
Do not use abrasive or chemical cleaners as these will damage the product.
1
CAB 104 R12
