Samsung SolarCell Remote Guide Rapide

ENG

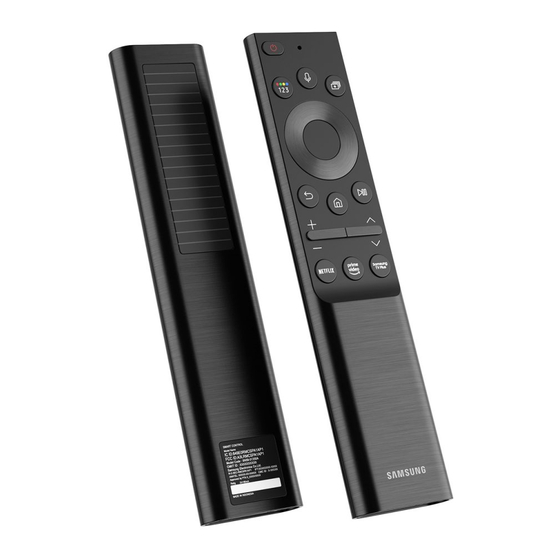

About the Samsung SolarCell Remote (Samsung Smart Remote)
Solar Cell
Expose to light when the remote
is not in use. This will extend the
remote's operating time.
USB port (C-type) for charging
Used for quick charging. The LED on the front will light
when charging. When the battery is fully charged, the
LED will turn off.
• The USB Cable is not provided.
Fire or explosion may occur, resulting in damage to the remote control or personal injury.
• Do not apply shock to the remote control.
• Be careful not to let foreign substances such as metal, liquid, or dust come in contact with the charging terminal of the
remote control.
• When the remote control is damaged or you smell smoke or burning fumes, immediately stop operation and then repair it at
the Samsung service center.
• Do not arbitrarily disassemble the remote control.
• Be careful not to let infants or pets suck or bite the remote control. Fire or explosion may occur, resulting in damage to the
remote control or personal injury.
Button
Press to turn the TV on or off.
For The Frame model, When watching TV, press to switch to Art mode. In Art mode, press to switch to the
-00 (Power)
Home screen. Press and hold to turn off the TV completely.
Used as MIC when using voice recognition with the remote control.
When charging the remote control via the USB port, the LED is lit if charging is in progress. When charging is
1 MIC / LED
complete, the LED is turned off.
• Do not impact the MIC hole or use a sharp object to poke into the hole.
Runs Voice Assistant. Press and hold the button, say a command, and then release the button to run Voice
Assistant.
• The supported Voice Assistant's languages and features may differ by geographical region.
(Voice Assistant)
1
[ Keep the remote more than 0.6 inches (15.24 mm) from your face when using and speaking to Voice
You can access Settings menu / virtual numeric pad / Color buttons / Option pad / SmartThings app directly.
• Accessing the SmartThings app using this button may not be supported, depending on the model.
2
• Use this button to access additional options that are specific to the feature in use.
(Settings - Number -
3
• Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric
Color button)
2 Directional button
Use to navigate the menu or move the focus to highlight items on the Home Screen.
(up, down, left, right)
Selects or runs a focused item. When pressed while you are watching a broadcast program, detailed program
3 Select
information appears.
Press to return to the previous menu. When pressed for 1 second or more, the running function is terminated.
(Return)
When pressed while you are watching a program, the previous channel appears.
4 (Smart Hub) Press to switch to the Home Screen.
When pressed, the playback controls appear. Using these controls, you can control the media content that
is playing.
(Play/pause)
To use Game Bar, press and hold the button in Game Mode.
• Game Bar may not be supported depending on the model or geographical area.
Move the button up or down to adjust the volume. To mute the sound, press the button.
When pressed for 2 seconds or more, the Accessibility Shortcuts appears.
(Volume)
•
Move the button up or down to change the channel. To see the Guide screen, press the button. When pressed
for 1 second or more, the Channel List screen appears.
(Channel)
Press and hold the button up or down to quickly change the channel.
Launch the app indicated by the button.
4 Launch app button
• Available apps may differ depending on the geographical area or contents provider.
If the Samsung Smart Remote does not pair to the TV automatically, point it at the front of the TV, and then
+ (Pairing)
press and hold the
– Use the Samsung Smart Remote less than 20 feet (6 m) from the TV. The usable distance may vary with the wireless environmental
conditions.
– The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
– The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the TV.
– It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of the product. In this
case, the warranty service is not applicable.
– When the remote control does not work due to low battery, charge it by using the USB-C type port.
– If the orientation of the remote control is incorrect, some TV models may display an alert asking users to hold it correctly. To turn off the
alert, access Remote Grip Sensor (
Saving > Remote Grip Sensor)
Description
Assistant through the mic on the remote.
values. Select numbers and then select Done or Enter Number to enter a numeric value. Use to change
the channel, enter a PIN, enter a ZIP code, etc.
may not be present, depending on the model.
and buttons simultaneously for 3 seconds or more.
> (left directional button) > Settings > All Settings > General & Privacy > Power and Energy
