STP CAF1704 Guide Rapide

Difficulty Rating
Note de difficulté
Calificación de dificultad
Application: Application: Aplicación:
Chevrolet Venture | Oldsmobile Silhouette | Pontiac Transport, Transport Montana
3
Installation Bulletin | Bulletin d'installation | Boletín de Instalación
CAF1704/CAF7704

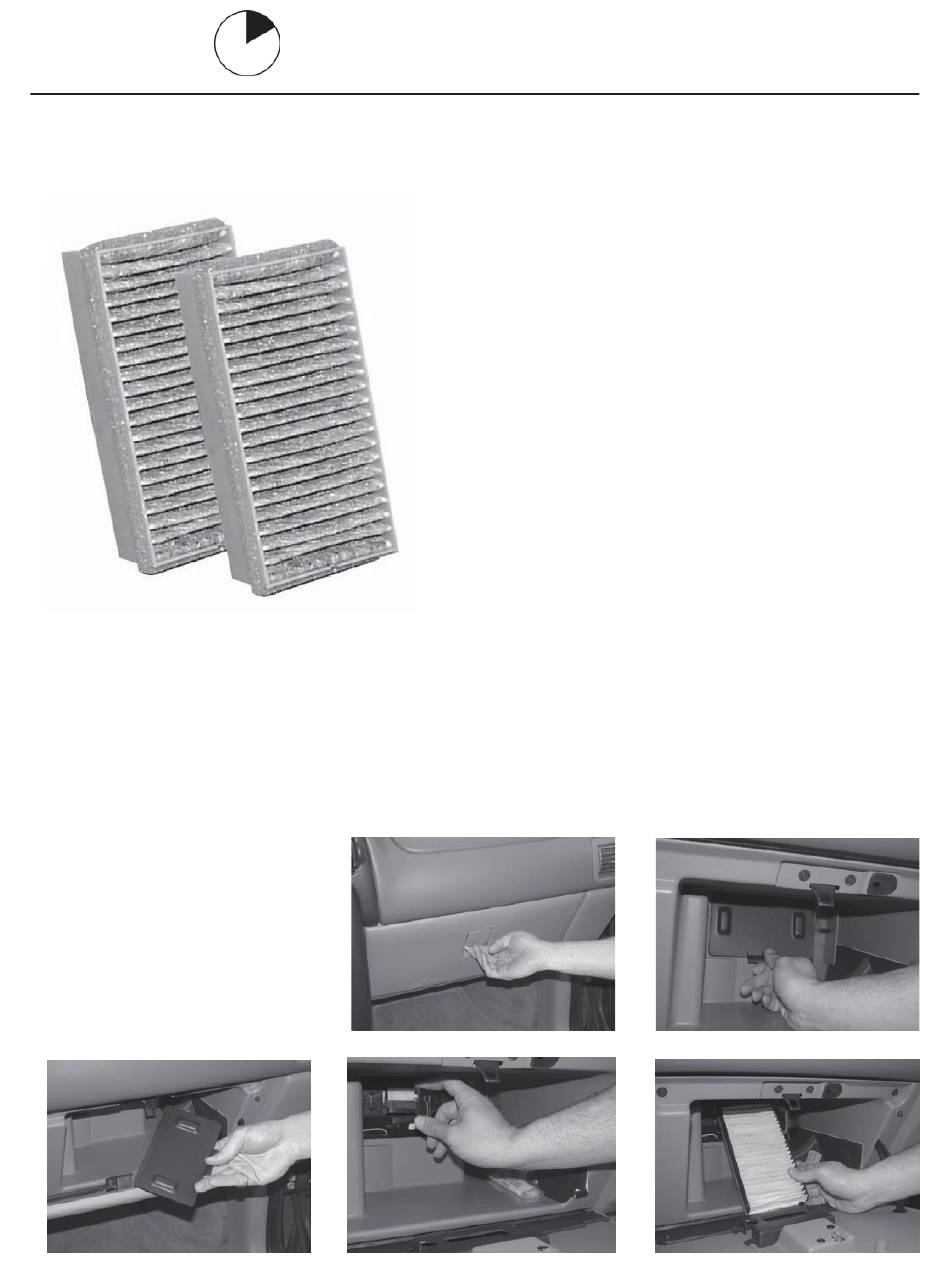

Carbon filter replaces particulate.
Location of cabin filters:
Inside of the glove compartment behind the air filter access door on
the passenger side of the vehicle.
Tools:
Not required.
To remove existing filters:
1. Open the glove compartment door. (Fig.1)
2. Inside the glove compartment: locate the removable panel on the
left hand side of the glove compartment. (Fig. 2)
3. Pull out on the tab on the bottom of the panel to remove the panel
as shown in Fig. 2 and Fig. 3.
4. Located behind the panel is the filter access door. (Fig. 4)
5. Pull out on the latch on the left hand side of the filter access door
and open the filter access door to the right as shown in Fig. 4.
6. Remove the two filters from the filter compartment as shown in
Fig.5.
7. Reverse procedure to install new filters.
1
4
2
5
08-08
