c) Reset the wireless doorbell
• You can pair a maximum of 4 senders with the wireless doorbell. In case you have already paired 4
senders with the wireless doorbell and you want to replace one of the sender with a new one, proceed
as follows:
• Reset the wireless doorbell, otherwise you cannot pair further senders. To do so remove the batteries from
the wireless doorbell. Wait approx. 10 seconds before putting the batteries back in.
• Then pair all senders again with the wireless doorbell.
d) Use several wireless doorbells
• The wireless doorbell set can be expanded with several more wireless doorbells (not supplied). Once you
have started up the wireless doorbell set, insert the batteries into the additional wireless doorbell to be
added. Hold the LR button (7) for approx. 4 seconds. Activate the sender within 10 minutes. The wireless
doorbell is able to save the frequency.
Due to the signal processing time of the wireless doorbells, the ring tone of the individual
wireless doorbells is emitted with a slight time delay (max. 2.5 seconds).
Installation
The range between the sender and wireless doorbell depends on the reception conditions.
Normally, it is possible to run this device without a problem in a detached house. We recommend
that you check that the product functions correctly before final installation.
When drilling or screwing, make sure that no cables or wires are damaged. Danger of electric
shock and injury!
a) Sender
• Attach the sender using the supplied screws and dowels to a smooth, dust-free surface.
• Remove the housing cover from the bottom plate of the sender by pushing the lock tongue in through the
opening on the side. Pull off the housing cover.
• Use the bottom plate as a template and mark the position of the two screw holes on the installation surface.
Observe the orientation. The rectangular locking slot shall be facing downward in order to avoid
water seeping into the housing and cause damage such as short circuits etc.
• Drill the two holes in the wall and insert the dowels.
• Mount the mounting plate with the two screws onto the surface. The countersunk drill holes in the bottom
plate have to point away from the mounting surface.
Depending on the mounting surface, it is recommended to insert washers between the mounting
surface and the mounting plate. This prevents the sender and wireless doorbell getting scratched
during installation.
• Place the sender's housing on the mounting plate and push it down. The housing cover of the sender must
audibly lock into place.
• Remove name plate cover by pulling it off the top. Write a name on the paper provided inside the cover.
Cover it with the plastic rain protector sheet and push down the frame of the name plate cover to fix it on.
b) Wireless doorbell
• Attach the wireless doorbell using the supplied screws and dowels to a smooth, dust-free surface.
• Remove the bottom plate from the back of the wireless doorbell by pushing it down.
• Use the mounting plate as a template and mark the position of the two screw holes on the installation
surface.
• Drill the two holes in the wall and insert the dowels.
• Mount the mounting plate with the two screws onto the surface. The countersunk drill holes in the mounting
plate have to point away from the mounting surface.
• Alternatively you can place the wireless doorbell on a stable, even surface.

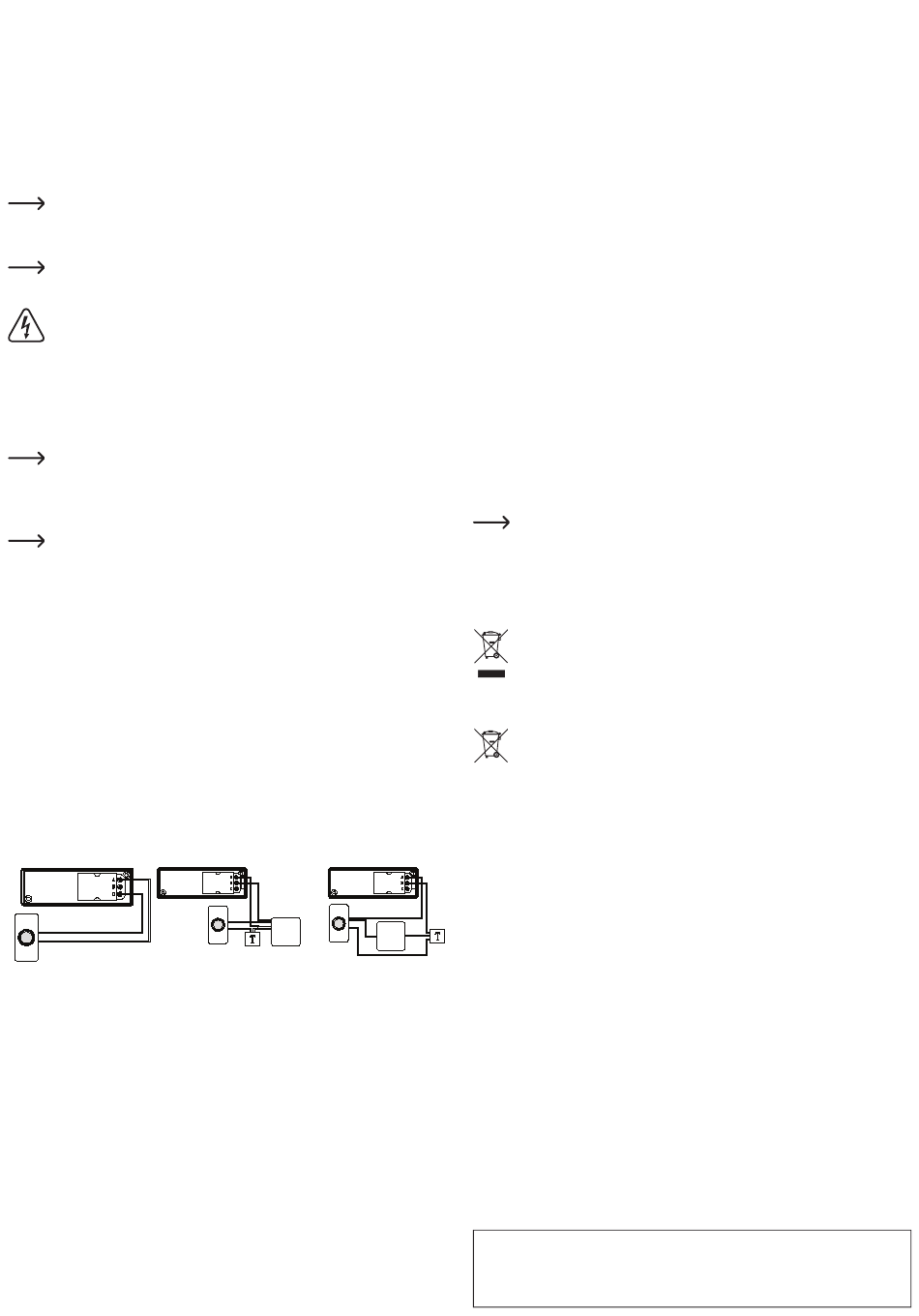

c) Connecting the sender as switch for an existing bell system
A) You can connect the sender as
B) You can connect the sender as a mere switch to an existing wired
a mere switch of an existing bell
doorbell already installed See diagrams B) & C) below.
system. See diagram A) below.
A)
B)
Settings
a) Ring tone
• You can choose from 8 different ringtones for the wireless doorbell: 1. Ding Dong Dong, 2. Ding Dong,
3. Dog bark, 4. Fanfare, 5. Telephone ring, 6. Melody, 7. Westminster, 8. Saxophone
• Open the battery compartment (13) of the sender.
• To change the ringtone click on the Sound button (12). The wireless doorbell emits the ring tone via its
speaker (3). Repeat this process until the desired ring tone is played back.
b) Volume
• Open the battery compartment (8) on the reverse of the wireless doorbell.
• Set the desired volume using the volume control (5):
Hi = high volume; Med = medium volume; Lo = low volume
c) Bell/flashlight
• Open the battery compartment on the reverse of the wireless doorbell.
• You have 3 options which you can select using the slide switch (6).
• Switch setting Bell: The flashlight is switched off and is not activated when the sender is activated. Only
the set ring tone is emitted.
All manuals and user guides at all-guides.com
• Switch setting Flash: The flashlight is switched on and is triggered when the sender is activated. In the
• Switch setting Bell+Flash: The flashlight is switched on and is triggered when the sender is activated. In
Range
• The range of the wireless signal transmission between the sender and a wireless doorbell is up to 150 m.
The range may be reduced by the following:
• Walls, reinforced concrete ceilings
• Coated or metallised insulating glass
• Nearby metallic and conductive objects (e.g. radiators)
• Human bodies in the area
• Broadband disturbances, e.g. in living areas (DECT telephones, mobile phones, wireless headphones,
• Nearby electric motors, transformers, power adaptors and computers
• Computers or other electronic device which are badly shielded or in operation
Maintenance and cleaning
• The product is maintenance-free apart from any change of battery that may be necessary, and occasional
• Use a clean, dry and lint-free cloth for cleaning. When cleaning, do not apply too much force to the surface,
• Under no circumstances should you use aggressive cleaning agents, alcohol or other chemical solutions,
Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product
conforms to the 2014/53/EU directive.
Select a language by clicking on a flag symbol and enter the product order number in the search box. You
can then download the EU declaration of conformity in PDF format.
Disposal
a) Product
b) Batteries
Used batteries can be returned to collection points in your municipality, our stores or wherever batteries
are sold.
You thus fulfil your statutory obligations and contribute to the protection of the environment.
C)
Technical data
a) Sender
Power supply ....................................... 1 x 3.0 V/DC lithium battery, type CR123A (included in delivery)
Battery life ............................................. approx. 5 years
Transmission frequency........................ 433 MHz
Range .................................................. up to 150 m (sender <—> wireless doorbell; free-field)
Dimensions (W x H x D) ....................... approx. 94 x 32 x 25 mm
Weight .................................................. approx. 46 g
b) Wireless doorbell
Power supply ....................................... 2 x 1.5 V/DC batteries, type C / Baby (not supplied)
Battery life ............................................. approx. 1 year
Transmission frequency........................ 433 MHz
Sound pressure levels .......................... 70 dBA (set to Lo), 80 dBA (set to Mid), 90 dBA (set to Hi)
Dimensions (W x H x D) ....................... approx. 92 x 143 x 36 mm
Weight .................................................. approx. 165 g
c) General
Operating conditions ............................ 0 to +40 °C, 10 - 80 % relative humidity
Storage conditions ................................ 0 to +60 °C, 10 - 80 % relative humidity
setting a ring tone is not emitted. The flash will last for approx. 15 seconds.
addition the set ring tone is also emitted.
This figure, however, refers to the distance between a sender and a wireless doorbell which are within sight
of each other and where there are no interfering influences. In practical situation, there are usually walls,
ceilings etc. between the sender and the wireless doorbell, which correspondingly reduce the range. Due
to the different influences on the radio transmission it is unfortunately not possible to guarantee a particular
range. Normally, however, it is possible to use this in a detached house without a problem.
baby monitoring systems etc.)
cleaning.
so that you avoid scratches. Dust is very easy to remove with a clean, long brush and a vacuum cleaner.
as they can damage the casing.
Click on the following link to read the full text of the EU declaration of conformity:
www.conrad.com/downloads
Electronic devices are recyclable waste and must not be disposed of in the household
waste. At the end of its service life, dispose of the product according to the relevant statutory
regulations.
Remove any inserted batteries and dispose of them separately from the product.
You as the end user are required by law (Battery Ordinance) to return all used batteries.
Disposing of them in the household waste is prohibited.
Batteries that contain hazardous substances are labelled with this symbol to indicate that
disposal in the domestic waste is forbidden. The designations for the heavy metals involved
are: Cd = Cadmium, Hg = Mercury, Pb = Lead (name on batteries, e.g. below the trash icon on
the left).
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in
electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
This publication represent the technical status at the time of printing.
Copyright 2016 by Conrad Electronic SE.
*1462836_v2_1016_02_DS_m_(1)_4L
