STACK-ON SECURITY PLUS GCD-924-5 Directives D'assemblage

IMPORTANT:
Record the serial and key numbers from the back of the
cabinet. You will need the serial number information in order
to replace lost keys.
Do not store this document in your security cabinet.
Keep keys in a secure place away from children.
NOTE:
Assemble shelving and barrel rests before
mounting the cabinet to a wall or floor. Exterior access is
required for assembling these items. Review these
instructions prior to installation.
SHELF ASSEMBLY
IMPORTANT: Install the shelves first.

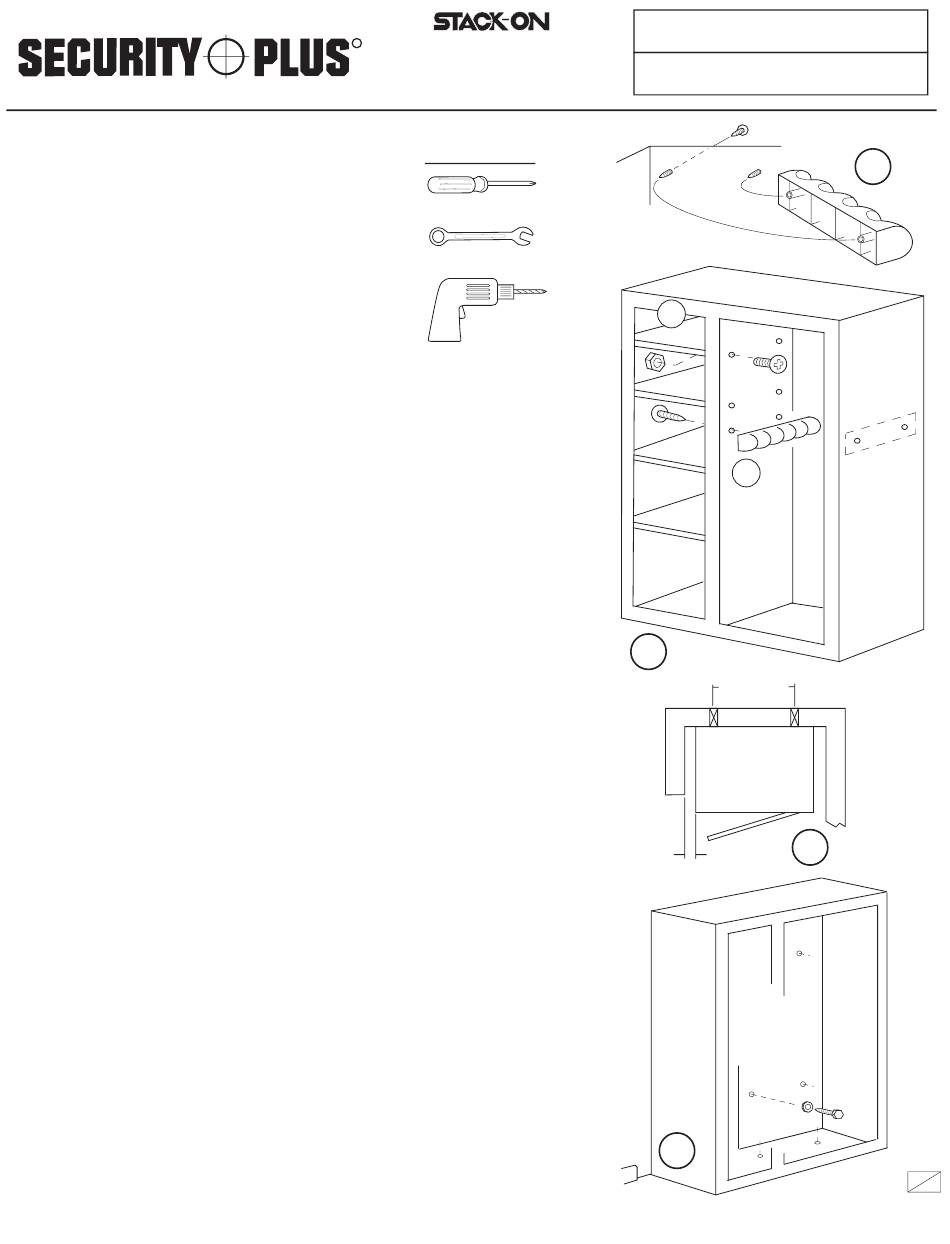

Assemble each shelf (A) with (4) 10-32 nuts and bolts. (Figure 2)
INSTALLATION OF BARREL RESTS
THE BARREL RESTS MUST BE INSTALLED BEFORE MOUNTING THE CABINET TO A
WALL AND BEFORE INSTALLING THE FOAM LINING.
Install the barrel rests (B) to the cabinets as shown. (Figure 2)
To install the barrel rest on the inner right side of the cabinet, follow the steps below.
1. Thread the screws into the pilot holes from the outside of the cabinet. (Figure 1)
2. Align the holes of the barrel rest over the tips of the screws and lightly press the barrel
rest into place. (Figure 1)
3. Now tighten the screws from the outside of the cabinet. Tighten each screw partially,
alternating from one screw to the other until they are both tight. Do not over tighten.
The inside wall of the cabinet has clearance holes for the screws. There will be adequate
access to assemble the barrel rest using both hands. (Figure 2)
CABINET MOUNTING INSTRUCTIONS
Selecting a Location
Your Security Cabinet should be installed in an isolated, dry and secure area.
For greater security the cabinet must be fastened to a solid surface with a minimum space on
either side. Ideally the cabinet would be installed on the side wall of a closet. (Figure 3)
The cabinet should be flat against the wall and floor. Remove the baseboard if necessary.
(Figure 4)
Insert the plastic plugs in the cabinet's top mounting holes if you are not installing the Pistol-
Ammo cabinet on the top of the gun cabinet.
Wall Mount Option
The (4) mounting holes in the rear of the cabinet must line up with the 16" centers of the wall
studs. Drill new holes in the cabinet if necessary. (Figure 4)
Drill (4) 3/16" pilot holes into the wall studs and secure the cabinet to the wall using (4 ea.) lag
bolts and washers. (Figure 4)
Floor Mount Option
The (4) mounting holes in the rear of the cabinet must line up with the 16" centers of the wall
studs. Drill new holes if necessary. (Figure 4)
Drill (2) 3/16" pilot holes into the wall studs lining up with the top (2) mounting holes in the back of
the cabinet. Secure the cabinet to the wall using (2) lag bolts and washers.
Drill (2) pilot holes and secure the cabinet bottom to the floor with (2) lag bolts and washers.
