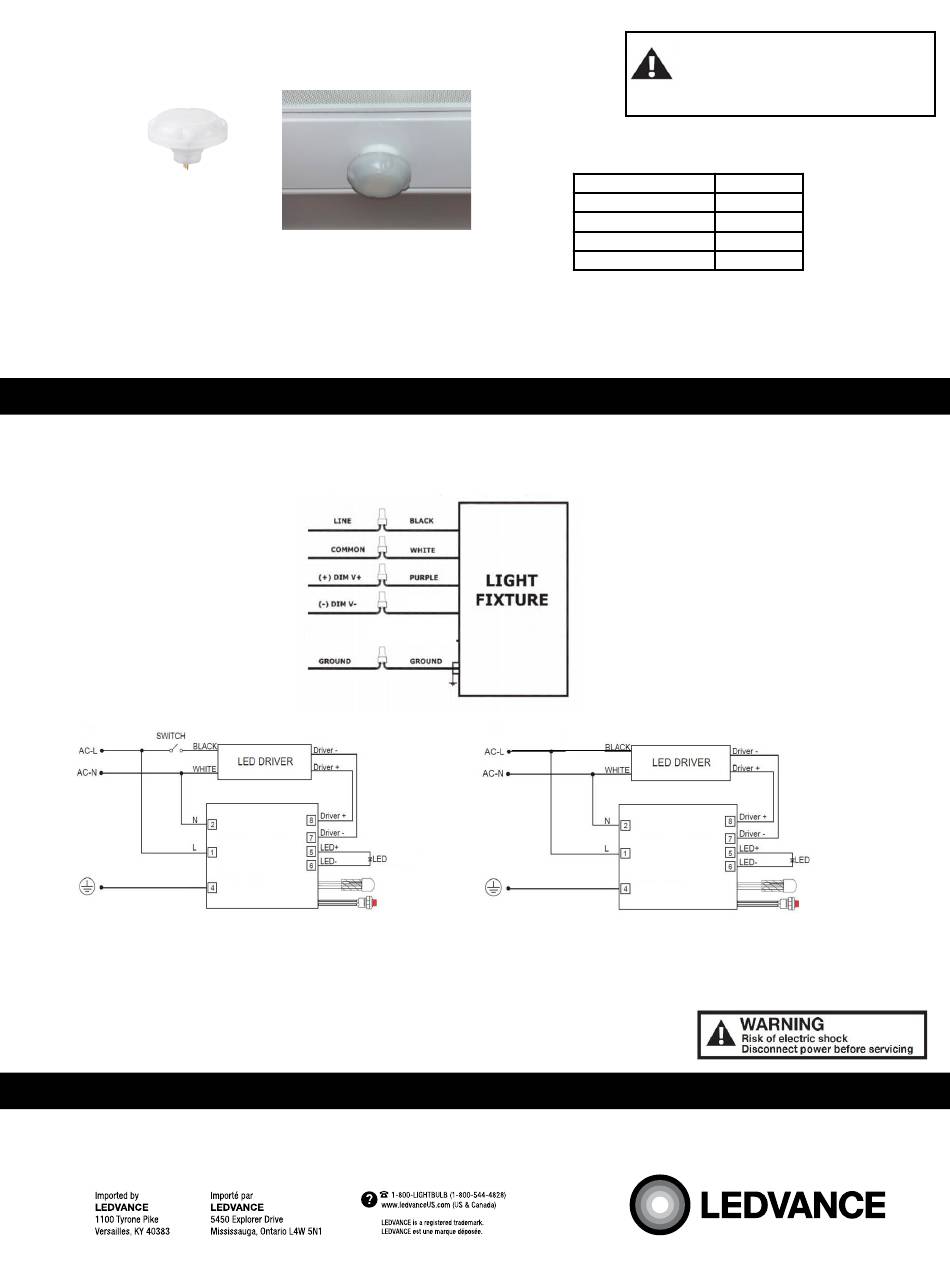

3. Remove the protective sleeve covering the motion sensor pins and
gently screw the motion sensor into the threads of the sensor
housing.
Motion Sensor
Wiring Diagram
This fixture is compatible with 0-10V output dimming controls (please reference Dimmable Compatibility List LEDLUM012).
To get to 0% light output (OFF) it is necessary to switch the input power to the LED drivers.
Connect wall dimmer to dimming wires on driver. (See Wiring Diagram)
Emergency Wiring Diagram - Switched
CLEANING AND MAINTENANCE
• To maintain the fixture efficacy occasional cleaning of the outer lens surface may be needed.
• Use a mild soap or detergent, which is essentially neutral pH (pH approximately 6 to 8), nonabrasive, and
which contains no chlorinated or aromatic hydrocarbons.
• Wash thoroughly, using a soft cloth.
• Rinse with clean, cold water and wipe dry.
TROUBLE SHOOTING CHECKLIST: If luminaire does not work
– Check your power source.
– Check electrical connections.
PINK
Wiring Diagram
EMBB
Default sensor settings*:
Detection Area
Hold Time
Daylight Threshold
Stand-by Period
Stand-by Dimming
*Note: Changing the sensor settings
can only be achieved using the
optional remote – NAED 65623
EMBB
Emergency Wiring Diagram – Un-Switched
Finger tighten the sensor
ONLY, Do Not overtighten the
sensor as damage may occur
100%
10 Minutes
50 Lux
60 Minutes
30%
