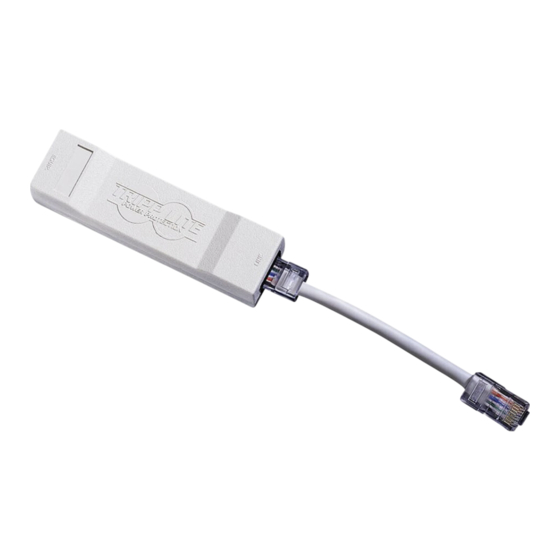

Tripp-Lite DHUB-18V Guide D'utilisation

Limiteurs de surtension pour ligne de données en réseau

Publicité

Les langues disponibles

Les langues disponibles

Liens rapides

Network Dataline Surge Suppressors
Tripp Lite Network Dataline surge suppressors are designed to protect data and communications
equipment against AC transients caused by lightning, electrostatic discharge and ground surges
that can enter equipment from the signal lines or chassis ground.
Select from the Tripp Lite Network Dataline surge suppressors described in this manual to
protect virtually any networked equipment connected to 100-Base-T, 10Base-T, 10Base-2 and
10-Base-5 Ethernet, Token Ring, RS232, RS422/423/485, parallel, dial-up modems, fax, ISDN,
DDS, T-1, USB or most any other communication interface.
Installation
1. Make sure the computer, network device or other equipment is logged OFF the network (if
applicable). Turn OFF power to the equipment.
2. Disconnect the cable from the equipment to be protected.
3. Connect the Tripp Lite Network Dataline surge suppressor directly to the equipment. DB9
and DB25 models are reversible, to work with male or female ports. To change gender,
remove the thumbscrews, reverse their direction and reinstall.
4. Attach the green ground wire on the surge suppressor directly to the protected equipment's
chassis. (Except DB9, DB15, DB25 and DUSB models.)
5. Reconnect the cable to the Tripp Lite Network Dataline surge suppressor.
NOTE!: The Tripp Lite Network Dataline surge suppressor must be properly grounded and
positioned as close as possible to the equipment to be protected. For best results, it is required that
the length of the signal line and ground wire (if equipped) between the surge suppressor and the
protected equipment be kept as short as possible, not to exceed 12 inches (12"). It is best to install
the surge suppressor directly to the equipment, as noted above.
NOTE!: Installing a typical Tripp Lite Network Dataline surge suppressor is equivalent to
addingapproximately three feet (3') of typical data communication cable to a segment.
Tripp Lite Network Dataline surge suppressors do not protect the equipment on the
opposite end of the cable. Normally, protection at both ends is recommended.
Tripp Lite Network Dataline surge suppressors will only protect against surges on
the dataline portion of your installation. Simultaneous AC surge suppression/power
protection in the form of an ISOBAR
strongly recommended for complete system/network protection and can also extend
Ultimate Lifetime Insurance coverage to connected equipment.
All manuals and user guides at all-guides.com
Owner's Manual
Español: p. 5 • Français: p. 9
CAUTION!
CAUTION!
®
surge suppressor or Tripp Lite UPS system is
1

Publicité

loading

Sommaire des Matières pour Tripp-Lite DHUB-18V

  • Page 1 All manuals and user guides at all-guides.com Owner’s Manual Network Dataline Surge Suppressors Español: p. 5 • Français: p. 9 Tripp Lite Network Dataline surge suppressors are designed to protect data and communications equipment against AC transients caused by lightning, electrostatic discharge and ground surges that can enter equipment from the signal lines or chassis ground.
  • Page 2 7.5 volts, protecting wires 1-8 750 amps token ring RS422/423/485, on all ports AS400/Sys3x protector for hubs, repeaters, terminal servers, MUXs, MAUs, etc.* DHUB-18V: RJ45, 8-port 18 volts, protecting wires 1-8 340 amps RS 232 protector for on all ports multiport serial devices.* DRS232...
  • Page 3 All manuals and user guides at all-guides.com Specifications All surge suppressors listed have component response times of less than 1 picosecond. Nominal Clamping Peak Pulse Model Description Voltage Current DB25 Serial DB25 RS 232 protector 18 volts, protecting 340 amps (wires 1-8, 20) for male or pins 1-8, 20 and chassis female ports of data terminal...
  • Page 4 All manuals and user guides at all-guides.com Specifications All surge suppressors listed have component response times of less than 1 picosecond. Nominal Clamping Peak Pulse Model Description Voltage Current DUSB Serial USB-A protector for 7.5 VDC 200 amps male or female ports of computers and peripherals, including PCs, printers, hubs, etc.
  • Page 5 All manuals and user guides at all-guides.com Manual del propietario Supresores de sobretensiones para líneas de datos de redes Los supresores de sobretensiones para líneas de datos de redes de Tripp Lite están diseñados para proteger los datos y los equipos de comunicaciones contra transitorios de corriente alterna causados por rayos, descargas electrostáticas y sobretensiones transitorias a tierra que puedan introducirse al equipo desde las líneas de señal o desde la masa del chasis.
  • Page 6 Ethernet de 8 puertos, Token Ring en todos los puertos RS422/423/485, AS400/Sys3x para concentradores (hubs), repetidoras, servidores de terminales, MUXs, MAUs, etc.* DHUB-18V: Protector tipo RJ45, 18 voltios, protege hilos 1-8 340 Amp 8 puertos RS 232 para dispositivos en todos los puertos serie multipuerto.* DRS232...
  • Page 7 All manuals and user guides at all-guides.com Especificaciones Los tiempos de respuesta de los componentes de los supresores de sobretensiones listados son menores que 1 picosegundo. Voltaje de Corriente cresta Modelo Descripción fijación nominal de impulso DB25 Protector tipo serie DB25 RS 232 18 voltios, protege los 340 Amp (hilos 1-8, 20) para puertos de pines 1-8, 20 y el chasis terminal de datos con conector...
  • Page 8 All manuals and user guides at all-guides.com Especificaciones Los tiempos de respuesta de los componentes de los supresores de sobretensiones listados son menores que 1 picosegundo. Voltaje de Corriente cresta Modelo Descripción fijación nominal de impulso DUSB Protector tipo serie USB-A para 7.5 VDC 200 Amp puertos macho o hembra para computadoras y periféricos,...
  • Page 9 All manuals and user guides at all-guides.com Guide d'utilisation Limiteurs de surtension pour ligne de données en réseau Les limiteurs de surtension pour lignes de données en réseau Tripp Lite sont destinés à protéger l'équipement de données et de communications contre les transitoires c.a. provoqués par la foudre, une décharge électrostatique et les surtensions de terre qui peuvent pénétrer dans l'équipement à...
  • Page 10 Tension nominale Courant de Modèle Description de blocage crête DHUB/DHUB-18V DHUB : RJ45, éthernet 8-port, 7,5 volts, protégeant fils 1-8 750 A réseau à jeton RS422/423/485, sur tous les ports protecteur AS400/Sys3x pour moyeux, répéteurs, serveurs de terminal, MUX, MAU, etc.* DHUB-18 V : RJ45, protecteur 18 volts, protégeant fils 1-8...
  • Page 11 All manuals and user guides at all-guides.com Spécifications Tous les limiteurs de surtension ont des temps de réponse des éléments de moins d'une picoseconde. Tension nominale Courant de Modèle Description de blocage crête DB25 Protecteur en série DB25 RS232 18 volts, protégeant 340 A (fils 1-8, 20) pour ports mâles ou broches 1-8, 20 et bâti femelles de terminal de données...
  • Page 12 All manuals and user guides at all-guides.com Especificaciones Tous les limiteurs de surtension ont des temps de réponse des éléments de moins d'une picoseconde. Tension nominale Courant de Modèle Description de blocage crête DUSB Protecteur en série USB-A pour 7,5 V c.c. 200 A ports mâles ou femelles des ordinateurs et périphériques, y...
