CONNECTION
MOUNTING
Disconnect power supply by the phase fuse, the circuit-breaker or the switch-dis-
connector combined to the proper circuit.
Check if there is no voltage on connection cables by means of a special
measure equipment.

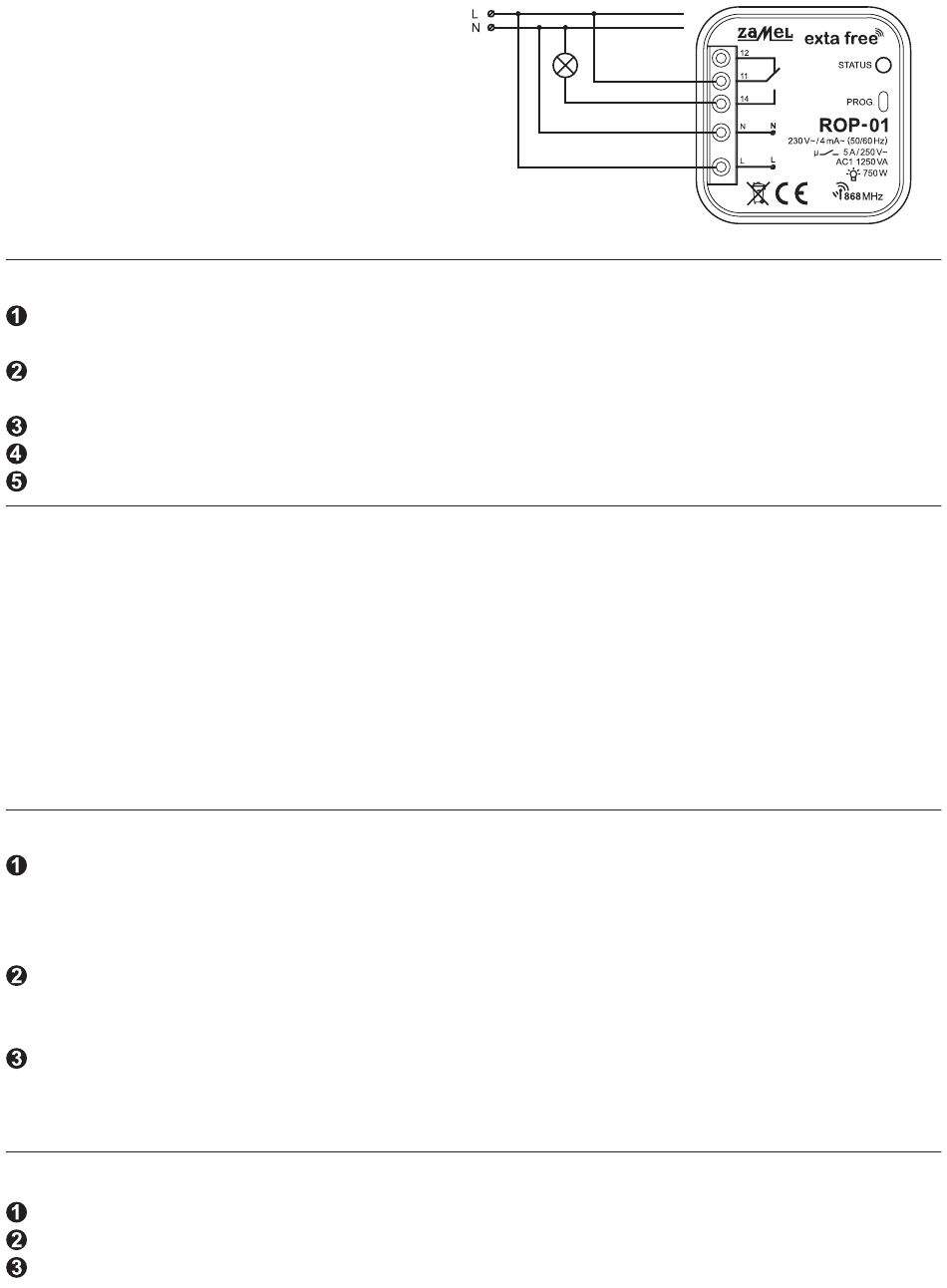

Connect the cables with the terminals in accordance with the installing diagram.
Install ROP-01 device in installation cable box.
Switch on the power supply from the mains.
OPERATION
The device can operate in five modes:
MONOSTABLE the relay operates only while pressing transmitter's push-button.
BISTABLE (one push-button) the device changes relay status cyclically always after
pressing the same push-button.
SWITCH ON the device switches on after pressing the push-button.
SWITCH OFF the device switches off after pressing the push-button.
TIME the device switches off according to the adjusted time (tp), but it may be
switched off before adjusted time finishes. Default settings - 15 seconds.
ATTENTION! Adjusted time will not be deleted.
TIME PROGRAMMING
Press PROG push-button of ROP-01 device for a longer time till LED red diode
switches on (constant signal). Next release PROG push-button. Wait (for about
5 seconds) till LED red diode switches on (first signal pulsates, next the signal
is constant).
Press PROG push-button of ROP-01 device and then release it. LED red diode
switches off and then switches on (signal pulsates). Every LED diode pulse
equals 1 second.
After the adjusted time is finished (the number of LED red diode flashes) press
PROG push-button and then release it - TIME IS ADDED.
Maximum time is 18 hours.
RADIO TRANSMITTERS DELETION
Press PROG push-button of ROP-01 device for a longer time.
After 5 seconds LED red diode switches on (signal pulsates) and then it switches off.
Release the push-button in ROP-01 - MEMORY IS DELETED.
220 ÷ 240 V~
