DPT-R-COMP
Parts List
x4
M6x16mm
60617
x4
M8 Nylon Shoulder washer
64000
610825
4x
Radar Plate
60085
4x
60080
4x
60857
4x
x2
Cable Grommet
101819
x1
Blanking Plug
101816
**APPLY BONDLOC B243 TO 6x M8x16mm**
610816
6x
64026
6x
Satcom / Camera Plate
101819
2x
Forward
ø50mm (2" )
22-06-18 Issue 3
x1
DPT gasket
19070
x1
Base Seal
19020
19070
4x M8 Fasteners (Not Supplied)
4x 64000
19020

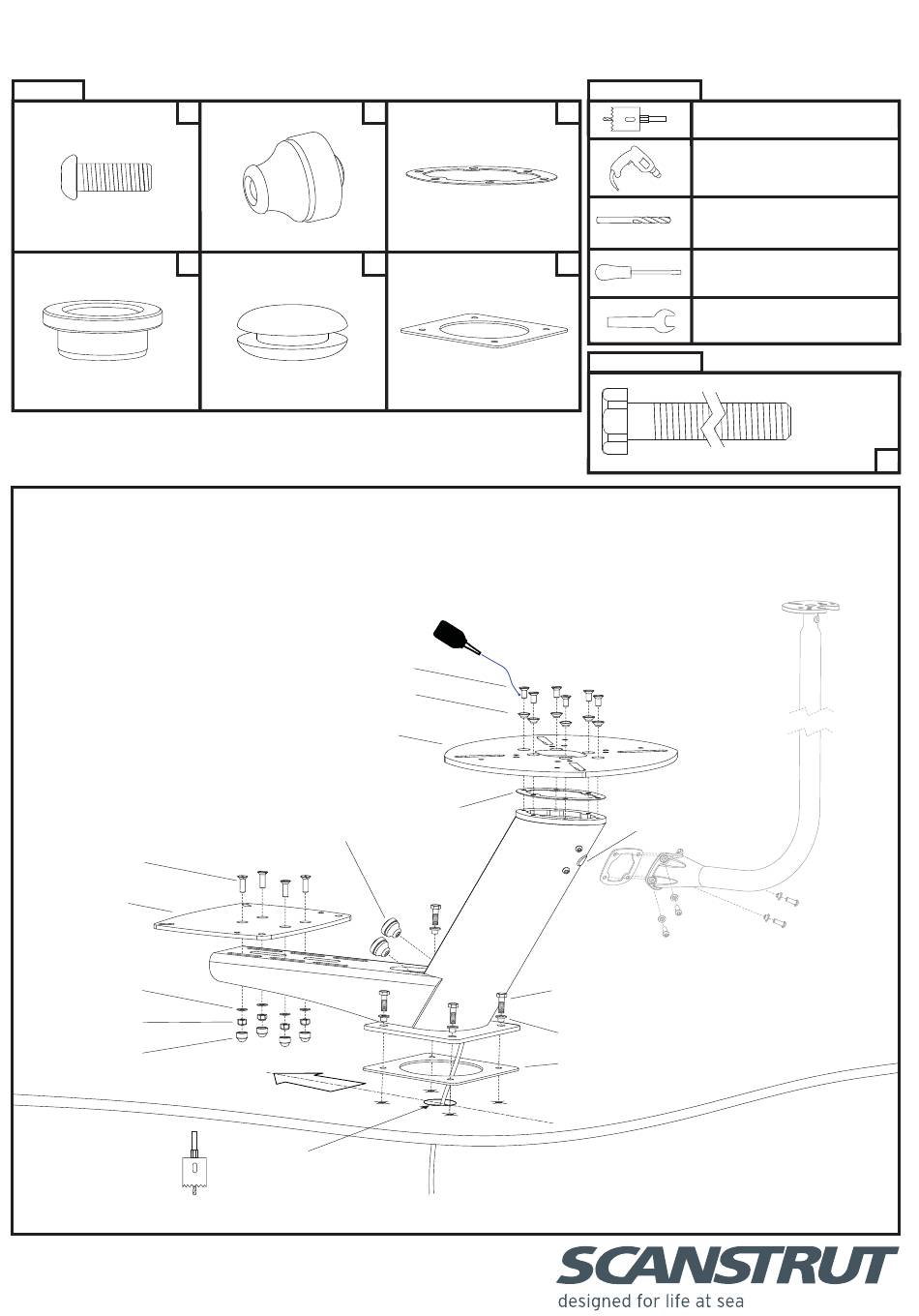

Installation Instructions
Dual PowerTower®
Tools Required
Hole Saw
ø50mm (2" )
Power drill
ø8.5mm (21/64") Drill Bit
8-10mm Flat Screwdriver
13mm Spanner
Parts Required
Optional Light bar
101816
M8 x 25mm+
x4
®
