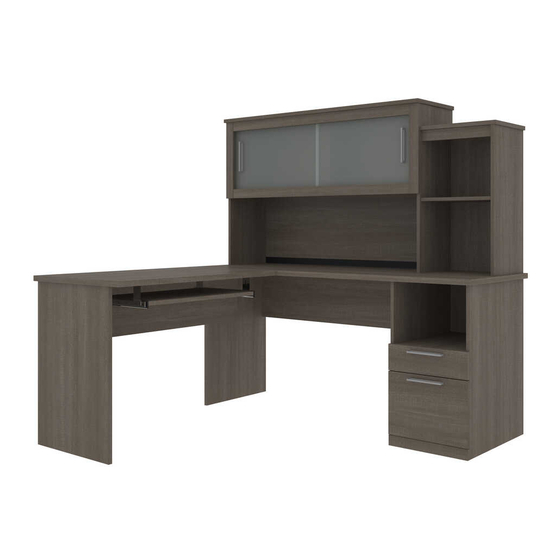

Bestar 88420-1169-1269 Mode D'emploi
Masquer les pouces
Voir aussi pour 88420-1169-1269:
- Instructions d'assemblage (32 pages) ,
- Instructions de montage (32 pages) ,
- Mode d'emploi (34 pages)
Manuels Connexes pour Bestar 88420-1169-1269
Sommaire des Matières pour Bestar 88420-1169-1269
- Page 1 MODEL 88420-1169-1269 CHOCOLATE : WWW.BESTAR.CA : 1-888-8BESTAR (1 888 823-7827) LEFT ASSEMBLY INSTRUCTIONS TC40B Certified...
- Page 2 Thank you for choosing a BESTAR product. Your total satisfaction is our #1 priority. Customer Service and warranty information do not call to the place of purchase Please call our customer service department for immediate assistance using the following toll free number: www.bestar.ca/services...
- Page 3 PARTS CODE / CÓDIGO QTY / QTÉ / CANT. CODE / CÓDIGO QTY / QTÉ / CANT. CODE / CÓDIGO QTY / QTÉ / CANT. CODE / CÓDIGO QTY / QTÉ / CANT. molding molding glass back panel bottom tools required the use of electric tools must be made two people are required to with vigilance.
- Page 4 HARDWARE CODE / CÓDIGO QTY / QTÉ / CANT. CODE / CÓDIGO QTY / QTÉ / CANT. CODE / CÓDIGO QTY / QTÉ / CANT. CODE / CÓDIGO QTY / QTÉ / CANT. Plastic runners 406 mm (16” REAL SIZE CODE / CÓDIGO QTY / QTÉ...
- Page 5 IMPORTANT NOTICE / Duly complete the self-adhesive sticker. / MODEL 00000-0000 TUSCANY BROWN : WWW.BESTAR.CA : 1-888-8BESTAR (1 888 823-7827) To better serve you! Model Production Number D ’ Customer Service 1-888-823-7827 TC40B 88 8BESTAR (1-888 823-7827) Certified www.bestar.ca Production : # 0000...
- Page 6 HARDWARE INSTALLATION / Desk / H-03 H-36 insert remove the screw to be used in step 4. PA-844 CO-249 Use these holes / Push plastic lever and slide out piece to be used for parts CA09A & CA03A in step 21 VE-244 Code / Código Qty / Qté...
- Page 7 IMPORTANT NOTICE / Main hardware system / Make sure to properly tighten each cam to ensure furniture solidity. Otherwise, parts could be damaged or the user could be injured. tighten insert tools required important PRE-ASSEMBLY / Desk / Assemble on the back edge Assembling sequence Parts / two people are required to...
- Page 8 HARDWARE INSTALLATION / Desk / PA-844 H-03 H-36 VR-210 EQ-143 Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 9 PRE-ASSEMBLY / Desk / Assemble upside down two people are required to assemble and move this model. Assembling sequence Use the remaining screws from step 1. Parts / 70 33 + inside view / vue intérieure vista de la parte interior VC-204 important / importante tighten...
- Page 10 HARDWARE INSTALLATION / Desk / H-03 PA-844 insert remove the screw to be used in step 6. H-36 Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 11 PRE-ASSEMBLY / Desk / Assemble upside down two people are required to assemble and move this model. Assembling sequence Parts / Use the remaining screw from step 5. important / importante tighten insert : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 12 ASSEMBLY / Desk / Assembling sequence Parts / VR-212 without pre-drilled hole VR-210 two people are required to assemble and move this model. Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 13 HARDWARE INSTALLATION / Hutch / molding / molding / molding / EX-830 H-36 H-03 Code / Código Qty / Qté / Cant. x 17 x 24 : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 14 PRE-ASSEMBLY / Hutch / Assembling sequence important / importante Parts / molding / molding / tighten insert molding / molding / molding / VR-212 molding / Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 15 HARDWARE INSTALLATION / Hutch / side/côté/lado “A” EX-830 side/côté/lado “B” H-03 unfinished edge side/côté/lado “A” side/côté/lado “B” EX-766 CL-140 Code / Código Qty / Qté / Cant. x 10 : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 16 PRE-ASSEMBLY / Hutch / Assemble on the back edge important / importante Assembling sequence Parts / tighten 35 20 insert VC-204 two people are required to assemble and move this model. Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 17 HARDWARE INSTALLATION / Hutch / H-36 H-03 glass VR-448 VR-448 glass glass glass PO-778 Plastic Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 18 PRE-ASSEMBLY / Hutch / Assemble on the back edge Assembling sequence Parts / VR-212 important / importante tighten insert Code / Código Qty / Qté / Cant. : 1-888 8BESTAR (1-888 823-7827) ERVICE ERVICIO...
- Page 19 PRE-ASSEMBLY / Hutch / Place the part in an upright position Important/Importante Do not tighten the round piece H-03 that assembles the pieces Assembling sequence 34, 20 and 35 through 44. Parts / + 44 back panel / H-03 back panel / back panel / : 1-888 8BESTAR (1-888 823-7827) ERVICE...
- Page 20 INSTALLATION / Doors / Lift gently the right side of piece 44. two people are required to assemble and move this model. Insert delicately the first door. Insert delicately the second door. Lower the piece 44 so that it will be in its original position. Important/Importante Remember to tighten the H-03 located on pieces 34, 20 and 35.
