ECS Electronics SL-005-BB Guide Rapide

UNIVERSAL TOW BAR WIRING KIT 7 PIN
GENERAL FUNCTION DESCRIPTION
The module is designed to control the trailer lighting system. The car rear light voltages are used to drive the control-
ler module. The module inputs should be connected to the cars' rear light driving wires according to required trailer
lightning driving pattern. The module inputs for correct operation require only around 1 mA each (a 5W bulb is
drawing 0.5 amp) and total current consumption does not activate overload sensing modules in the cars' lighting
system. The module will activate required lights on the trailer after receiving input driving signal.
The controller can also work with electric installations in the cars where some of the lights perform two light intensity
functions based on PWM (pulse width modulation) technique.
Disclaimer: Pmax. 5 x 21 Watt and 1 x 42 Watt (brake light only)
MODULE FUNCTIONS
- Driving the trailer lights according to required regulations
- Parallel connection of the fog light
- Cooperation with double or single filament bulb systems or LED
- Automatic detection of a connected trailer (tested electric connection only)
ASSEMBLY KIT CONTENT

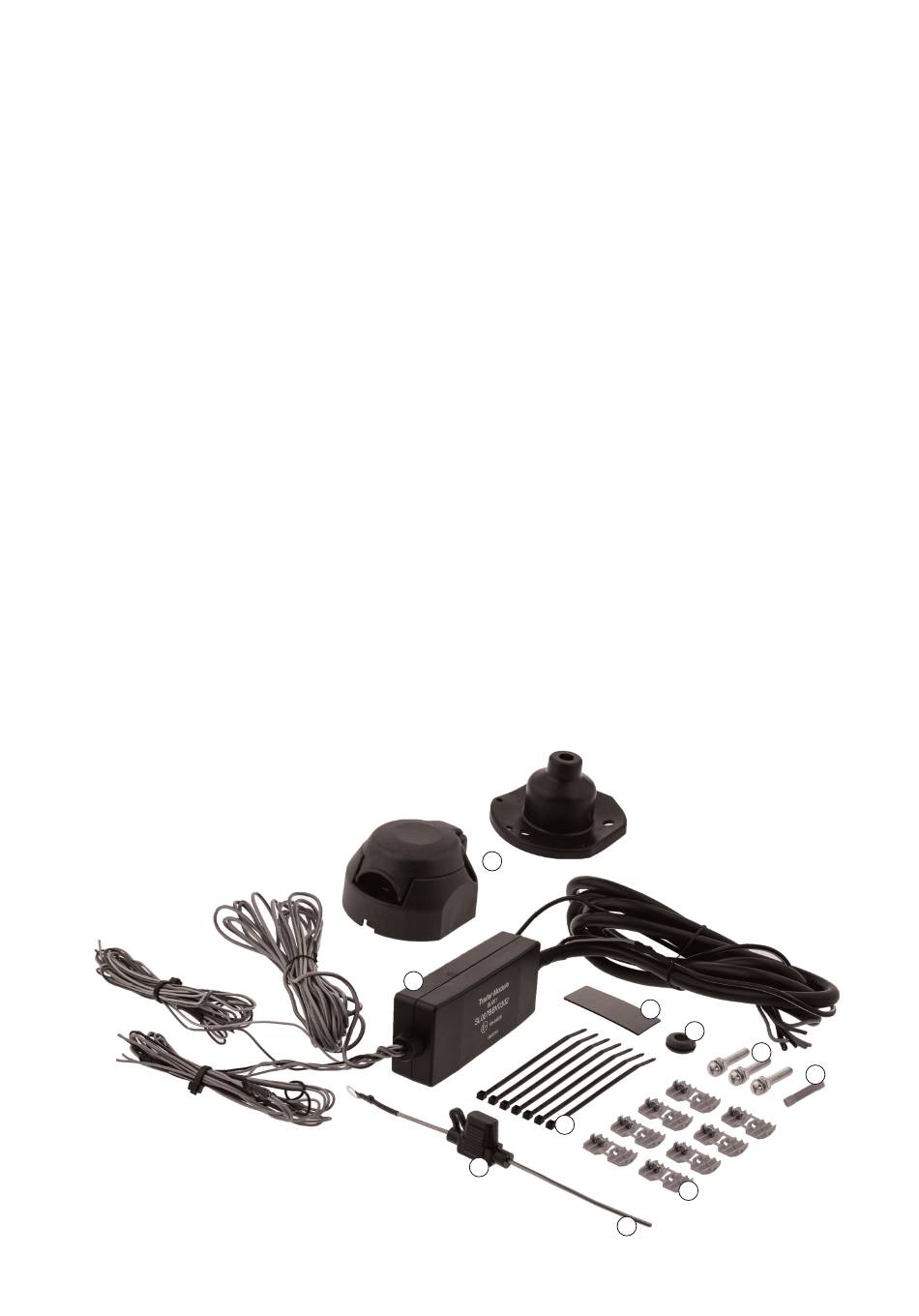

Assembly kit photo:
A Pre-mounted module / harness
B Fast connector – 8 pc.
C Fuse holder harness – 1 pc.
D Fuse 15 amp – 1 pc.
E Trailer 7-pin socket with a gasket – 1 pc.
F Mounting screw with nut and washer – 3 pc.
G Butt connector
H Cable tie – 7 pc.
I Adhesive mounting pad
J Grommet
E
A
I
J
F
G
H
D
B
C
Rev. 2
