PSI Woodworking Products GROOVE PKGVCL Serie Traduction Des Instructions D'origine

#PKGVCLXX
GROOVE CLICK PEN KIT
Kit Features:
• Clean, Modern Design Elements
• Reliable Schmidt Click Mechanism
• 7mm Tube Allows for Thin Profi le
• Easy to Turn With Straight Tubes
• Minimal Parts--easy to assemble
• Available in multiple fi nishes
• Overall Length: 5-23/32"
• USES Cross® REFILL: #PK-PEN-R5
Required Accessories:
• 7mm Pen Mandrel
• Drill Bit: #PK-7MMSG for Plastic or #PK-7MM for Wood
• Bushing Set(3pc): #PKM-BUSH3
• Barrel Trimming set: PKTRIM7 or Pen Blank Squaring
Jig and Disc Sander
• Live Tailstock or Mandrel Saver
• 2 part Epoxy or Thick CA (Cyanoacrylate) Glue
• Pen Blank Minimum Size: 5/8" x 5/8" x 4-5/16"L
Tip
Preparing the Blank:
• Cut blank to the to the length of the tubes, adding 1/16" for squaring off.
• Drill 7mm hole lengthwise through the blanks.
• Spread glue over tube, insert the tube into the blank with a twisting motion to spread the glue evenly inside.
• Center the tubes lengthwise inside the blanks.
• When the glue is dry, square the ends of the blanks, making sure the trimmed ends are 90º to the tube. Use a 7mm
barrel trimmer, or a pen blank squaring jig with a disc sander. Take the excess material down fl ush to the ends of
the tubes. Do not trim past the end of the tube since this may interfere with the operation of the mechanism and
assembly. Use a barrel trimmer to clean the inside of the tube.
PKGVCLXX_INS.indd 1

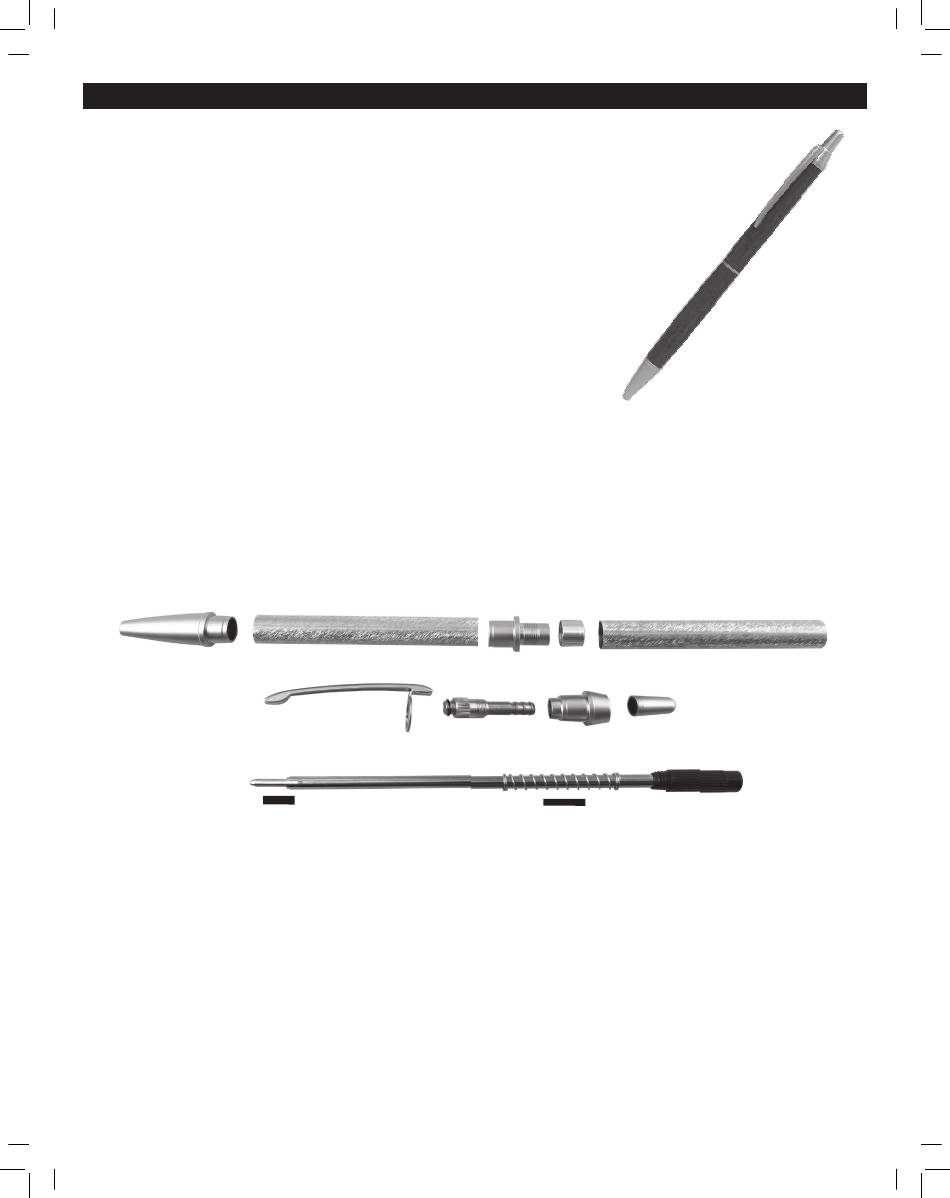

DIAGRAM A / PARTS LAYOUT
Tube - 2.07" (2-1/16")
Clip
Schmidt Click
Mini Mechanism
Refi ll Refi ll
Barrel
Coupler
Nut
Band
Tube – 2.07" (2-1/16")
Plunger
Cap
Spring Spring
