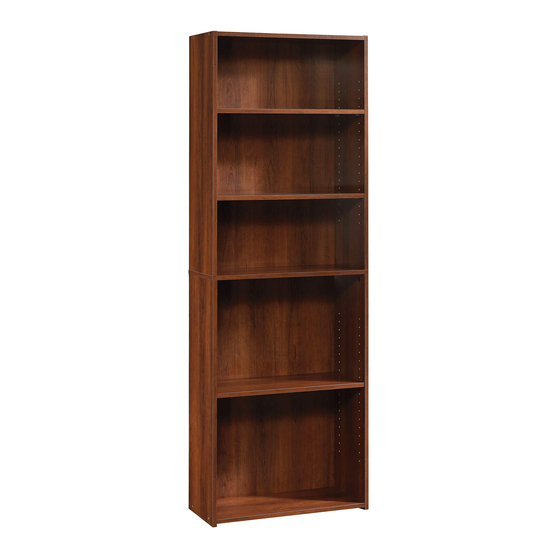

5-Shelf Bookcase
416439
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Deep shelves for
tall tales.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-11
Français pg 12-13
Español pg 14-16
Lot # 358951
02/03/14
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Publicité
Table des Matières
Manuels Connexes pour Sauder 416439
Sommaire des Matières pour Sauder 416439
- Page 1 5-Shelf Bookcase 416439 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987. English pg 1-11 Français pg 12-13...
- Page 2 Use this part identifi cation to help identify similar parts. LOWER RIGHT END (1) TOP/BOTTOM (2) LOWER LEFT END (1) ADJUSTABLE SHELF (3) UPPER END (2) FIXED SHELF (1) BACK (2) Page 2 416439 www.sauder.com/services...
-
Page 3: Part Identifi Cation
Now you know Part Identifi cation our ABCs. www.sauder.com/services 416439 Page 3... -
Page 4: Table Des Matières
CAM COVER - 2 SCREW COVER - 8 METAL PIN - 14 RUBBER SLEEVE - 12 BLACK 9/16" LARGE HEAD SCREW - 1 BLACK 1-7/8" FLAT HEAD SCREW - 1 BLACK 1-15/16" FLAT HEAD SCREW - 10 Page 4 416439 www.sauder.com/services... -
Page 5: Hidden Cam
ENDS (A and C). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. Do not tighten the HIDDEN CAMS in this step. Arrow Arrow Insert the metal end of the CAM DOWEL into the HIDDEN CAM. www.sauder.com/services 416439 Page 5... - Page 6 Unfi nished edge w i t l e s r f a f e w fi n i s h r f a Page 6 416439 www.sauder.com/services...
- Page 7 Tighten Risk of damage or Arrow injury. HIDDEN CAMS must be completely Arrow Maximum tightened. HIDDEN 210 degrees CAMS that are not completely tightened may loosen, and parts may separate. To Minimum completely tighten: 190 degrees www.sauder.com/services 416439 Page 7...
-
Page 8: Nail
BACK (G) fi rst. Do not fasten NAILS along this edge until the lower BACK is overlapping the upper BACK. These holes must line up over the FIXED SHELF (F). 1-1/2" approximately 5" 1/4" 11/16" spacer Page 8 416439 www.sauder.com/services... - Page 9 And, you know, PINS (1R). Insert the METAL PINS into the hole your arms. locations of your choice in the ENDS (A, C, and E). Set the ADJUSTABLE SHELVES (D) onto the METAL PINS. (12 used) www.sauder.com/services 416439 Page 9...
- Page 10 Push a CAM COVER (12P) onto each HIDDEN CAM. å Center a SCREW COVER (21P) over the head of each å visible SCREW and press fi rmly. (2 used) To cover HIDDEN CAMS (8 used) To cover screws Page 10 416439 www.sauder.com/services...
-
Page 11: Black 9/16" Large Head Screw
BLACK 1-7/8" FLAT HEAD SCREW (1 used into a stud in your wall) BLACK 9/16" LARGE HEAD SCREW (1 used into the top of your unit) No load 25 lbs. 25 lbs. 30 lbs. 25 lbs. 40 lbs. www.sauder.com/services 416439 Page 11... -
Page 12: Bibliothèque Avec 5 Tablettes
QUANTITÉ d’ a chat de cet élément et conserver le livret pour future référence. EXTRÉMITÉ DROITE INFÉRIEURE ....1 EXCENTRIQUEESCAMOTABLE ......2 Pour contacter Sauder DESSUS/DESSOUS ..........2 CHEVILLE D’EXCENTRIQUE.......2 en ce qui concerne cet EXTRÉMITÉ GAUCHE INFÉRIEURE ....1 CONSOLE DE SÉCURITÉ ........1 élément, faire référence... - Page 13 REMARQUE : Prière de lire attentivement les importantes informations concernant la sécurité qui fi gurent sur le page arrière du manuel d’instructions. Ceci complète l’ a ssemblage. Pour nettoyer, utiliser l’encaustique pour meubles préférée ou un chiff on humide. Essuyer. www.sauder.com/services 416439 Page 13...
-
Page 14: Lista De Partes
EXTREMO DERECHO INFERIOR .....1 EXCÉNTRICO ESCONDIDO .......2 et conserver le livret pour future référence. PANEL SUPERIOR/FONDO ........2 PASADOR DE EXCÉNTRICO ......2 Pour contacter Sauder EXTREMO IZQUIERDO INFERIOR ....1 MÉNSULA DE SEGURIDAD .........1 en ce qui concerne cet ESTANTE AJUSTABLE ..........3 CLAVO ................48 élément, faire référence... - Page 15 Para apretar completamente, atornille el excéntrico CABEZA PERDIDA de 49 mm (4S). escondido 210 grados. Fije el ESTANTE INMÓVIL (F) a los EXTREMOS SUPERIORES (E). Utilice dos TORNILLOS NEGROS DE CABEZA PERDIDA de 49 mm (4S). www.sauder.com/services 416439 Page 15...
- Page 16 NOTA: Por favor lea las página fi nale del folleto de instrucciones para información importante sobre la seguridad. Esto completa el ensamblaje. Limpie con su pulimento para muebles preferido o un paño húmedo. Seque con un paño. Page 16 416439 www.sauder.com/services...
- Page 17 Les téléviseurs peuvent être un téléviseur. cet eff et. particulièrement lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. www.sauder.com/services 416439 Page 17...
- Page 18 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y propensa a volcarse hacia adelante. Page 18 416439 www.sauder.com/services...
-
