Champion SKYBIRD TRIPOD MOUNT TRAP Instructions D'assemblage page 7

TRAP ASSEMBLY INSTRUCTIONS (continued)
STEP 3. ( PRE-ASSEMBLED)

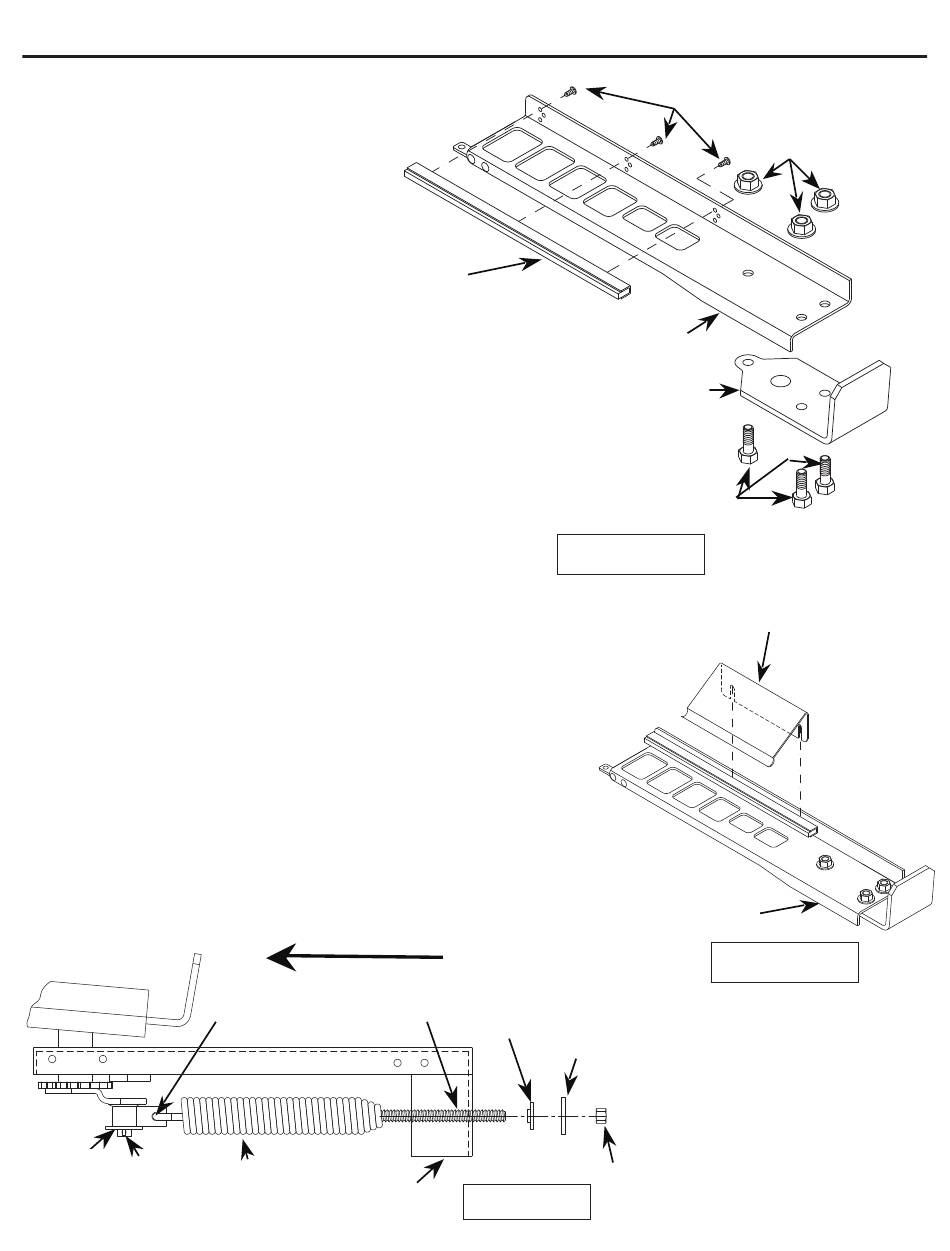

THROWING ARM ASSEMBLY (FIG-4).
Line-up three holes in Throwing Arm (A) with
three holes in Arm Support as shown. Insert
three 10 MM X 20 MM Hex Head Bolts (K-2) from
bottom through Throwing Arm Support and
Throwing Arm. Add 10 MM Flange Nut (K6) and
tighten securely using wrenches.
STEP 4. ( PRE-ASSEMBLED)
FLIGHT CONTROL RAIL ASSEMBLY (FIG-4)
Line-up threaded holes in Flight Control Rail
(D) with top holes in edge of Throwing Arm
(A) as shown. Attach Flight Control Rail with
three Round Head Sheet Metal Screws (K-3). Do
not fully tighten screws until the Target Clip is
installed (Step 5)
NOTE: It is normal for these screws to be
somewhat difficult to turn.
STEP 5. ( PRE-ASSEMBLED)
TARGET CLIP ASSEMBLY (FIG-5)
After attaching the Flight Control Rail in the
previous step, slide the Target Clip (F) between
the Flight Control Rail (D) and the Throwing Arm
(A) as shown and tighten the three screws (K-3).
STEP 6.
MAINSPRING ASSEMBLY (FIG-6).
Insert Hex Bolt (K-4), threaded end first, into Mainspring (E) through
largest opening so that threaded end comes out of opposite tapered
end. Make sure Throwing Arm (A) is pointing forward (12 o'clock
position). Connect hook end of Mainspring (E) through hole in Swivel
Yoke. Put threaded end of Hex Bolt (K-4) through hole in Rear Bracket.
Add the Nylon Shoulder Washer (K-10), 10 MM Flat Washer (K-5), and 10
MM Hex Nut (K-7) and finger tighten. Adjustment of Mainspring tension
for throwing targets will be done later.
Washer
Cotter P in
Washer
Cotter Pin
Trap A rm F aces F orward
Trap Arm Faces Forward
10 M M X
125 M M H ex
Swivel Y oke
Bolt ( K-­‐4)
10 MM X 125 MM
Hex Bolt (K-4)
Mainspring
Assembly ( E)
Rear B racket
Rear Bracket
Flight C ontrol
Rail ( D)
Throwing A rm ( A)
10 M M X 2 0 M M H ex B olts
(K-­‐3)
Nylon
Shoulder
Washer 10 M M F lat
(K-­‐10) Washer ( K-­‐
5)
FIGURE 6
FIGURE 6
7
Sheet M etal S crews ( K-­‐3)
10 M M F lange N uts ( K-­‐7)
10 MM Flange Nuts (K-6)
Arm S upport
(K-2)
FIGURE 4
FIGURE 4
Target C lip ( F)
Throwing A rm ( A)
FIGURE 5
FIGURE 5
10 M M
Hex N ut
(K-­‐7)
