Page 1

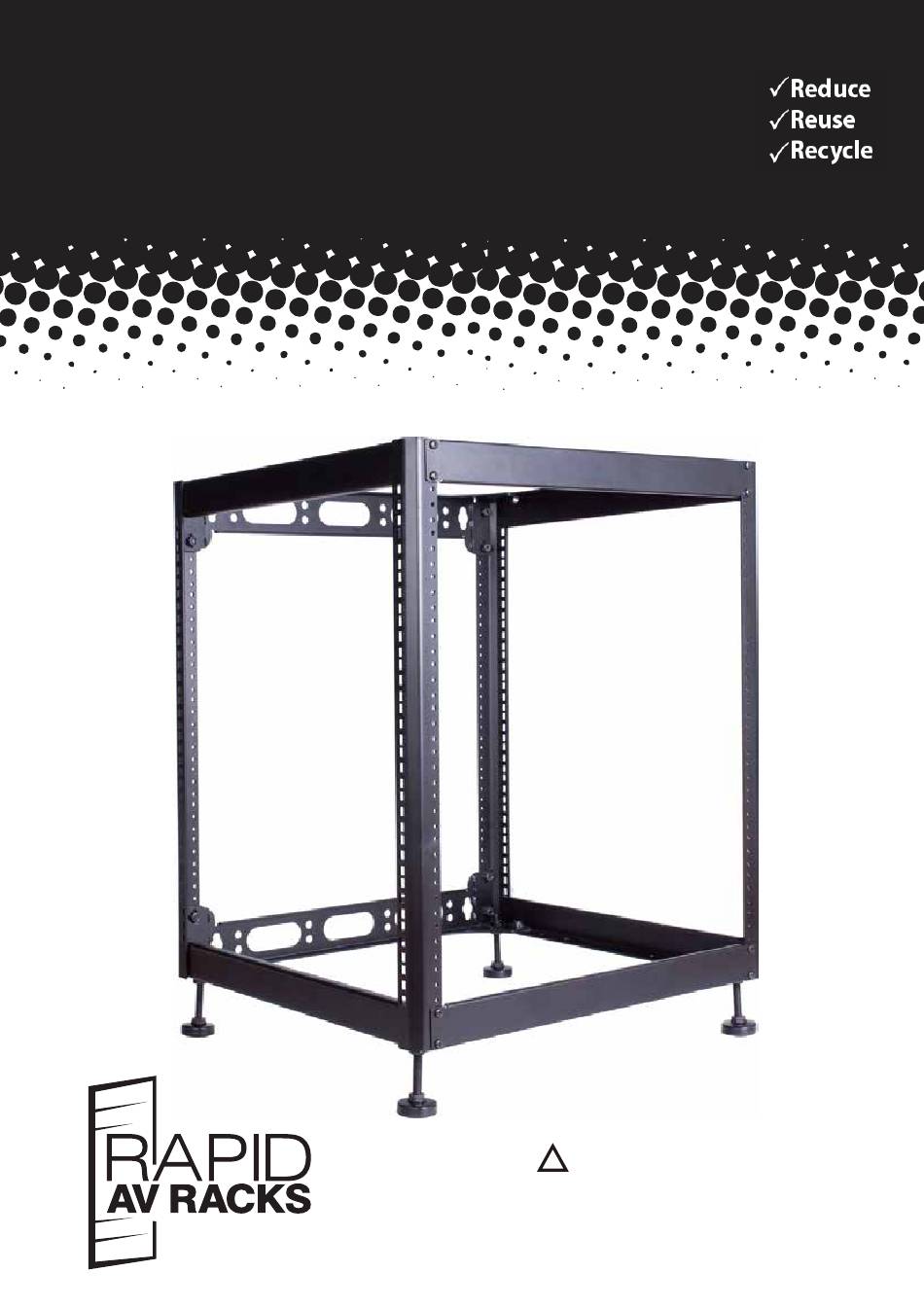

14 Space Skeleton Rack Enclosure INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: THE MAXIMUM LOADING WEIGHT IS 500 LBS ON FLOOR AND 175LBS MOUNT TO WALL. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHT INDICATED MAY RESULT IN INSTABILITY AND...
Tampoco prevé todas las posibles contingencias relacionadas con la instalación o el uso de este producto. La información que contiene este documento queda sujeta a cambio sin aviso previo o compromiso alguno. RAPID VIDEO MOUNTS no ofrece ninguna garantía, ni expresa ni implícita, respecto de la información aquí incluida. RAPID VIDEO MOUNTS no se responsabiliza de la precisión de la información provista en este documento, ni tampoco de que sea completa o suficiente.
Page 3
HARDWARE PRODUCT NUMBERS Nylon Nut Screw Phillips Screw Lag Bolt Anchor Foot Screw Rack Screws 10-32*18mm M6*12mm ST8*65mm 10-32 *18mm x 20 PRODUCT COMPONENT PARTS Product Components Description Contents Left Frame Right Frame L Brackets Flat Brackets...
Page 4
STEP 1- INSTALL L BRACKETS Fit L Bracket over Slide L Bracket over left frame vertical horizontal screw stud. screw stud. Repeat Step 1 to secure Right L Brack- Secure L Bracket with Nylon Nuts. Nylon Nut M8...
Page 5
STEP 2- INSTALL FLAT BRACKETS TO FRAMES Screw 10-32*18mm STEP 3- ATTACH FOOT SCREWS Install Foot Screws.Make sure Foot Screws are screwed in until the Nylon Nuts at the top of the Foot Screws are flush against the frame. Level Level Adjust the Foot Screws with a screwdriver to make...
Page 6
OPTIONAL STEP- STACKING (SECOND RACK SOLD SEPARATELY) Fit second frame (without Secure frames with Phillips Screws Foot Screws) onto first one. Phillips Screw M6*12mm CAUTION: When stacking, ensure heavier equipment is placed at the bottom of the rack(s) for stability.
Page 7
STEP 4A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 4B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
Page 8
STEP 4A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 4B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
Page 9
STEP 4B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
Page 10
STEP 4B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
Page 11
STEP 5- HANG THE RACK TO THE LAG BOLTS AND TIGHTEN THE LAG BOLTS Heavy, Assistance Required TRES LOURD ! Cette etape requiert deux personnes !PESADO! Necesitara ayuda para realizar esta operacion P 11...
Esta garantía se aplica a los residentes de los Estados Unidos que realizaron la compra en un distribuidor autorizado de RAPID VIDEO MOUNTS. Esta garantía cubre los productos RAPID VIDEO MOUNTS de los defectos de materiales y de mano de obra por un periodo de 5 años. RAPID VIDEO MOUNTS, a su exclusivo criterio, reparará o reemplazará...
