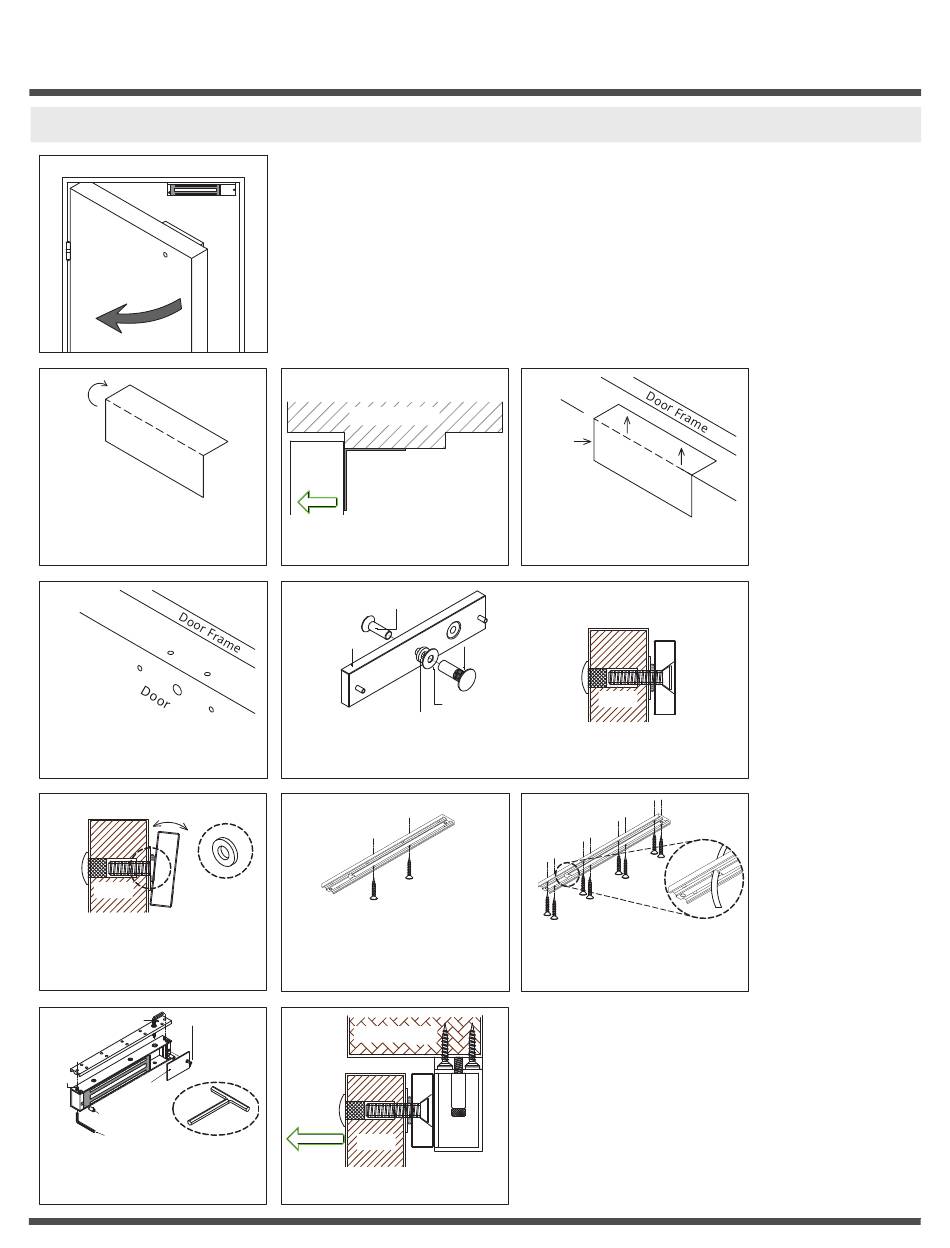

5. REGULAR INSTALLATION GUIDE (FIGURE 2)
Out Swing Door
Installation
1
Template
Fold the CX-91S Template along the dotted
line upto 90°.
Note: Installation Template Only for In-door
E.M. Lock Model 300, 600, 1200
4
Drill 2 holes on Frame and 3 holes on
door as indicated on the template.
6
Door
Rubber
Washer
This allow the armature plate to
pivot around the armature screw to
compensate for door misalignment.
Cable Wire
Cover Screw
9
** T Handle
Fixing
Allen Key
Screw
x2
PCB Cover
Anti Tamper Nut x2
Included
Allen Wrench
Use an Allen key wrench to unscrew
the anti tamper nut and tighten the
fixing screws on the mounting plate.
2
Door Frame
Template
Door
Out Swing
Close the door, position the EM lock
mounting location as close to the
door upper corner with gap 10mm.
5
Armature Screw
Armature Plate
Rubber Washer
Install the Armature Plate to the door.
Note: Actual installation may varies according to door figures.
7
Mount the FB600 on the door frame
by screw in the self tapping screw on
the holes as indicated on template.
10
Door Frame
3mm
Not
Door
Holding Force
Connect to power supply and test unit.
3
Door
Place the template against the door
& frame and drill holes according to
template indications.
Wooden Door
Sexnut Bolt
Door
Metal Washer
8
Once position is correct, screw in
others screws to permanently mount
the plate; and drill the wire cable
access hole.
EM
Lock
CX-91S TDS Series Magnetic Locks
INSTA LL AT ION INS T RUCT IONS
Page 3 of 4
