HDMI 4X2 MATRIX SWITCHER
WITH AUDIO EXTRACTION
Quick Installation Guide
All brand names and trademarks are properties of
their respective owners
INTRODUCTION:
HM-MT402H is a true 4K60 4:4:4 4x2 HDMI matrix switch. Supporting HDMI 2.0,
HDCP 2.2, HDR and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray,
UHD Blu-ray, satellite receiver, game consoles, PCs, etc...) to be shown on any of the
connected displays.
Remote Control
1
1. Power ON/OFF button.
1
2
2. HDMI Input Source Selector: Select an input source.
A
3. Audio Output control buttons.
3
4
2
ARC: Enable or disable Audio Return Channel.
1
2
SPDIF: Enable or disable Optical Digital Audio output.
B
3
4
2.0: Sets audio output mode to 2.0 channel.
5.1: Sets audio output mode to 5.1 channel.
ARC
SPDIF
3
PASS: Use the AUDIO EDID from Display device.
2.0
5.1
PASS

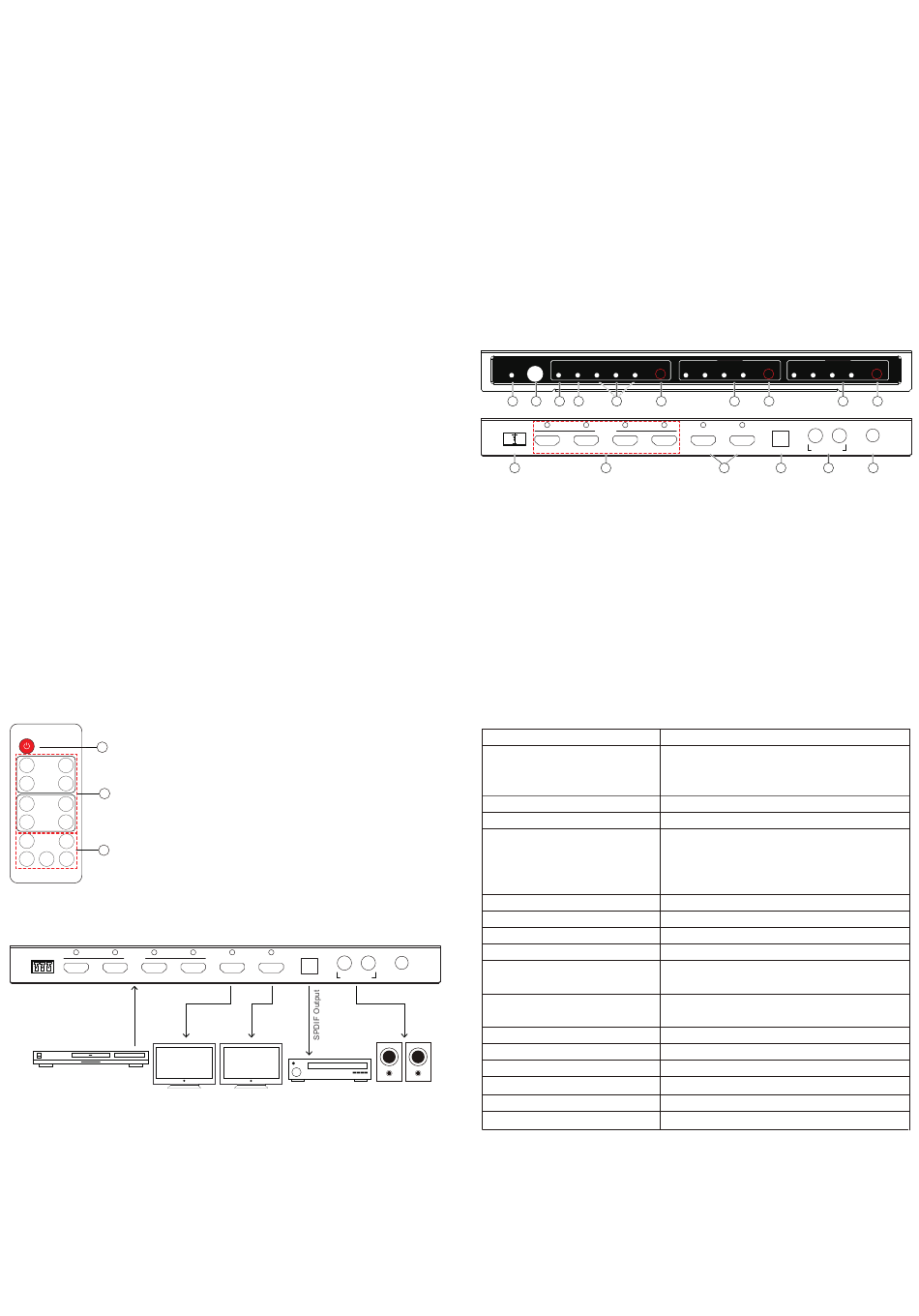

CONNECTION DIAGRAM:
Input
RS232
1
2
3
Input
HDMI x 4
HD TV
HDMI Source
PS3,PC,STB,
Blu-ray DVD player etc
How to Connect
1. Use a HDMI cable to connect a HD source to the HDMI Input Port.
2. Use a HDMI cable to connect a HD display to the HDMI Output Port.
3. For audio connection, choose one from the following options.
a. To use HDMI pass-through, use the HDMI cable from step 2 to connect audio
receiver to the HDMI Output Port. Your audio receiver will have to output video
signal to your HD display.
b. To use Toslink, use a Toslink cable to connect to audio equipment. (Note: Toslink
does not support Dolby Digital plus please change the input source's audio
output to a different setting, if needed.)
c. To use R/L, use a R/L cable to connect a stereo audio equipment.
4. Connect the power adapter.
5. Note: If using Toslink cable, please make sure the rubber protective tip cover has
already been removed from both ends before connecting them to devices.
Ver. 1.0
R
Audio
4
Output B
Output A
Optical
Audio Output
HDMI Output
HDMI Output
HD TV
Audio Amplifier
FEATURES:
● Input: HDMI x 4.
● Output: HDMI x 2, Toslink/SPDIF x 1, Stereo RCA x 1.
● Supports Ultra HD 4Kx2K@60Hz.
● Supports 3D.
● Supports Standard Audio,DSD Audio, and HD(HBR) Audio.
● Supports HDMI2.0, HDCP2.2, HDR Signal format
● Supports 6.0Gbps TMDS/600MHz pixel clock rate per channel, maximum
total TMDS through outputs 18Gbps.
● Supports uncompressed audio such as LPCM.
● Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD,
and Dolby TrueHD.
● Supports up to 7.1CH digital surround on HDMI output.
● Supports up to 5.1CH digital surround on Toslink output.
● Supports up to 2.0 channel analog stereo on Stereo output.
● Support the ARC (Audio Return Channel).
PRODUCT OVERVIEW:
IR
Power
2
1
RS232
11
1. Power LED
2. Infrared for Remote Control
3. Audio Return Channel(ARC) LED Indicator
4. Optical Digital Audio Output LED Indicator
5. HDMI Pass-through/2.0CH/5.1CH Audio
Channel LED Indicators
6. Audio mode selection Button
7/9. HDMI Input LED Indicators
1
SPECIFICATIONS:
Video and audio
HDMI resolution
HDMI version
Support video color format
Audio output
Max bandwidth per channel
Max baud rate per display
Input/Output TMDS signal
Input/Output DDC signal
Input cable distance
Power
L
5VDC, 2A
O
utput cable distance
Environmental
Operating Temperature range
Operating Humidity range
Power Requiremnt
Speaker
Max working current
External Power Supply
PACKAGE CONTENTS:
● 1x Main unit
● 1x Remote Control
● 1x User Manual
● 1x Power adapter
● 1 x Phoenix Plug for RS232 cable Termination
3
Audio
ARC
SPDIF
PASS
2.0CH
5.1CH
1
2
3
4
5
6
Input
1
2
3
4
Output B
12
13
4Kx2K@24/25/30/60fps@60Hz,3D(1080P
@24/60/120Hz),1080P/1080i/720P/576P/
576i/480P/480i@24/30/50/60fps@120Hz
HDMI2.0, HDCP2.2
36-bit Deep Color all channels maximum
HDMI pass-through
Up to 7.1CH
Toslink output up to 5.1 ch
RCA L/R out put stereo audio
600MHz
18Gbps
0.5~1.5V p-p(TTL)
5V p-p(TTL)
≤50ft/15m 24 AWG HDMI high speed
Cable at1080P@24bit 60Hz
≤50ft/15m 24 AWG HDMI high speed
Cable at1080P@24bit 60Hz
5°F to 131°F / -15°C to 55°C
5% to 90% RH(No Condensation)
1A
DC5V/2A
Output A
Output B
Selection
Selection
3
4
1
2
3
4
8
7
9
10
Power
R
Audio
L
Output A
Optical
5VDC, 2A
14
15
16
8/10. Input Port selection Button
11.
RS232 Communication Port
12. HDMI Input Ports
13. HDMI Output Port
14. Optical Digital Audio Outptu Port
15. L/R Analog Stereo Audio Output
Port
16. Power Input Port
2
4
