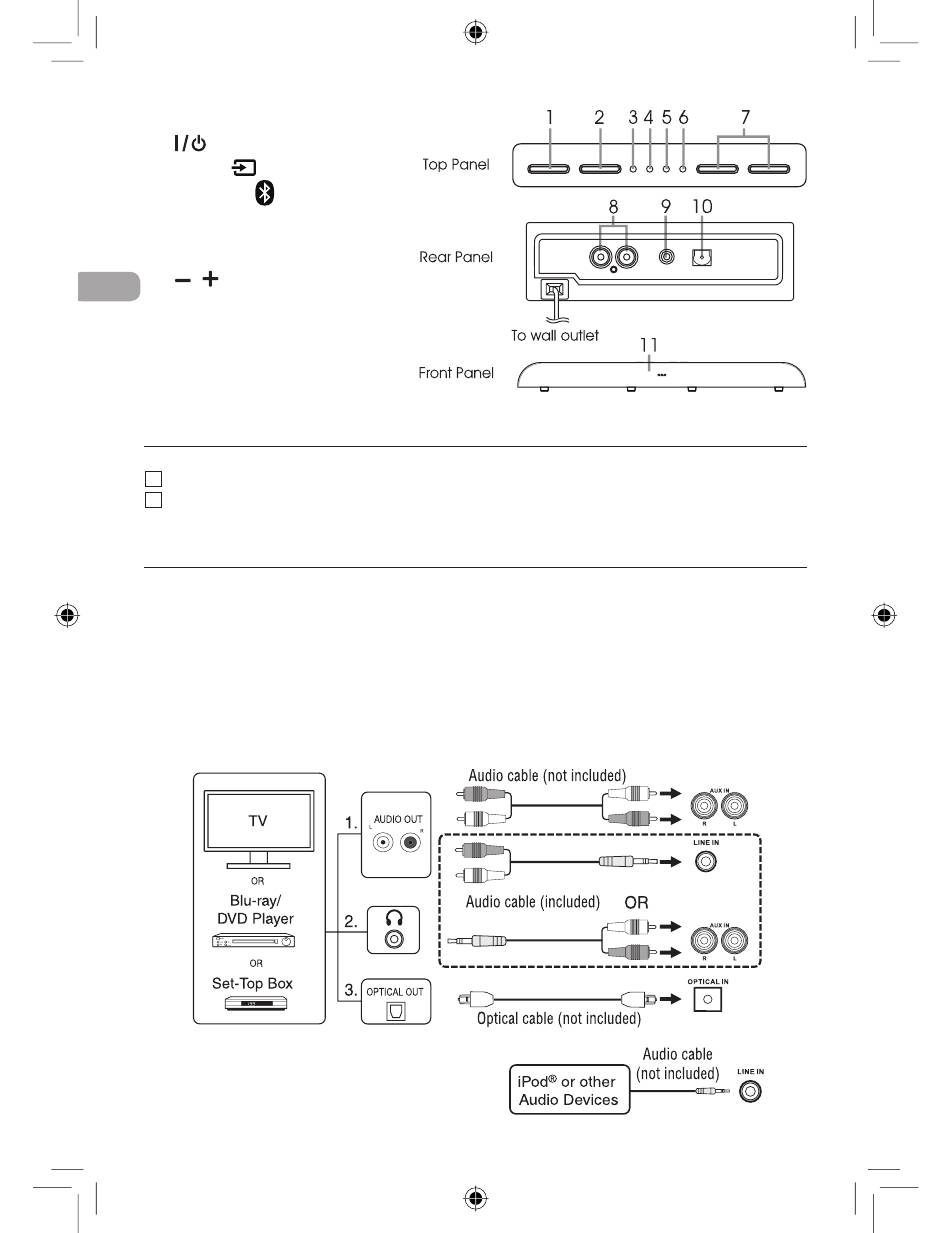

SOUNdBASE
1. Standby/ON button
2. SOURCE button
3. BLUETOOTH / LEVEL indicator
4. LINE IN / LEVEL indicator
5. AUX IN / LEVEL indicator
6. OPTICAL IN / LEVEL indicator
7. / VOLUME button
EN
8. AUX IN R / L jack
9. LINE IN 3.5mm jack
10. OPTICAL IN jack
11. Remote Sensor
ACCESSORIES
Please locate the included accessories. To order replacement units, visit http://www.RCAav.com
Remote control (with battery) ..................x 1
Audio Cable ..............................................x 1
CONNECTIONS
CONNECT AUdIO ThROUgh AN ANAlOg AUdIO CABlE
1. Connect an Audio Cable (not included) from the AUX IN jacks to the AUDIO OUT jacks of your TV, Set-Top
Box or Blu-ray/DVD Player.
2. Connect a 3.5mm Audio Cable (included) from the LINE IN jack to the AUDIO OUT jacks or from the AUX IN
jacks to the Headphone Out jack of your TV, Set-Top Box or Blu-ray/DVD Player.
CONNECT AUdIO ThROUgh A dIgITAl OPTICAl CABlE
3. Connect an Optical Cable (not included) from the OPTICAL IN jack to the OPTICAL OUT jack of your TV, Set-
Top Box or Blu-ray/DVD Player.
Note: OPTICAL IN only supports PCM signal. You may need to activate PCM (Downmix) on your source device,
e.g. TV, Set-Top Box or Blu-ray/DVD Player.
Plug one end of a 3.5mm Audio Cable (not included)
into the LINE IN jack and other end into your iPad®,
iPhone®, iPod® or other audio devices.
