GOLIATH R-AC001
USER'S MANUAL
MULTI-FUNCTION SUPPORT FOR GOLIATH PRO+
*To mount this support, it is necessary to have the rear tray (G-AC004) installed
on the Goliath Pro power stand.
*This bracket is compatible exclusively with the GOLIATH PRO+ stand (G1).
WHAT YOU WILL FIND IN THE BOX:
1 Support with fasteners and their respective handles.
2 M-6 Allen screws and bushing required for mounting on the Goliath Pro+ (G1)
stand
DESCRIPTION AND TECHNICAL CHARACTERISTICS:
Multifunction support with easy and quick coupling of accessories for wheel related
works, such as bead breakers for thru axle bushings and quick dismounting axles,
chain wrench for loosening and removing cassettes, or micrometer centering device
for rims.
GOLIATH BIKE standard connection system compatible with all accessories.
ASSEMBLY INSTRUCTIONS:
ASSEMBLY OF THE BRACKET ON THE GOLIATH PRO+ BRACKET (G1)

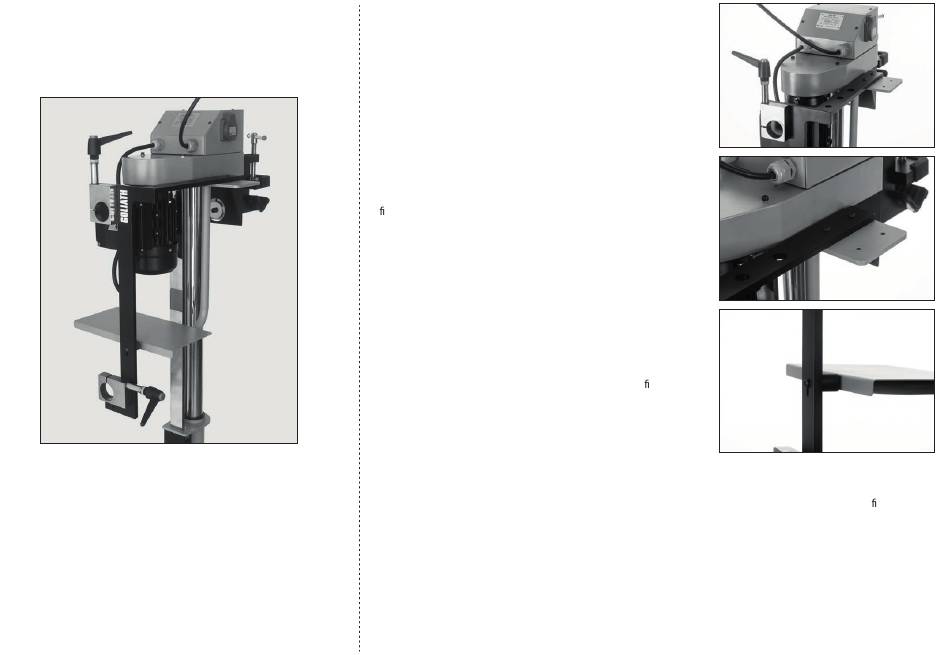

1 - Place the support on the back of the Goliath Pro as shown in the picture (Photo 1),
xing it directly to the side plate of the tray with 2 M-6 Allen screws (Photo 2).
2 - The lower arm of the support is attached directly to the tray with an M-8 Allen
screw and a plastic bushing inserted between the tray and the support on the
bottom of the tray (Photo 3).
INSTRUCTIONS FOR USE:
The multi-function support can simultaneously hold 2 accessories, one at the top and
one at the bottom.
As it is specially designed to work with wheels, these will be mounted on the upper
part. To do this, loosen the handle allowing to attach the 12mm axle (E-DES12), the
15mm axle (E-DES15) or the quick change axle (R-AC003) and close it to x the
accessory.
In the lower part, the wheel centering arm (R-AC005), GOLIATH 360º PLANET
(R-AC004) or the chain wrench for cassette extraction (E-CAS) can be placed in the
same way.
WARNING OF DANGER IN USE:
The R-AC001 support must not be operated by children.
Due to its high weight, it must be handled with care and checked that it is well
anchored to the GOLIATH PRO+ (G1) stand.
If the GOLIATH PRO+ (G1) stand is used with the feet on wheels (G-P1), use it with
care to avoid tilting the stand to the rear due to the weight of the load.
We recommend to work with the multi-function support always having the bicycle
held by the front part of the GOLIATH PRO+ stand (G1) to counterbalance and level
the total weight.
MAINTENANCE:
1 - The support does not require any speci c maintenance.
2 - The only points of lubrication can be the threads of the
handles, which must be lubricated with a little grease,
Vaseline etc.
This greasing process should be done at the user's
discretion and although it is not necessary, it does
contribute to smoother movements.
WWW.GOLIATH-BIKE.COM
Photo 1
Photo 2
Photo 3
