STEP 1 (cont):
Installation of Exterior Panel
For RAB26A wall sleeve models

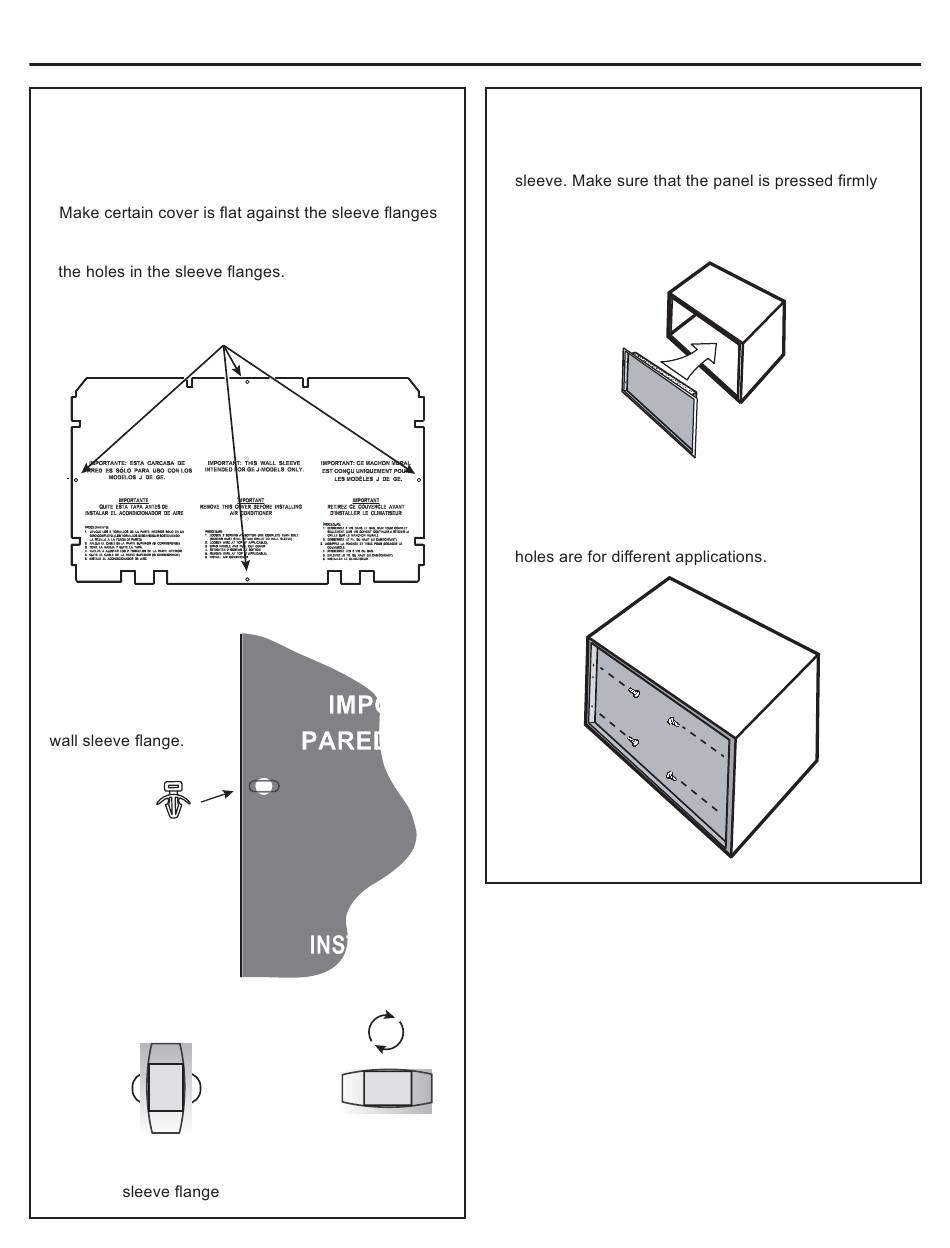

1. Place black outdoor cover inside the wall sleeve.
at the rear of the wall sleeve.
2. Align the four holes in the black outdoor cover with
3. Insert the four push pins provided into the four holes
in the black outdoor cover.
Holes for push pins
To hold black outdoor
cover in place insert
the push pin through
the hole in the cover
and into the slot in the
Push pin is locked
into slot in wall
Installation Instructions
90º
To remove push pin
rotate it 90 degrees
and pull straight out
STEP 2:
Installation of Interior Panel
1. Install the Interior Panel into the front of the wall
against the front face of the wall sleeve. The screw
holes in the Interior panel should align with the screw
holes in the wall sleeve.
2. Install the 4 supplied screws to secure the Interior
panel to the wall sleeve. There will be an extra set of
holes in the Interior panel that will not be used. Those
Install 4 Screws
