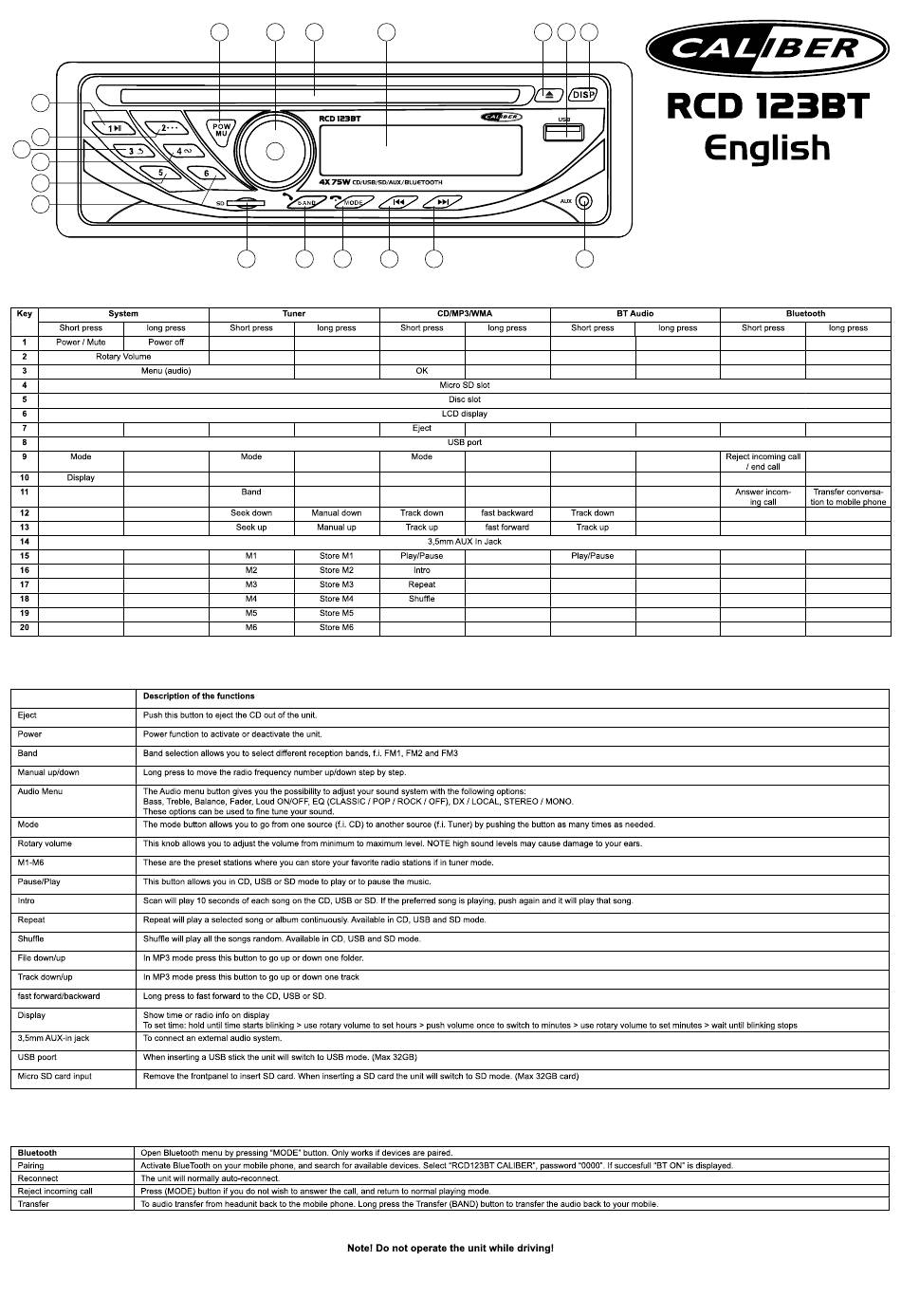

Key System
Short press long press
1 Power / Mute Power off
2
Rotary Volume
3 Menu (audio)
4
5
6
7
8
9 Mode
10 Display
11
12
13
14
15
16
17
18
19
20
Description of the functions
Eject Push this button to eject the CD out of the unit.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3
Manual up/down Long press to move the radio frequency number up/down step by step.
Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options:
Bass, Treble, Balance, Fader, Loud ON/OFF, EQ (CLASSIC / POP / ROCK / OFF), DX / LOCAL, STEREO / MONO.
These options can be used to fine tune your sound.
Mode The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner) by pushing the button as many times as needed.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play This button allows you in CD, USB or SD mode to play or to pause the music.
Intro Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in CD, USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward to the CD, USB or SD.
Display Show time or radio info on display
To set time: hold until time starts blinking > use rotary volume to set hours > push volume once to switch to minutes > use rotary volume to set minutes > wait until blinking stops
3,5mm AUX-in jack To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode. (Max 32GB)
Micro SD card input Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 32GB card)
Bluetooth Open Bluetooth menu by pressing "MODE" button. Only works if devices are paired.
Pairing Activate BlueTooth on your mobile phone, and search for available devices. Select "RCD123BT CALIBER", password "0000". If succesfull "BT ON" is displayed.
Reconnect The unit will normally auto-reconnect.
Reject incoming call Press (MODE) button if you do not wish to answer the call, and return to normal playing mode.
Transfer To audio transfer from headunit back to the mobile phone. Long press the Transfer (BAND) button to transfer the audio back to your mobile.
1 3 5 6
2
4 11 9 12
Tuner
Short press long press
Mode
Band
Seek down Manual down
Seek up Manual up
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
7 8
13
CD/MP3/WMA
Short press long press
OK
Micro SD slot
Disc slot
LCD display
Eject
USB port
Mode
Track down fast backward
Track up fast forward
3,5mm AUX In Jack
Play/Pause
Intro
Repeat
Shuffle
10
14
BT Audio
Short press long press
Reject incoming call
Answer incom-
Track down
Track up
Play/Pause
Bluetooth
Short press long press
/ end call
Transfer conversa-
ing call tion to mobile phone
