RIGEL RGB

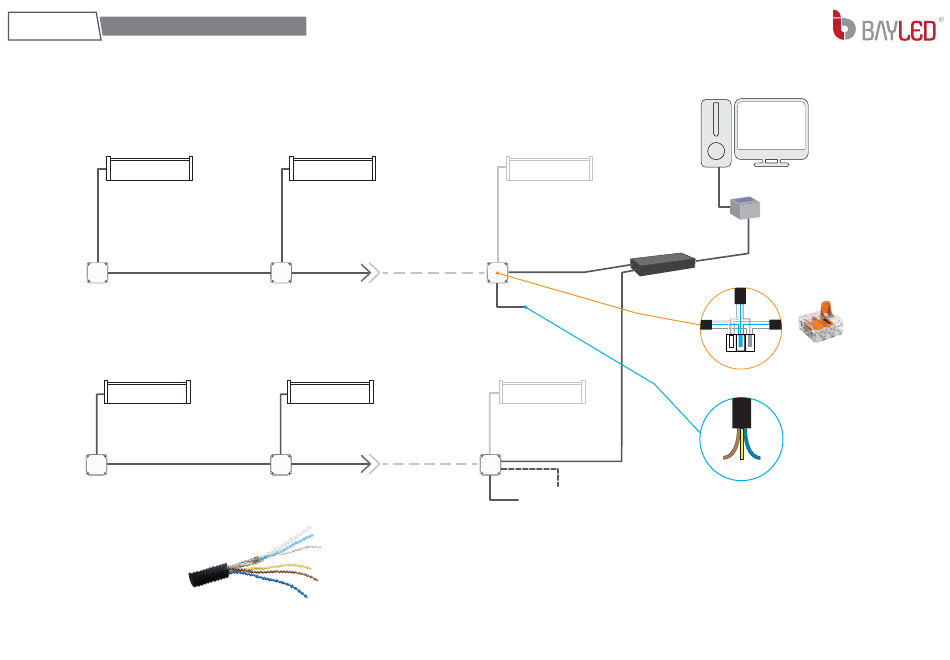

STANDARD CONNECTION DIAGRAM
DMX 512 / RDM
(1 x twisted pair + 1 shield / ground)
120-277V AC (3 wire)
(1 x twisted pair + 1 shield / ground)
*The signal cables must be connected color to color or (number to number ) otherwise the product led colors will work asynchronous.
DMX 512 / RDM
120-277V AC (3 wire)
No more than
20 fixtures on a
single DMX 512 link,
max. 100 m total
(source to last fixture)
You can connect
multiple fixtures
power cable
(220 V AC)
Line can be continue...
power cable
(220 V AC)
PC
DMX
Controller
DMX splitter
Wago 221-413
G
D-
D+
or equivalent
Signal Cable
Connection Detail
( L )
( N )
( G )
Power Cable Detail
Data cabling from DMX source
to first fixture and between
subsequent Rigel fixtures shall
be Cat5e UTP or higher
(stranded type only) or other
cable type suitable for DMX
communication. Consult DMX
standard for additional
guidance.
