• Operating Instructions • Warning Information

Max. Free Speed ................................................................................. 18,000 RPM

Collet Size ..........................................................................................................1/4"

Air Inlet ..................................................................................................... 1/4" NPT

Air Hose Size ............................................................................................... 3/8" ID

Recommended Air Pressure ...................................................................... 90 PSIG

Length ............................................................................................................. 10.6"

Weight....................................................................................................... 2.4 LBS.

Average Air Consumption ...........................................................................4.0 CFM

Sound Pressure Level .................................................................................. 82 dBA

important lubrication instructions

Lubricate wick system through angle gear head oil

fitting with three plunges every 8 hours of use for

maximum gear life.

important:

• Use 140 weight lube oil only for wick system.

• Do not contaminate wick with any other oil or

grease product.

140 weight

lube oil

• MAxiMuM rpM of 18,000

• MAx Air preSSure: 90 pSig,

6.2 bAr

• rpM of The AcceSSorY

MuST exceed Tool rpM

AlwAYS reAd

inSTrucTionS

before uSing

power ToolS

AlwAYS weAr

SAfeTY goggleS

weAr heAring

proTecTion

Avoid

prolonged

expoSure To

vibrATion

MT2883L

MT2883L_Manual_052407.indd 1

• Parts Breakdown

S P E C I F I C A T I O N S

Some dust created by power sanding, sawing, grinding, drilling, and other construction

activities contains chemicals known to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area, and

work with approved safety equipment, such as those dust masks that are specially

designed to filter out microscopic particles.

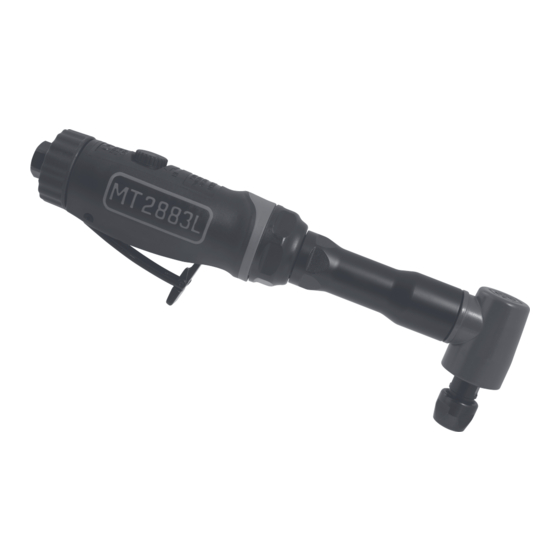

MT2883L

.50 HP Extended

Right Angle

Die Grinder

05/24/07

5/25/07 11:39:00 AM

Sommaire des Matières pour Matco Tools MT2883L

Page 1 • Operating Instructions • Warning Information • Parts Breakdown S P E C I F I C A T I O N S MT2883L Max. Free Speed ................. 18,000 RPM Collet Size ......................1/4" Air Inlet ..................... 1/4" NPT ® MT2883L Air Hose Size ....................
Page 2 MT2883L .50 HP Extended Right Angle Die Grinder failure To oBserVe These Warnings could resulT in inJury This insTrucTion Manual conTains • Place the tool on the work before starting the tool. iMporTanT safeTy inforMaTion. • Slipping, tripping and/or falling while operating air read This insTrucTion Manual carefully tools can be a major cause of serious injury or and undersTand all inforMaTion Before death. Be aware of excess hose left on the walking...
Page 3 MT2883L .50 HP Extended Right Angle Die Grinder FEATURES • High Performance efficient 1/2 HP motor for extra torque and extended durability • Ideal for polishing and grinding jobs with all size pads!! • Industrial cut gear design and constant self lubricating oil wicking system for extra long life and quiet performance •...
Page 4 MT2883L .50 HP Extended Right Angle Die Grinder Important Lubrication Instructions Lubricate wick system through angle gear head gear oil fitting with three plunges every 8 hours of use for maximum gear life. Important: Use 140 weight lube oil only for wick system.
Page 5 ............MT2883L Vitesse Max.
Page 6 MT2883L Rectifieuse de matrice à angle droit allongée .50 CV le non-respecT de ces aVerTisseMenTs pourraiT enTraÎner des Blessures. prÉsenT Manuel d’insTrucTions • Placez l’outil sur le travail avant de le faire démarrer. conTienT des renseigneMenTs iMporTanTs • Si vous glissez, trébuchez et/ou tomber quand vous utilisez pour la sÉcuriTÉ.
Page 7 MT2883L Rectifieuse de matrice à angle droit allongée .50 CV caracTÉrisTiQues • Moteur de haute performance 1⁄2 CV pour plus de puissance et une longévité accrue • Idéal pour tous les travaux de polissage et de ponçage avec tous les types de segments !! •...
Page 8 • Instrucciones de Operación • Información de Advertencia • Revisión de Refacciones E S P E C I F I C A C I O N E S mt2883L Velocidad libre máx................... 18,000 RPM Tamaño de pinza de sujeción ...................1/4"...
Page 9 MT2883L Esmeril de troquel enángulo recto extendido .50 HP el incuMpliMienTo de oBserVar esTas adVerTencias pueden resulTar en alguna lesiÓn esTe Manual de insTrucciones conTiene • Coloque la herramienta sobre el trabajo antes de arrancar la inforMaciÓn iMporTanTe de seguridad herramienta.
Page 10 MT2883L Esmeril de troquel enángulo recto extendido .50 HP caracTerÍsTicas • Motor eficiente de alto rendimiento de 1/2 HP para mayor torsión y una durabilidad extendida • Ideal para trabajos de pulido y amolado con cualquier tamaño de cojinete!! •...
