Left side

HDMI IN jack
VIDEO IN jacks
(VIDEO/AUDIO
(L (MONO)/R))
DIGITAL AUDIO
COAXIAL OUT jack
COMPONENT
IN jacks
(Y/Pb/Pr/ AUDIO
(L (MONO)/R))
RF (ANT.) IN jack
HEADPHONE jack
POWER indicator
Red : Standby
Blue : On
To display the menu screen.
Touch MENU button to display the menu screen.
CH (CHANNEL) / buttons, VOL (VOLUME)
+/– buttons and INPUT/ENTER button can be used
to select the desired setting during the menu screen
operations.
EJECT ( ) button
PLAY ( ) button
STOP ( ) button
AC INPUT jack
Front
Remote sensor
VOL (VOLUME) +/– buttons
CH (CHANNEL)
Rear

Right side

Service connector cover:
Please do not open this
cover. There is a socket
only for service purpose
inside.

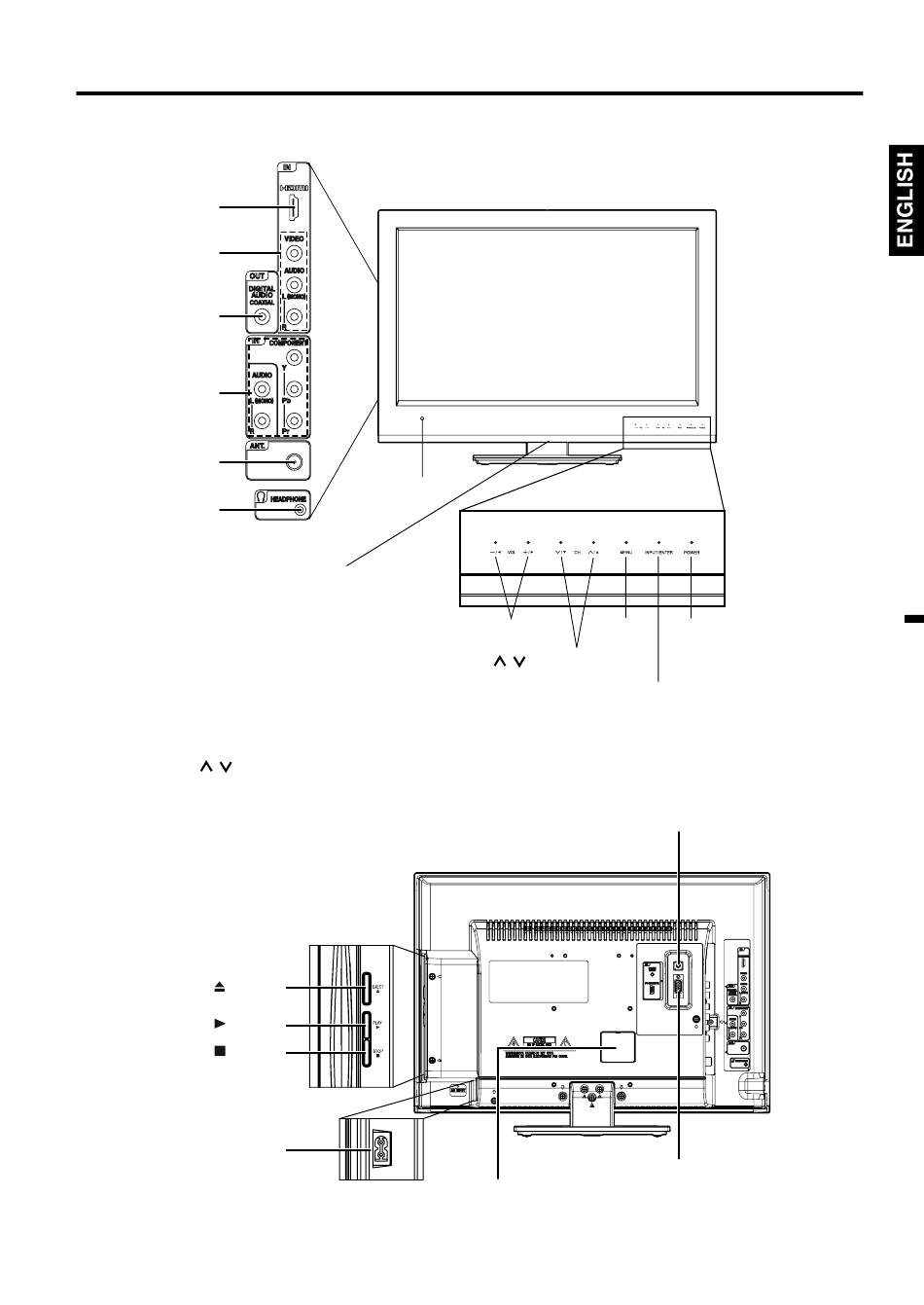

Location of controls

MENU POWER button
button
/ buttons
INPUT/ENTER button
PC/DVI AUDIO IN jack
PC MONITOR IN jack
11
