DESCRIPTION
RDNET CONTROL 2 is an hardware interface to connect dB Technologies RDNET
compatible devices (DVA T12, DVA S30N,etc.), to a Personal Computer (PC) by means of
an USB connection.
The RDNET system was purposely developed to create a data network for monitoring
and command of more systems.
subnets. Up to 32 devices can be connected to each subnet (2 subnets x 32 = total 64
devices).
The addressing of the various devices is handled automatically by RDNET CONTROL 2
interface. Each device is assigned a unique address during the power on procedure of
network.
For the RDNET network operating, it is necessary to install the appropriate Software on
PC, on Microsoft Windows® environment.
From PC it is possible to check the operating of each single device connected to the
network and edit its parameters output level, mute, equalization, delay, etc.
The network and devices configuration can be saved as file in the PC and later reloaded.
RDNET is a "real-time" system: Information relating to the functioning of the devices is
acquired in real-time, a feature that allows a global view of connected devices.
For the correct working of USB (1.1 o 2.0) communication between PC and RDNET
CONTROL 2 it is recommended to use the USB cable supplied.

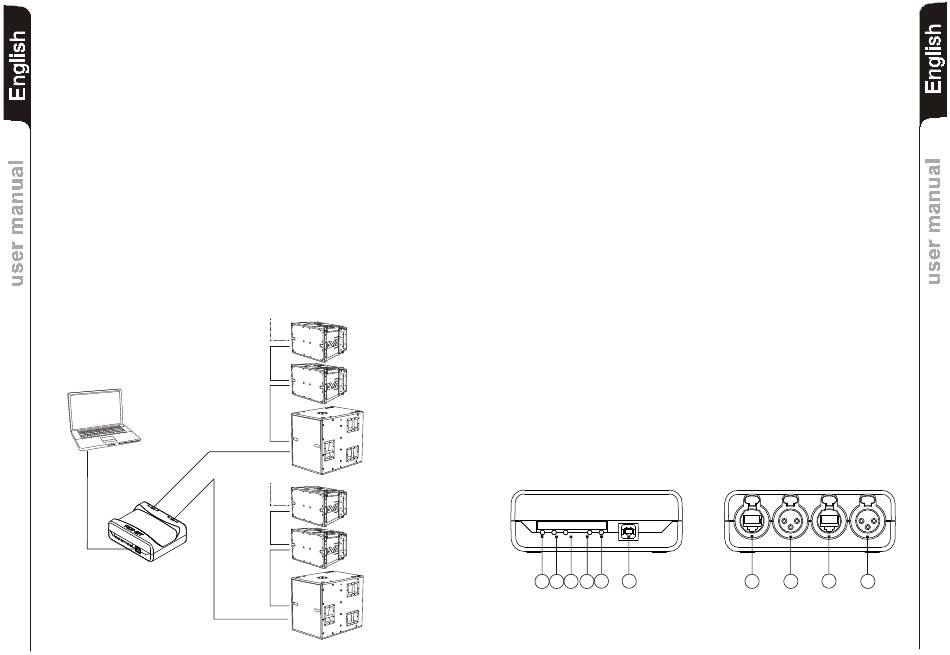

PC
USB
RDNET CONTROL 2
5
The RDNET CONTROL 2 unit can manage up to 2
SOTTORETE 2
(max. 32
per sottorete)
SOTTORETE 1
(max. 32
per sottorete)

CONTROLS AND FUNCTIONS

1) "CH 1" Indicator light
This indicator light, green LED, flashes to indicate data transmission or reception in
the subnet 1.
2) "CH 2" Indicator light
This indicator light, green LED, flashes to indicate data transmission or reception in
the subnet 2.
3) "LINK" Indicator light
This indicator light, green LED, will be used for future applications.
4) "ERROR" Indicator light
This indicator light, red LED, lights up to indicate
reception.
5) "ON" Indicator light
This indicator light, green LED, lights up to indicate
USB.
6) USB Connector
USB type B connector, for computer link, by means of cable provided.
The RDNET CONTROL 2 is powered by USB connector
7) RJ45 Connector - "CH1"
Connector for Subnet 1 RDNET connection
connections refer to "CHANNEL CONNECTIONS" page 19.
If this connector is used DO NOT CONNECT the connector "CH1" XLR socket (8).
8) XLR Connector - "CH1"
Connector for Subnet 1 RDNET connection. For connections refer to "CHANNEL
CONNECTIONS"page 19.
If this connector is used DO NOT CONNECT the connector "CH1" RJ45 socket (7).
9) RJ45 Connector - "CH2"
Connector for Subnet 2 RDNET connection
connections refer to "CHANNEL CONNECTION" below.
If this connector is used DO NOT CONNECT the connector "CH2" XLR socket (10).
10) XLR Connector - "CH2"
Connector for Subnet 2 RDNET connection. For connections refer to "CHANNEL
CONNECTION" below.
If this connector is used DO NOT CONNECT the connector "CH2" RJ45 socket (9).
