Dante Network and System

„
Dante® is a network-audio protocol developed by Audinate.
Dante network system transmits multiple uncompressed digital audio signals over IP networks compatible with Gigabit Ethernet.
For more information on Dante, visit the website below.
www.audinate.com

Accessories

„
• Power cable (USA: 1 pc, EUR/UK: 2 pcs)
• Rubber feet × 4
• Safety information sheet × 1
• Owner's manual (this manual) × 1

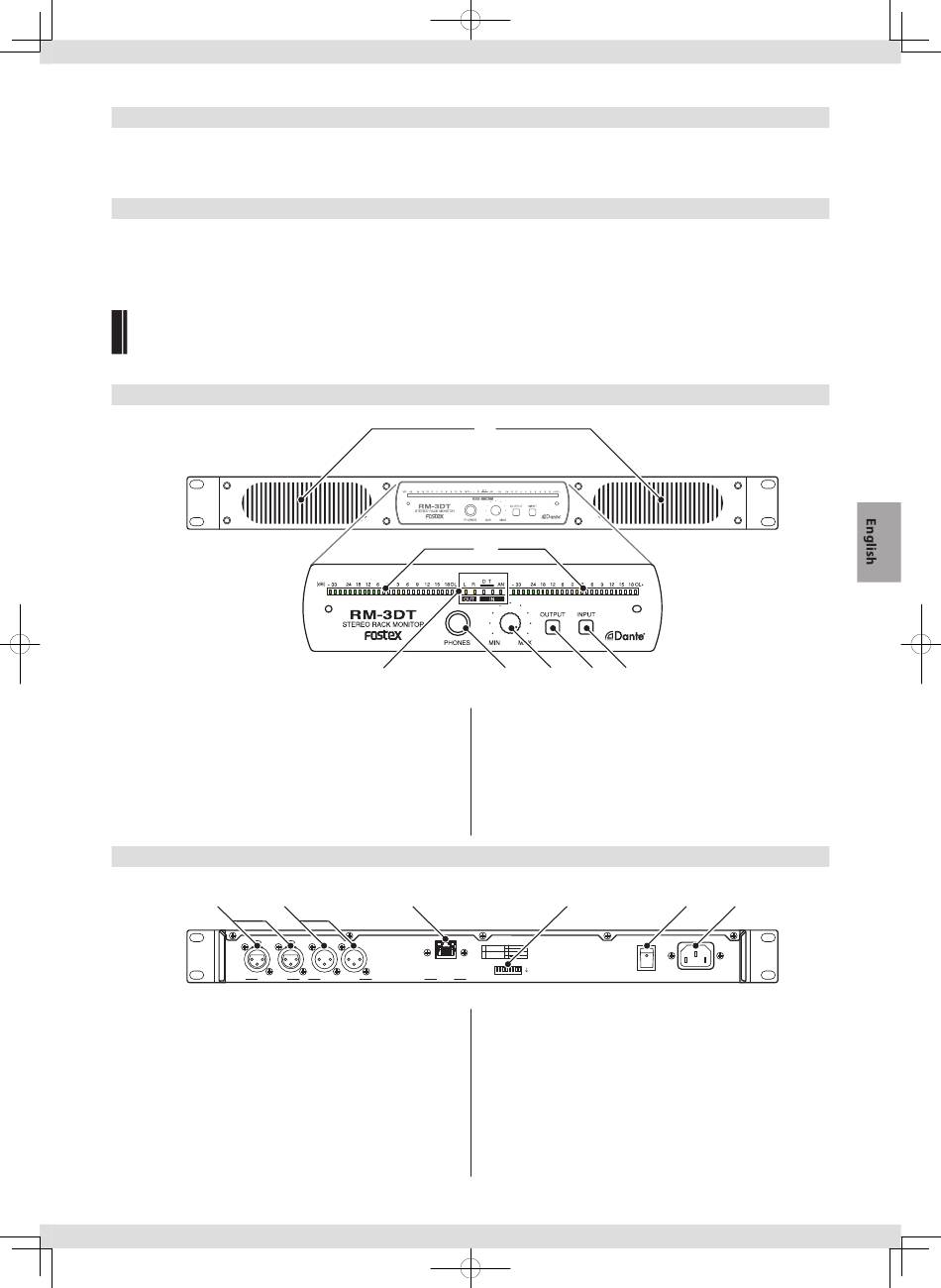

Part names and functions

Front

„
① Speakers
The speakers do not emit any sound while headphones are
connected to the [PHONES] jack.
② Level meter
③ Status display
④ [PHONES] jack
⑤ Volume knob

Back

„
⑨
⑨ [ANALOG INPUT] terminals (XLR)
⑩ [ANALOG THRU OUT] terminals (XLR)
Outputs the signal being input through the [ANALOG INPUT]
(XLR) terminal.
⑪ [Dante IN] terminal
Inputs Dante signals.
Connects a LAN cable (RJ45 type). Use an Ethernet cable with
CAT5e or higher.
⑫ DIP switches
Used to configure various settings (
RM-3DT.indb 3 RM-3DT.indb 3
③
⑩ ⑪
R L R L
ANALOG INPUT ANALOG THRU OUT
 page 4).
①
②
④ ⑤ ⑥ ⑦
⑥ Mute button
Press the button for approximately one second to mute
(  page 6). Cancel mute by briefly pressing the button again.
⑦ [OUTPUT] switch
page 6

⑧ [INPUT] switch
page 6

⑫
1 5 REF LVL
DIMMER
2 6 SOUND
3 METER 7 MUTE
4 PEAK/VU 8
ON
1 2 3 4 5 6 7 8
Dante IN
⑬ [POWER] switch
⑭ [AC IN] terminal
Used to connect to a power outlet using the supplied power
cord.
A grounding type plug has a third grounding prong. The third
prong are provided for your safety.
If the provided plug does not fit into your AC outlet, consult an
electrician for replacement of the obsolete outlet.
Do not use any power cord other than the one supplied.
⑧
⑬ ⑭
ON
OFF
POWER AC IN
3
