Paradox 950 Guide Rapide

SAFE
PROTECTOR
(950)
INSTRUCTIONS
paradox.com
PRINTED IN CANADA - 09/2019 950-BI07
English
Application
The Paradox Safe Protector is designed
for security applications on metallic
cabinets, cash-boxes, safe and metallic
doors. It can also be applied successfully
to protect concrete walls of bank
depositories and other premises requiring
high security protection level.
The Paradox Safe Protector is installed
directly on the protected surface and
reacts to the frequency spectrum of
vibrations caused by surface breaking,
cutting, and heavy knocking by grinders,
electric arc welders, and oxyacetylene
torches. It also reacts to knocking, filing
and drilling on the protected surface.
Since effective operation is contingent on
close contact between the safe protector
and the protected surface, this surface
must be well cleaned prior to installation.
The safe protector should then be tightly
attached to the safeguarded surface with
3 screws.
Installation
1. Remove center screw (A) on safe
protector.
2. Find a clean, dry, flat surface (B) on which
to mount the Paradox Safe Protector.
To reduce false alarms avoid
installation near:
• Electric motors,
transformers, fans, air
conditioners in close
proximity of the safe
protector
• Ultrasonic safe protectors
which may emit a signal
within the frequency range of
the safe protector
3. Install the 3 screws to mount the safe
protector ensuring that the screws are
driven in at a 120 degree angle.
4. Connect a 4 or 6-wire cable to the safe
protector and connect it as follows (see
Figure 2):
Tamper recognition: 1-2
Alarm contacts: 3-4
Power supply (+): 5
Power supply (-): 6
5. Set unit sensitivity according to
application:
100%: No jumper
70%: Jumper on P and Q
50%: Jumper on M and P
30%: Jumper on N and Q
10%: Jumper on M and N
6. Re-install the cover on the safe
protector.
7. Perform functional tests simulating a
burglary signal in the supervised area.
Example: lightly scratch the surface
around the safe protector with a
screwdriver or hit the surface near the
safe protector.
Specifications
• Supply voltage: 10 - 16 Vdc
• Current consumption:
Standby: 16 mA (+/- 10%)
• Alarm: 12 mA (+/- 10%)
• Adjustable sensitivity:
100%: No jumper
70%: Jumper on P and Q
50%: Jumper on M and P
30%: Jumper on N and Q
10%: Jumper on M and N
• Diameter of protected surface: 2.50m
• Alarm relay: 28V/150 mA
• Tamper output: Normally closed
24V/0.2A
• Temperature range: -20°C to +50°C
• Maximum humidity: 95% at 25°C
• Dimensions: 109 x 64 x 23 mm
• Weight: 260 grams

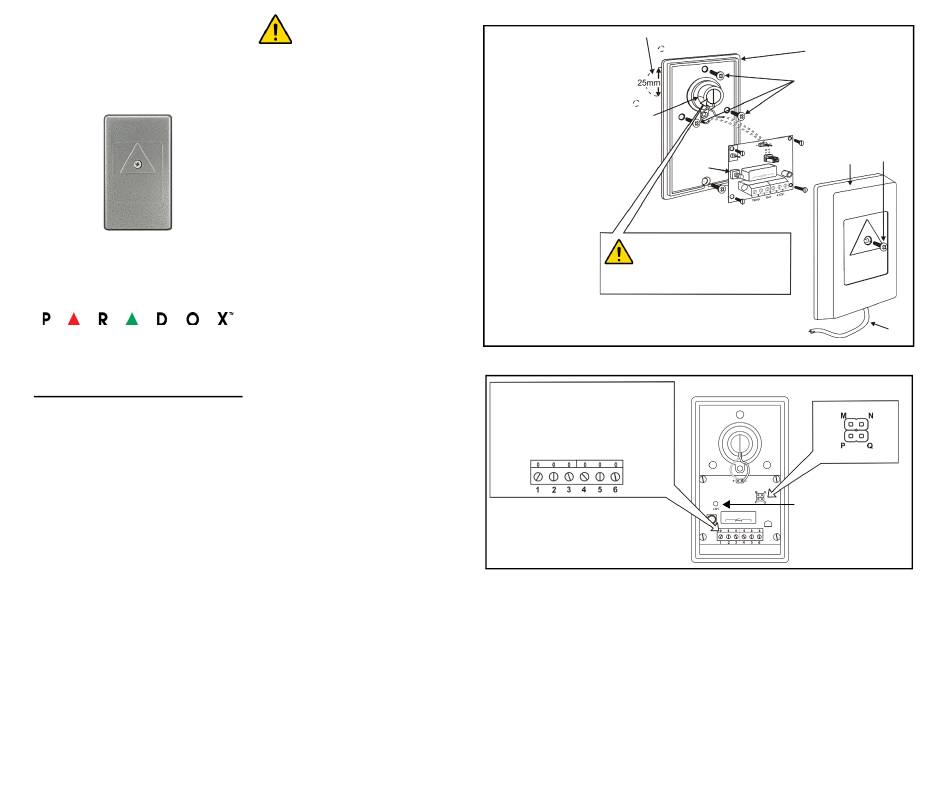

B
A
Closing cover screw
Vis de fermeture du boitier
B
The surface must be well
cleaned and smooth.
La surface doit être propre
H
et lisse.
C
Fixation screw
Vis de fixation
D
Wiring
Câblage
E
Cover
Never try to turn the large
Couvercle
screw-shaped cap on the safe
protector./ Ne jamais tenter de
F
dévisser la vis de fixation de
Anti-tamper switch
la chambre de détection.
Anti-sabotage
G H
Back Detection chamber
Dos Chambre de détection
Connection / Branchement
1-2: Tamper recognition / Contact
alarmes sabotage
3-4: Alarm contacts / Contact alarmes
détection
5: Power supply / Alimentation (+)
6: Power supply / Alimentation (-)
Warranty
For complete warranty information on this product please refer to the Limited Warranty Statement found on the
website paradox.com/terms. Your use of the Paradox product signifies your acceptance of all warranty terms and
conditions.
© 2019 Paradox Security Systems (Bahamas) Ltd. All rights reserved. Specifications may change without prior
notice. One or more of the following US patents may apply: 7046142, 6215399, 6111256, 6104319, 5920259,
5886632, 5721542, 5287111 and RE39406. Canadian and international patents may also apply. Safe Protector is a
trademark or registered trademark of Paradox Security Systems (Bahamas) Ltd. or its affiliates in Canada, the United
States and/or other countries.
Figure 1
G
C
E
F
Figure 2
Jumper / Cavalier
LED: Alarm indication
DEL : Indication d'alarme
A
D
