INNO K106 Instructions D'installation

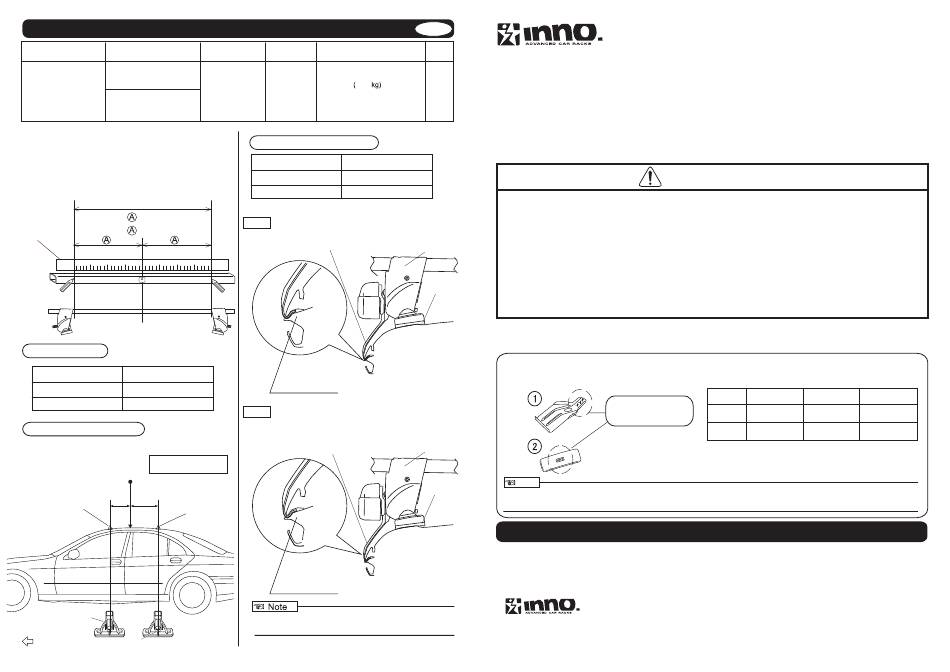

K106 Mounting Method by Vehicle Type
Manufacturer Model
LEGACY
SUBARU
OUTBACK
Maximum loading capacity is
36 kg ( 80 lbs) for this vehicle type.
Stay interior dimensions
ｍｍ
Front 38.9 inch / 990
ｍｍ
Rear 38.3 974
inch /
ｍｍ
Front
19.4 inch / 495
ｍｍ
Rear
19.1 inch / 487
Tape measure
Install Bases
Base number
Front base 401
Rear base 401
Mounting positions
● Position the stays so that bolts align at specified
mounting points.
Gap between front
and rear doors
inch inch
9.8 13.7
ｍｍ ｍｍ
250 350
Rear mounting
Front mounting
position
position
Stay
Bolt
Front of vehicle
Year
Type Maximum loading capacity
80
lbs
36
2000
4 door sedan
-2004
( Load + Base rack
+ Attachments )
Loosely attach hooks
Hook number
Front hook 232
Rear hook 232
■ Hook / base installation position
Front
Hook 232
Weather strip
Rear
Hook
232
Weather strip
● When knob is tightened, base moves slightly outward to the position
illustrated above.
90092071064A
EN
Bikes
2
Before using the Mounting hooks, carefully read the installation instructions as well as the installation
instructions for basic carrier systems, and follow all usage instructions. After reading the installation
instructions, keep it in a safe place along with the installation instructions for basic carrier systems. If you
are to give the mounting hooks to a third person, provide the installation instructions to ensure safe
installation and usage. If you have any questions regarding the installation instructions, contact our
customer service listed below.
Install hooks correctly at specified positions according to the installation instructions herein and the installation instructions for the
applicable carrier system. Installation positions of hooks depend on the vehicle type. If hooks are not installed at specified
positions, the carrier may fall and cause accidents. If the installation instructions appropriate for your vehicle type are not
available, contact our customer service listed below.
Select hooks matching your vehicle by referring to the Fit Guide available at stores or on our website : www.innoracks.com.
Stay If inappropriate hooks are used, the carrier / attachment may fall and cause accidents.
Before driving the vehicle, rock the stays and bars in all directions to ensure that there is no looseness. Retighten any loose
knobs or bolts.
Do not use these hooks for attachments of non-specified types.
The carrier may fall and cause accidents.
Base
401
Observe the specified loading conditions.
Failure to observe the loading condition may cause the carrier to break or loosen and fall, resulting in accidents.
For INNO dedicated ski & snowboard carriers, read the carrier installation instructions to determine proper
mounting locations.
The SU Mounting hooks include the parts listed below. Verify that all of these parts are included in the carrier system you have
purchased. In the event any of these parts are missing, contact our customer service listed below.
Stay
NOTE
Base
401
The specifications or external appearance of this product or any of the genuine spare parts may be changed for improve-
ment without prior notification.
If you have any comments, questions or suggestions, contact our customer service listed below.
Car Mate USA shall not be held liable for any accidents or incidental losses arising from improper installations or usage.
Furthermore, Car Mate USA shall not be held liable for any accidents or incidental losses arising from installation or usage after
the customer has made any modifications to the system's original configuration or specifications.
If you can not find your vehicle on the following page(s), contact us for more information.
Car Mate USA, Inc.
383 Van Ness Ave., Suite 1603,
Torrance, CA 90501 U.S.A.
-US
support@innoracks.com
www.innoracks.com
SU Fit Hooks
Installation Instructions
WARNING
No. Part
Check the numbers.
1 Hook
Base
2
Contact Information
0753-1061B -EN
K106
# of Part Qty
232 4
401 4
11 / 2013
