0.190 TYP
1.690
0.970
1.750

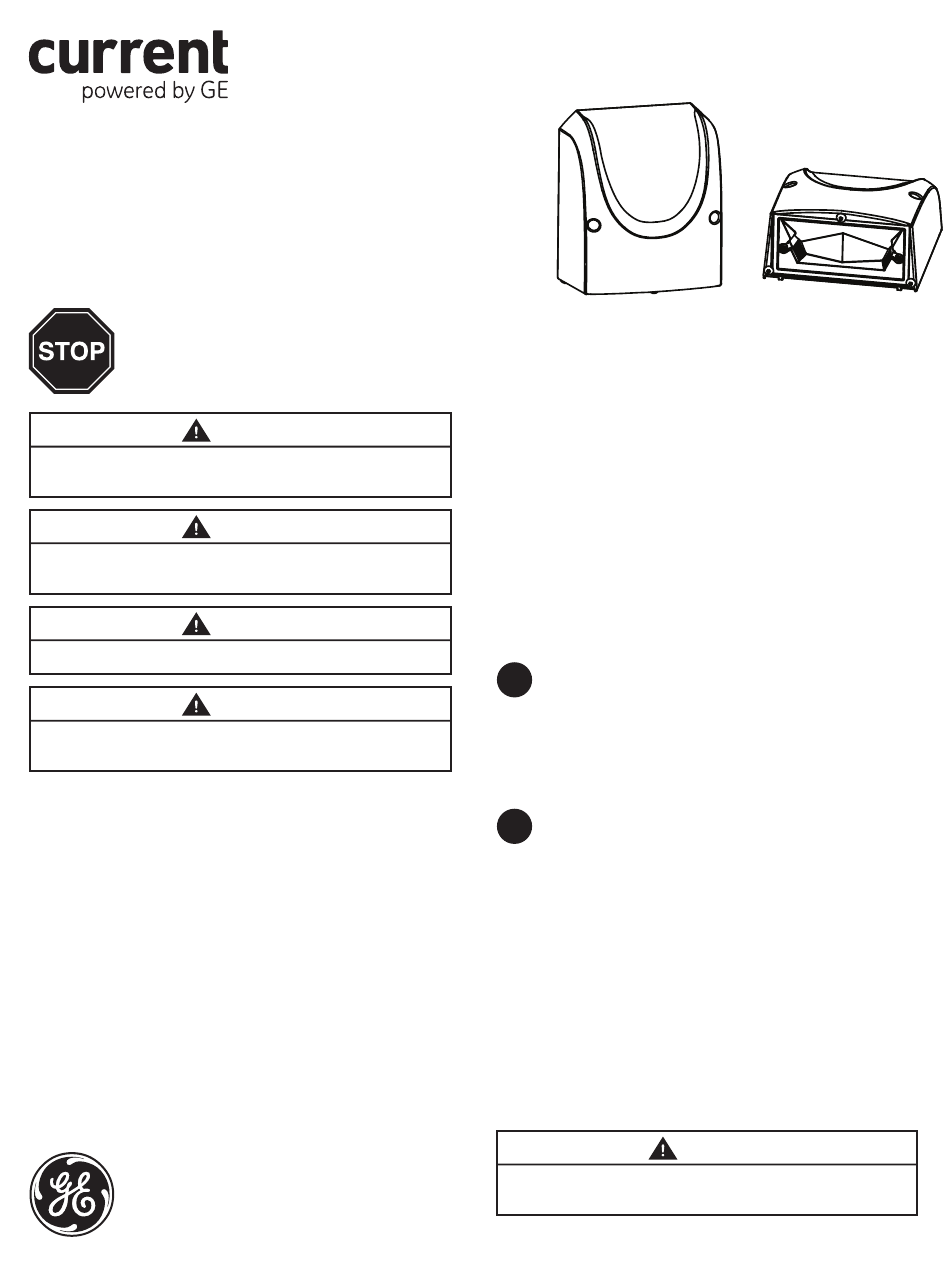

Evolve
(EWL)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
Risk of electrical shock. Disconnect power before servicing
or installing product.
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
0.190
Risk of fire. Use supply wire specified on nameplate.
0.970 1.688
Risk of injury. Wear safety glasses and gloves during
installation and servicing.
1.750
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. This Class [A] Lighting Equipment complies with
Canadian standard ICES-005[A] / NMB-005[A].
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Wall Plate
Housing
LED Wallpack
Gasket
Housing
Housing Gasket
WARNING
Mounting Box
WARNING
WARNING
CAUTION
Wall
Gasket
Wall Gasket
GENERAL
• This luminaire is for outdoor lighting use. Do not
install in areas of limited ventilation or high ambient
temperatures.
• Install and maintain according to this Guide.
Knockout
SPECIFICATIONS
Plug
• Weight: 8.5 lbs. (4 kg)
• Ambient Temperature Range: -40°C to +50°C
• Optical and all Electrical Components IP65
• Button PE Sensitivity:
Fixture on – 3.5Fc
Fixture off – 11.8Fc
1
UNPACKING/HANDLING
• This luminaire has been packed to ensure no damage
during transit. Inspect to confirm.
• Do not impact or stack luminaire after unpacking.
2
WALL PLATE/MOUNTING BOX
• Mount to a 3 ½-in. square or 4-in. octagonal recessed
outlet box.
• Apply nested gasket pair to plate or box as shown in
Figure 1 or 2.
• Temporarily remove Button PE, Motion sensor, or
Transformer if needed to access desired fastener slots.
• Attach plate or box to a grounded outlet box with two
8-32 x 1" (25mm) screws (not provided)
• For surface conduit installations, position the mounting
box and lag-bolt (not provided) into the mounting
surface through the slots provided in the back cover
(Figure 1 or 2).
If using a conduit hub, the hub must be connected to the conduit
before the hub is connected to the enclosure (mounting box).
Installation Guide
GEH-6060
CAUTION
