CUTTING AND REAMING

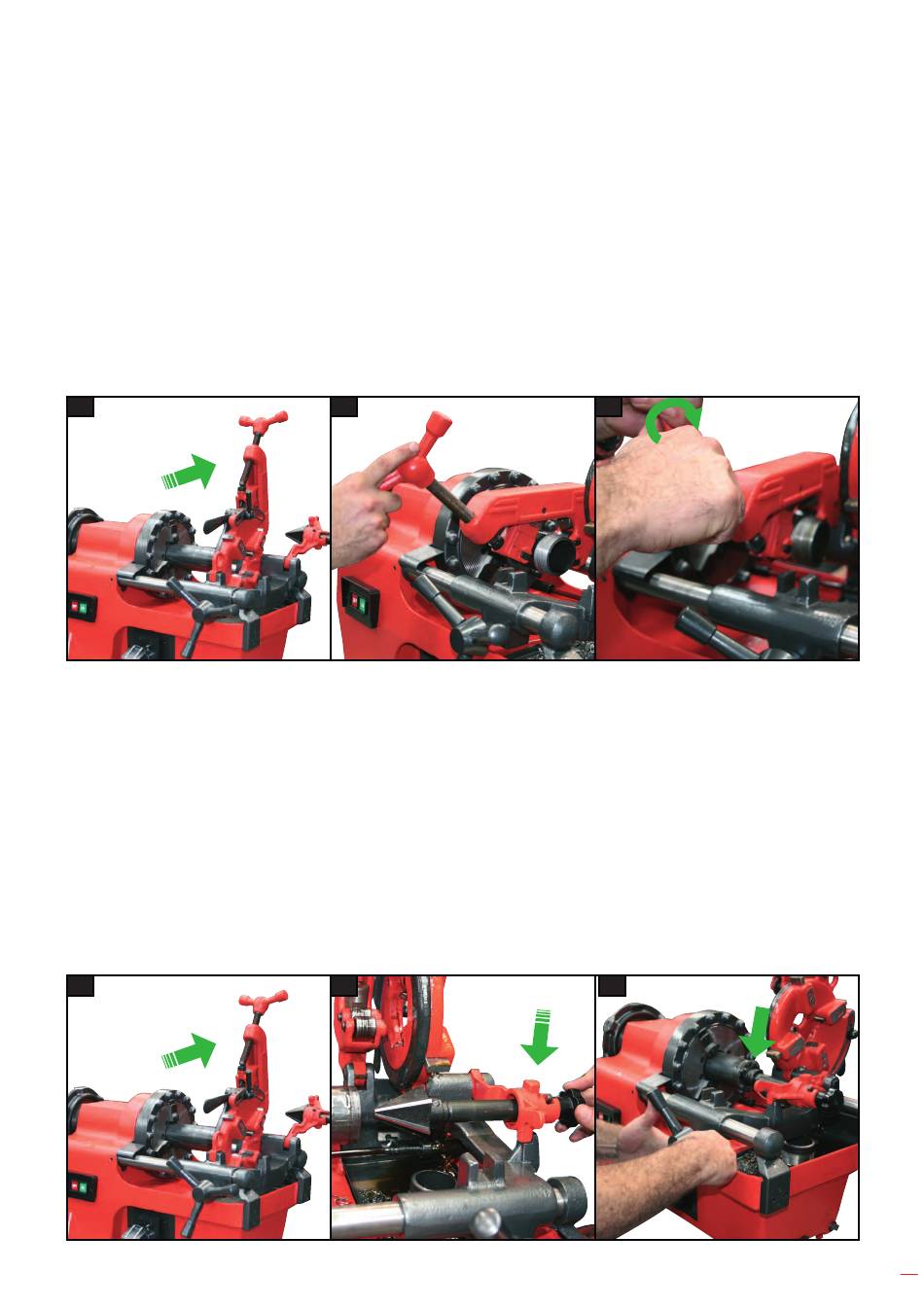

E) CUTTING
E1- Raise reamer and die head out of the pipe.
E2- Lower the cutter to work position and by turning cutter handle open up cutter guide wider than
the width of the pipe.
Move carriage to position where pipe is to be cut.
E3- Cut the pipe turning the cutter handle in each turn of the pipe until cut is completed.
NOTE: take care that the pressure made by the cutting blade isn't excessive. Due to pipe defects
it can cause pipe deformity or bursts in the cutting blade.
E1
F) REAMING
F1- Raise die head and cutter out of the way.
F2- Lower reamer to work position onto the carriage.
Feed the reamer into the pipe and lock it by the reamer interlock.
F3- Move the carriage until the reamer makes contact to the pipe, pressing it until the belbel is
completed.
F1
E2
F2
E3
F3
