Steering Angle - R2 RACING WHEEL PRO Mode D'emploi

Delete all settings
• Press and hold the „OPTIONS/10/MENU/+ (depending on the system)" keys for 4 seconds
until the red LED lights up.
• All self-defined key functions are deleted and the sensitivity is reset to the High level.

Steering angle

Setting
The rotation switch for 900 and 270 degrees, must be set to „900°" for this.
• Press the „PROG" key once, then the red LED flashes quickly.
• Turn the steering wheel from the center position to the left or right at any angle greater than
60°, then hold it still.
• Then press the „OPTIONS/10/MENU/+ (depending on the system) " keys once until the LED
lights up. The current position is then the MA X throw angle configured by it.
Cancel setting again
There are two ways to cancel the angle configuration:
a. Press the „PROG" key once once, whereupon the red LED flashes quickly. Then press and
hold the „OPTIONS/10/MENU/+ (depending on the system)" keys for 4 seconds to clear the
steering angle configuration.
b. Press the „PROG" button once, then the red LED will flash rapidly. Then turn the steering
wheel from the center position to the left or right direction with the MAX angle (900°); press
the „OPTIONS/10/MENU/+ (depending on the system)" buttons again, the LED will light up
and the angle will be back to 900°.
Pedal unit
The unit is equipped with three pedals and is compatible with games that support this
function.
The left pedal is the clutch, the middle pedal is the brake and the right pedal is the gas. If a
game does not support the clutch function, only the gas and brake functions can be used.
Clutch
1
Brake
2

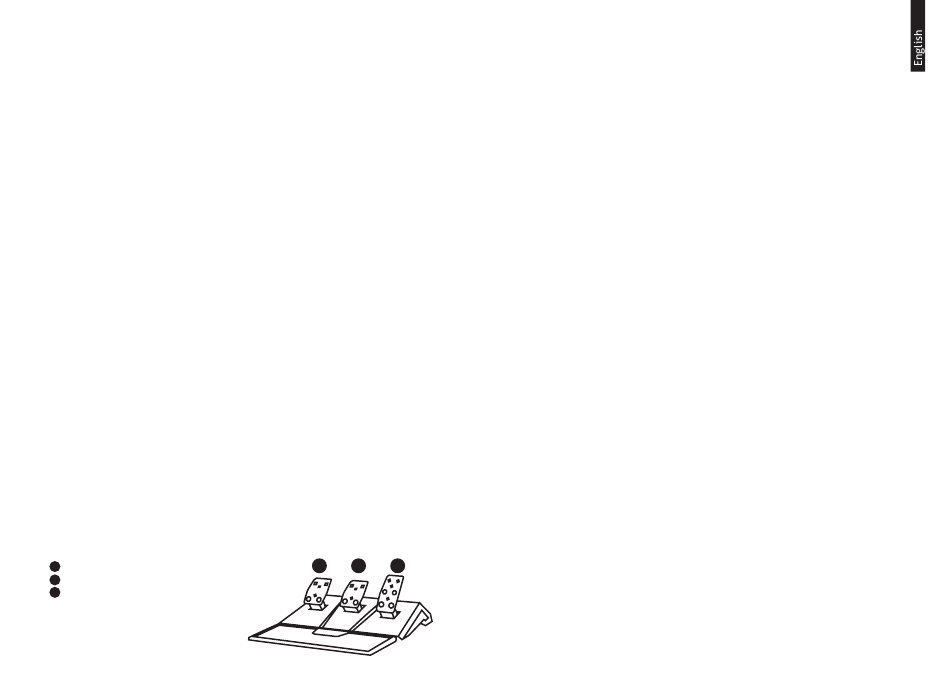

3 Gas
18
1 2 3
Switching unit
This unit is only to be used for games that also support this function.
• The MODE switch can be turned to the six-speed shift position; when the switch is OFF, the
six-speed shift positions are set to 1, 2, 3, 4, 5, 6 and R.
• When the switch is ON, the six-speed shift positions are set to 7, 8, 9, 10, 11, 12, and R in PC
mode only.
• When the handbrake switch is OFF, the handbrake is disabled; when the handbrake switch is
ON, the handbrake is enabled.
• If the game/software does not support the handbrake function, please go to the
programming settings to assign the button by following the steps below:
1. switch off the handbrake.
2. press PROG. key, the LED flashes quickly.
3. switch on the handbrake, then switch it off again, the LED flashes slowly.
4. press mapping key, the LED lights up.
The setting is completed.
Connect with
PS3 TM
Plug the cables of the pedals and the six-speed shifter as a complete set into the correspon-
ding interfaces of the steering wheel; turn on your PS3™, and then plug the main cable of the
steering wheel into the USB port of the PS3™.
• After booting, the steering wheel's LED indicator will light up and the PS3™ will automati-
cally distribute a channel for the steering wheel.
• You can now start the game or enter the appropriate configurations.
• You can press the Home button once to enter the XBM configuration when playing a game
that can display the current controller player.
Or you can press and hold the Home button for 2 seconds to bring up the shutdown settings.
PS4 TM
Descriptions of the modes:
1. Controller/Gamepad mode: Connect the steering wheel to the console without the
switch unit. („PS4 Need for Speed" series only supports controller/gamepad mode.
Please do not connect a switch unit. )
2. Steering Wheel Mode: Connect the Switch Unit to the steering wheel before
connecting the steering wheel to the console.
