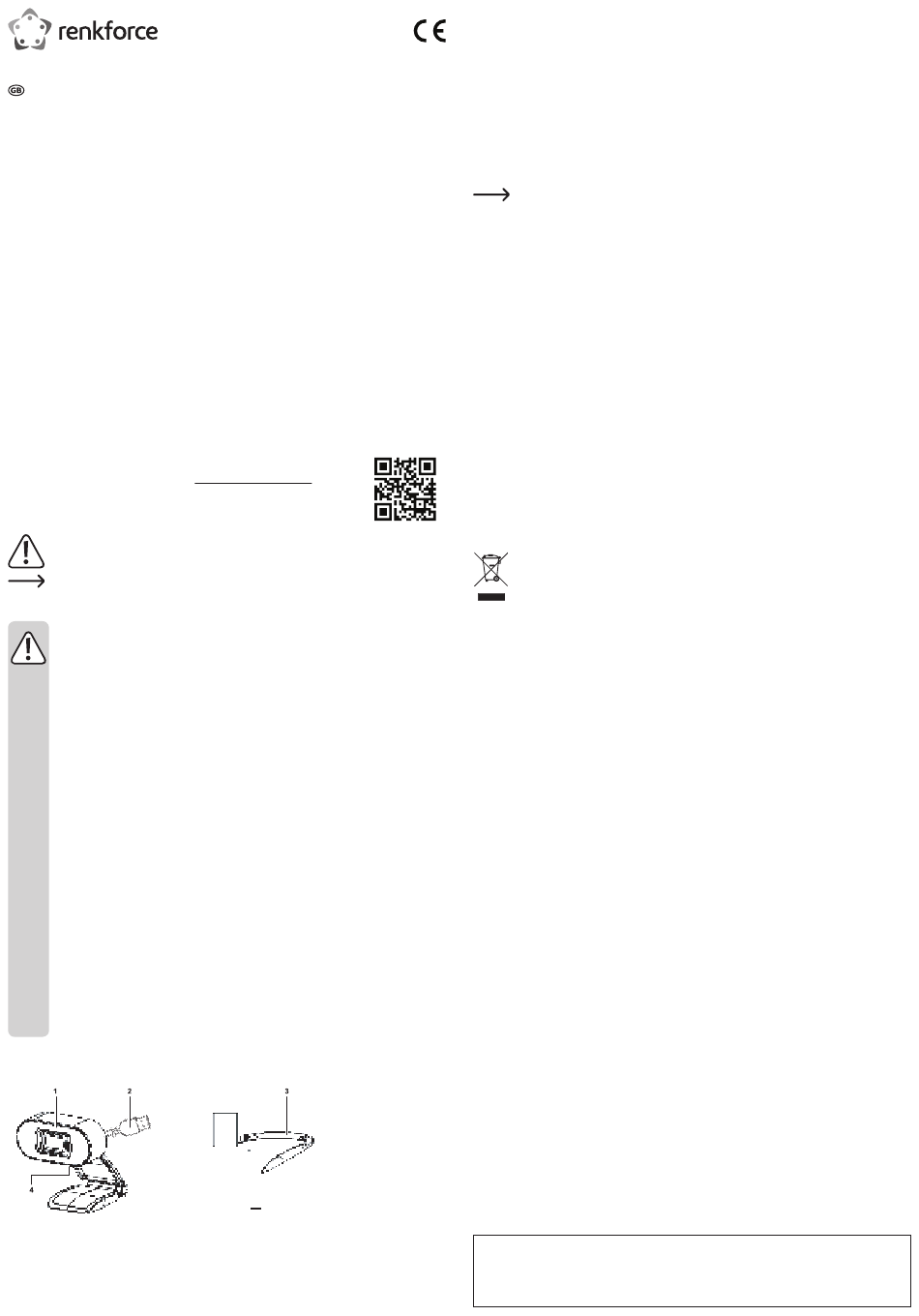

Operating Instructions
Webcam
Item No. 1601925 / FULL WEBCAM RF-WC720P
Item No. 1923819 / FULL-HD WEBCAM RF-WC1080P
Intended Use
This plug and play device provides 720P (Item No. 1601925)/Full HD 1080P (Item No. 1923819) video
quality with a built in microphone for clear audio. It connects to the USB port on your computer and has a
versatile desktop or laptop mounting system.
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in bathrooms, must be
avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product
for purposes other than those described above, the product may be damaged. In addition, improper use can
result in short circuits, fires or other hazards. Read the instructions carefully and store them in a safe place.
Make this product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements.
All company names and product names are trademarks of their respective owners. All rights reserved.
Delivery Content
• Webcam
• Driver CD (item No. 1601925)
• Operating instructions
Up-to-date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the
QR code shown. Follow the instructions on the website.
Explanation of Symbols
The symbol with the exclamation mark in the triangle is used to indicate important information in
these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety Instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dangerous playing
material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it
from any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
• Also observe the safety and operating instructions of any other devices which are connected
to the product.
• Consult an expert when in doubt about the operation, safety or connection of the appliance.
• Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
• If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.
• If the device gets hot after prolonged use, exit the camera application and let it cool before
using it again.
Operating Elements
1
Lens cover
2
USB connection cable
3
Desktop stand / laptop mount
4
Microphone
Operation
a) Plug and Play
• Connect the device to a USB port (min. USB 2.0) on your computer.
• Windows
®
automatically starts the installation of the required drivers. Follow the on-screen instructions.
- In case you experience problems, refer to your computer support guide.
• Check that the following items were installed:
- USB Video Device (for camera image manipulation)
- AMCap (for video capturing)
• Run your desired webcam application.
b) Software (Item No. 1601925)
Note that the operating system or your preferred webcam software may prevent you from using
two video capturing software at the same time.
AMCap:
• Start it through the Windows
®
Start menu.
• Use it to capture video footage and save it to your harddrive.
• Refer to the online documentation for more information.
c) Image extrapolation (Item No. 1601925)
The supplied driver CD contains image extrapolation software with which you can extrapolate the camera
image up to 4608 x 3456 px (approx. 16 MP). Extrapolation is limited to still images, such as snap shots.
• Insert the driver CD into your computer's DVD drive.
• Double click the executable ending in .exe. Follow the on-screen instructions.
- Select "Automatically run USB Video Device when you start up the computer" to start up USB
Video Device upon start of the computer.
• Once the installation finishes, the maximum resolution for still images is 4608 x 3456 px.
Care and Cleaning
• Disconnect the product from the mains before each cleaning.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause
damage to the housing and malfunctioning.
• Clean the product with a suitable dry, fibre-free cloth, taking care not to scratch the lens cover.
Disposal
Electronic devices are recyclable waste and must not be disposed of in the household waste.
At the end of its service life, dispose of the product in accordance with applicable regulatory
guidelines.
You thus fulfill your statutory obligations and contribute to the protection of the environment.
Technical Data
Input voltage / current ........................... 5 V/DC (via USB), min. USB 2.0
Power consumption .............................. max. 150 mA (Item no. 1601925)
max. 280 mA (Item no. 1923819)
Material ................................................. Head: Aluminium, Base: plastic
Microphone ........................................... built-in
Lens ...................................................... Fixed-focus (Item no. 1601925)
Autofocus (Item no. 1923819)
Viewing angle ....................................... 50° (Item no. 1601925)
65° (Item no. 1923819)
Resolution ............................................. 1280 x 720, 30 fps (Item no. 1601925)
1920 x 1080, 30 fps (Item no. 1923819)
Extrapolation ......................................... 4608 x 3456 px (approx. 16 MP) via software (item no. 1601925)
Video codec .......................................... MJPG, YUY2
System requirements ............................ Windows
DirectX 9.0 VGA
Operating conditions ............................. 0 to 40 °C, 5 – 80 % relative humidity
Storage conditions ................................ 0 to 70 °C, 5 – 80 % relative humidity
Cable length ......................................... 148 cm
Dimensions (W x H x D) ....................... 57 x 30 x 82 mm
Weight .................................................. 95 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights
including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represent the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE.
®
XP 32/64 bit and higher;
*1923819_v2_0419_02_dh_m_4L
