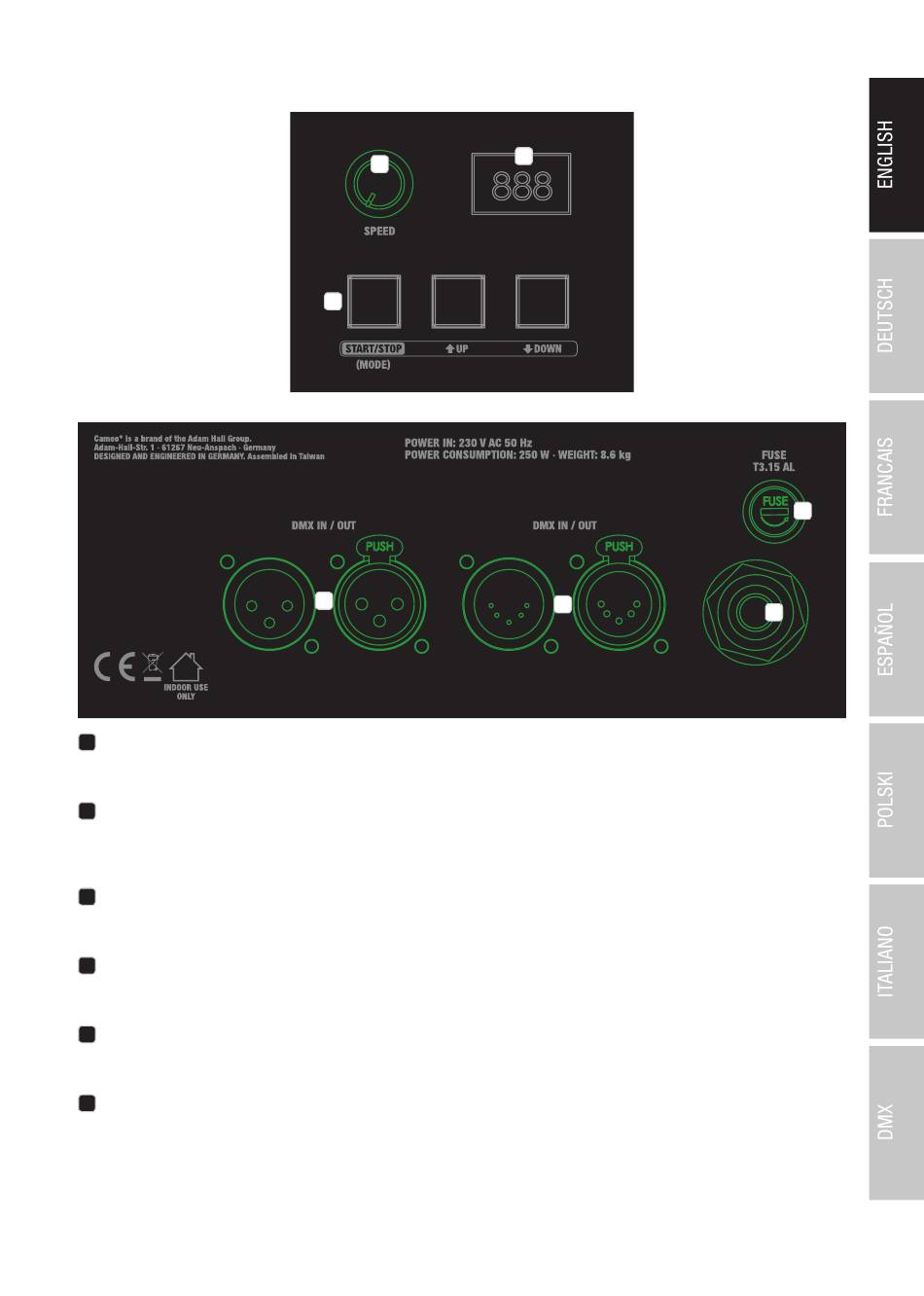

CONNECTIONS, CONTROL AND DISPLAY ELEMENTS

POWER IN
1
Permanently connected power cable with CEE 7/7 power plug.
FUSE
2
Fuse holder with fuse. IMPORTANT INFO: Replace the fuse only with a fuse of the same type and values according to the imprint on the
device! If a fuse trips repeatedly, please contact an authorized service center.
DMX IN / OUT
3
3-pin XLR connector (male = IN / female = out) to connect a DMX control device and transmit the DMX control signal.
DMX IN / OUT
4
5-pin XLR connector (male = IN / female = out) to connect a DMX control device and transmit the DMX control signal.
LED DISPLAY
5
The three-digit LED display shows the DMX address and menu options for manual control.
CONTROL KEYS
6
START/STOP (MODE): Starts and stops manual mode. Activates and deactivates control via RF remote control.
UP and DOWN: Configure DMX address.
