The range of the operation between the doorbell and its push-button depends on surrounding conditions.
It is recommended to test the device in a selected place before installation to make sure that its range of operation
is not limited.
The operational range of the doorbell can be limited by walls, ceilings, metal surfaces, appliances of the same
frequency, close proximity of electrical motors, transformers, power packs, computers, etc.
Fig. 2 Doorbell
installation
Place the doorbell (its
receiver) in the socket
simply by plugging it
in.
The doorbell will
generate a sound
signal and all LEDs
will be flashing.
SELECTION OF DOORBELL SOUND
1. Press the button on the receiver. Select the desired bell sound from 25 available melodies.
The selected sound will be played once to test it.
SOUND SIGNAL VOLUME
1. Press the button on the receiver. Select the desired volume level (high, medium, low). It is
set by default for medium.
MUTE
1. Press the button on the receiver. The doorbell sound is OFF and the blue LED next to the
MUTE button will illuminate continuously.
CODING
Thanks to the use of the learning system it is possible to extend the set by additional transmitters
and doorbells.
1. If you want to log an additional push-button press and hold the mute push-button on the
doorbell for about 3 seconds. When the illuminating LED starts flickering press a new push-
button. At that time the doorbell will ring. After 30 seconds the sync mode will be left and both
push-buttons, the original and the new one will interact with the doorbell.
2. If you wish to log an additional doorbell press and hold the mute push-button on the doorbell
for about 3 seconds. Leave the system for 30 seconds until it leaves the coding mode. After
that, once the push-button is pressed, both doorbells will ring, the original and the new one.
RESET OD THE SYSTEM
If the doorbell signal interferes with other signals of radio frequencies the system can be reset by
pressing the mute, volume adjustment, and melody push-buttons simultaneously and holding them
pressed down for about 3 seconds. When LEDs start flashing wait about 30 seconds to leave. Then
repeat the steps as above to encode the push-buttons with the doorbells.
INSTALLATION

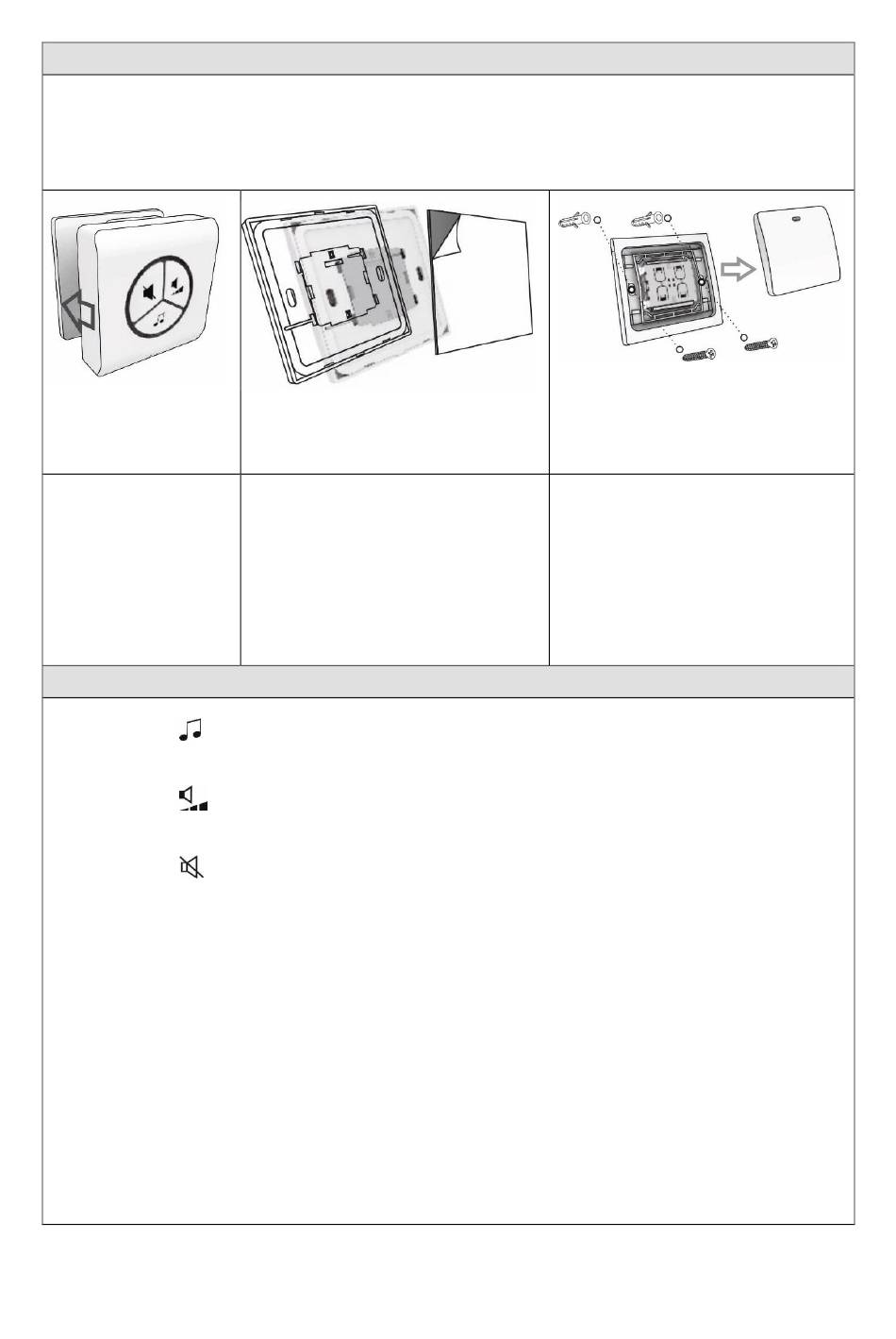

Fig. 3 Push-button installation –
method 1
Use self-adhesive tape on a clean.
flat, and smooth surface.
OPERATION
Fig. 4 Push-button installation –
method 2
Remove the frame and the front
cover of the push-button.
Insert the rawlplugs for the
installation of the rear push-button
side in the selected place.
Secure the push-button on the rear
side catch.
